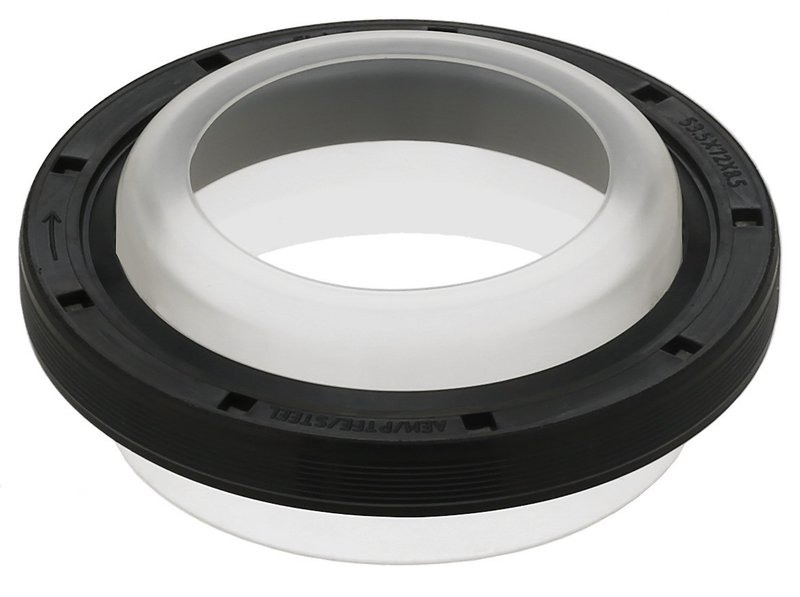

Elring 868.600 Engine Crankshaft Seal - Front

Elring 868.600 Crankshaft Seal Overview

Elring 868.600 is an engine crankshaft seal built with PTFE and ACM materials for sealing performance at the crankshaft. It features a 53.0 mm inside diameter, 72.0 mm outside diameter, 7.5 mm thickness, and a dust lip for added protection against contamination.

This crankshaft seal cross-references MAHLE JV5022 and National 100470 for the same application.

Key Features

• PTFE (polytetrafluoroethylene) and ACM (polyacrylate rubber) construction
• 53.0 mm inside diameter, 72.0 mm outside diameter, 7.5 mm thickness
• Dust lip helps block dirt and debris at the seal area
• Radial shaft seal design: ASW
• Swirl type: RD, right-hand twist
• Engine crankshaft seal for front or N/A positions depending on application
• Elring part number 868.600 for direct catalog lookup

Detailed Description

Built for a wide range of GM applications, Elring 868.600 is used on vehicles such as Chevrolet Corvette, Silverado, Tahoe, Camaro, Express, and GMC Sierra, Yukon, and Savana models across multiple years. The seal dimensions and right-hand twist design are important for proper crankshaft sealing, especially on engines that require a precise OE-style fit.

With PTFE and ACM materials, this seal is specified for crankshaft sealing where resistance to heat, oil exposure, and wear matters. The dust lip adds another layer of protection at the sealing surface, helping maintain a cleaner interface around the crankshaft.

What This Part Helps Address

• Engine oil leakage at the crankshaft seal area
• Contamination entering the seal lip from road debris and dust
• Seal wear caused by age, heat, and oil exposure
• Improper sealing from a damaged or hardened crankshaft seal
• Service replacement needs on GM front-engine applications

Installation Notes and Tips

• Verify the seal dimensions before installation: 53.0 mm ID, 72.0 mm OD, 7.5 mm thickness.
• Confirm the application-specific position and engine configuration before ordering.
• Inspect the crankshaft sealing surface for grooves, scoring, or contamination before installing the new seal.
• Follow the correct installation direction for the right-hand twist swirl design.
• Use clean handling practices to avoid damaging the PTFE sealing lip during installation.

Quality Assurance

Elring manufactures sealing components for engine service applications, and this crankshaft seal is built to the listed dimensional and material specifications for accurate catalog matching. Part number 868.600 is a direct reference for fitment verification on supported Chevrolet and GMC vehicles.
