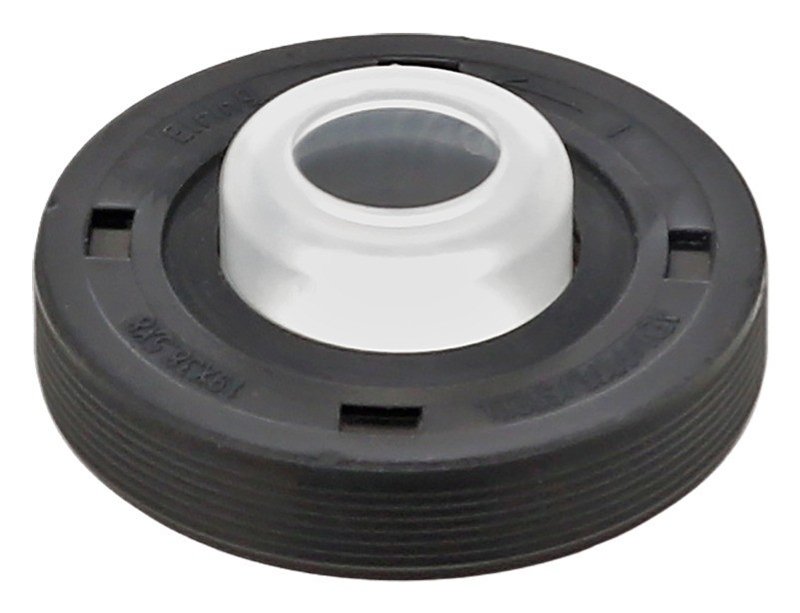

Elring 875.480 Engine Crankshaft Seal

Elring Crankshaft Seal for Volvo and LR2

Elring part number 875.480 is an engine crankshaft seal built with PTFE and ACM materials for controlled sealing at the crankshaft. It features an 8.0 mm thickness, 19.0 mm inside diameter, 38.5 mm outside diameter, and a dust lip to help manage contamination at the seal edge.

Compatible with select Volvo S60, V60, XC60, S80, XC70, XC90, V70, and Land Rover LR2 applications, this seal is specified for right-hand twist use and should be installed according to the mounting information for the engine.

Key Features

• Elring engine crankshaft seal, part number 875.480
• PTFE and ACM sealing materials for crankshaft sealing performance
• 19.0 mm inside diameter, 38.5 mm outside diameter, 8.0 mm thickness
• Dust lip design for added protection at the sealing surface
• Radial shaft seal design: ASW
• Swirl type: RD, right-hand twist
• Cross-reference: This part cross-references 30 711 317 for the same application.

Detailed Description

Elring 875.480 is an engine crankshaft seal designed around precise dimensional requirements and sealing-material selection. The PTFE/ACM construction supports crankshaft sealing where stable contact, oil control, and contamination resistance are important. The dust lip adds an extra barrier at the seal edge, while the ASW radial shaft seal design and RD swirl type indicate the installation orientation required for proper operation.

This seal is listed for 2011-2016 Volvo S60, 2015-2016 Volvo V60, 2010-2016 Volvo XC60, 2007-2015 Volvo S80, 2008-2015 Volvo XC70, 2007-2014 Volvo XC90, 2008-2012 Land Rover LR2, and 2008-2010 Volvo V70. For Volvo S60, Volvo XC60, and Volvo XC90 engine service, confirm the mounting information and seal dimensions before installation. Elring 875.480 is also a direct reference point for service work where the original seal specification calls for this size and twist direction.

Common Problems This Seal Addresses

• Engine oil leakage at the crankshaft seal area
• Contamination entering the sealing zone around the crankshaft
• Seal wear from incorrect material selection or aging
• Improper sealing caused by incorrect dimensions or twist direction
• Repeat leaks after prior crankshaft seal service

Installation Notes and Tips

Observe the mounting information before installation. Verify the 19.0 mm inner diameter, 38.5 mm outer diameter, and 8.0 mm width against the removed part and the engine specification. Clean the sealing surface thoroughly, inspect the crankshaft area for wear or damage, and install the seal in the correct right-hand twist orientation. For Volvo S80, Volvo XC70, and Land Rover LR2 applications, confirm the engine variant and seal location before final assembly.

Quality Assurance

Elring is a recognized name in engine sealing systems, and this crankshaft seal is built to match the listed dimensional and material requirements for the specified applications. Part number 875.480 is intended for service work where accurate fitment and correct seal orientation are essential.
