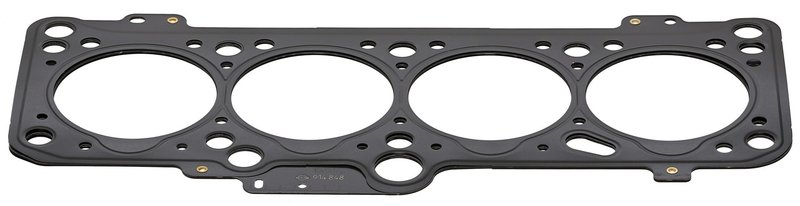

Elring 914.848 Engine Cylinder Head Gasket
| Brand | Elring 914.848 |
|---|---|
| Additionally required articles (article numbers) | 819.824 |
| Diameter [Mm] | 81 |
| Gasket Design | Multilayer Steel (MLS) |
| Installed Thickness [Mm] | 1.53 |
| Number Of Holes | 1 |
| Piston Protrusion From [Mm] | 0.66 |
| Piston Protrusion To [Mm] | 0.86 |
| Thickness | 1.53 |
| Fits | Volkswagen · 17 vehicles |
MLS construction. Provides a durable sealing surface for the engine cylinder head gasket.
Precision thickness. 1.53 mm thickness helps maintain consistent sealing performance.
Engine sealing part. Built for dependable sealing in the gasket and sealing systems category.
Cross-references MAHLE 54434, 028 103 383 BH and 30-028545-00 for the same application. See all 15.
Elring 914.848 Cylinder Head Gasket
The Elring 914.848 engine cylinder head gasket is a multilayer steel (MLS) sealing solution for select Volkswagen and Audi applications. It is specified with an installed thickness of 1.53 mm and an 81 mm diameter, making it a precise choice for engines that require controlled piston protrusion and reliable combustion sealing.
Compatible With 1993-1997 Volkswagen Golf, 1993-1996 Volkswagen Passat, 1993-1995 Volkswagen Jetta, 1997 Volkswagen Passat, 1998-1999 Volkswagen Golf, and 1989-1990 Audi 80. This Elring 914.848 gasket is also cross-referenced to MAHLE 54434 for the same application.
Key Features
- Multilayer steel (MLS) gasket design for cylinder head sealing
- Installed thickness: 1.53 mm
- Diameter: 81 mm
- Piston protrusion range: 0.66 mm to 0.86 mm
- One-hole specification for the listed application
- Elring 914.848 part number for accurate ordering and identification
Detailed Description
Built for engine sealing service, this Elring cylinder head gasket is matched to the listed Volkswagen Golf, Volkswagen Passat, Volkswagen Jetta, and Audi 80 applications by thickness, bore diameter, and piston protrusion range. The MLS construction helps maintain a consistent seal at the cylinder head interface, which is critical when servicing engines that depend on exact dimensional matching. Use the Elring 914.848 when the engine specification calls for 1.53 mm installed thickness and 81 mm diameter.
Common Issues This Part Addresses
- Loss of cylinder compression from a worn or failed head gasket
- Coolant or combustion gas leakage at the cylinder head joint
- Oil seepage between the cylinder head and engine block
- Sealing problems after cylinder head service or engine rebuild work
- Incorrect gasket thickness selection for the specified piston protrusion range
Installation Notes and Tips
Verify piston protrusion before installation and confirm it falls within the listed 0.66 mm to 0.86 mm range. Match the gasket to the engine’s required 1.53 mm installed thickness and 81 mm diameter before assembly. Clean the mating surfaces thoroughly, inspect the cylinder head and block for flatness, and follow the vehicle manufacturer’s torque sequence and tightening specifications during installation.
Quality Assurance
Elring is a recognized name in engine sealing systems, and this gasket is built to the dimensional requirements listed for the confirmed applications. Part number 914.848 helps ensure the correct cylinder head gasket is selected for the specified Volkswagen and Audi engines.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 1999 | Volkswagen | Golf | GL | Hatchback | FWD | 1.9L | L4 | — | N/A | — |
| 1998 | Volkswagen | Golf | — | — | — | 1.9L | L4 | DIESEL | N/A | — |
| 1997 | Volkswagen | Golf | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.53mm; Diameter: 81mm; Piston protrusion from: 0.66mm; Piston protrusion to: 0.86mm |
| 1997 | Volkswagen | Passat | — | — | — | 1.9L | L4 | DIESEL | N/A | — |
| 1996 | Volkswagen | Golf | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.53mm; Diameter: 81mm; Piston protrusion from: 0.66mm; Piston protrusion to: 0.86mm |
| 1996 | Volkswagen | Passat | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.53mm; Diameter: 81mm; Piston protrusion from: 0.66mm; Piston protrusion to: 0.86mm |
| 1995 | Volkswagen | Golf | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.53mm; Diameter: 81mm; Piston protrusion from: 0.66mm; Piston protrusion to: 0.86mm |
| 1995 | Volkswagen | Jetta | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.53mm; Diameter: 81mm; Piston protrusion from: 0.66mm; Piston protrusion to: 0.86mm |
| 1995 | Volkswagen | Passat | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.53mm; Diameter: 81mm; Piston protrusion from: 0.66mm; Piston protrusion to: 0.86mm |
| 1994 | Volkswagen | Golf | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.53mm; Diameter: 81mm; Piston protrusion from: 0.66mm; Piston protrusion to: 0.86mm |
| 1994 | Volkswagen | Jetta | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.53mm; Diameter: 81mm; Piston protrusion from: 0.66mm; Piston protrusion to: 0.86mm |
| 1994 | Volkswagen | Passat | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.53mm; Diameter: 81mm; Piston protrusion from: 0.66mm; Piston protrusion to: 0.86mm |
| 1993 | Volkswagen | Golf | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.53mm; Diameter: 81mm; Piston protrusion from: 0.66mm; Piston protrusion to: 0.86mm |
| 1993 | Volkswagen | Jetta | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.53mm; Diameter: 81mm; Piston protrusion from: 0.66mm; Piston protrusion to: 0.86mm |
| 1993 | Volkswagen | Passat | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.53mm; Diameter: 81mm; Piston protrusion from: 0.66mm; Piston protrusion to: 0.86mm |
| 1990 | Audi | 80 | Base | Sedan | FWD | 2.0L | L4 | — | N/A | — |
| 1989 | Audi | 80 | Base | Sedan | FWD | 2.0L | L4 | — | N/A | — |
