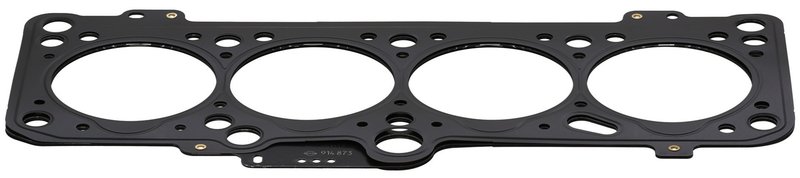

Elring 914.873 Engine Cylinder Head Gasket
| Brand | Elring 914.873 |
|---|---|
| Thickness | 1.61 |
| Additionally required articles (article numbers) | 819.824 |
| Diameter [Mm] | 81 |
| Gasket Design | Multilayer steel (mls) |
| Installed Thickness [Mm] | 1.61 |
| Number Of Holes | 3 |
| Piston Protrusion From [Mm] | 0.93 |
| Piston Protrusion To [Mm] | 1.02 |
| Fits | Volkswagen · 17 vehicles |
MLS construction. Multilayer steel design helps maintain a reliable seal under pressure.
Precision thickness. 1.61 mm installed thickness supports consistent sealing performance.
Engine gasket. Built for cylinder head sealing in the engine sealing system.
Cross-references MAHLE 54436, 028 103 383 BK and 30-028547-00 for the same application. See all 13.
Elring 914.873 Cylinder Head Gasket
The Elring 914.873 engine cylinder head gasket is a multilayer steel (MLS) gasket built for precise sealing in compatible Volkswagen and Audi applications. With an installed thickness of 1.61 mm and an 81 mm diameter, it is specified for engines requiring careful piston protrusion matching.
Compatible With 1993-1997 Volkswagen Golf, 1993-1996 Volkswagen Passat, 1993-1995 Volkswagen Jetta, 1997 Volkswagen Passat, 1998-1999 Volkswagen Golf, and 1989-1990 Audi 80 applications listed below.
Key Features
- Elring part number 914.873 for engine sealing service
- Multilayer steel (MLS) gasket design for cylinder head sealing
- Installed thickness: 1.61 mm
- Diameter: 81 mm
- Three-hole specification
- Requires additional article 819.824
- Piston protrusion range: 0.93 mm to 1.02 mm
Detailed Description
This Elring 914.873 cylinder head gasket is specified for Volkswagen Golf, Volkswagen Passat, Volkswagen Jetta, and Audi 80 engine applications where MLS construction and exact thickness selection are required. The 1.61 mm installed thickness and 81 mm diameter help match the engine’s sealing and compression requirements, while the piston protrusion range provides the measurement window needed for correct gasket selection. This part cross-references MAHLE 54436 for the same application.
What This Gasket Helps Address
- Coolant leakage at the cylinder head sealing surface
- Compression loss from a compromised head gasket
- Combustion gas seepage into the cooling system
- Oil and coolant mixing caused by sealing failure
- Repair needs after cylinder head service on listed Volkswagen and Audi engines
Installation Notes and Tips
- Verify piston protrusion before installation and confirm it falls within 0.93 mm to 1.02 mm.
- Use the required additional article 819.824 during the repair.
- Confirm the engine’s gasket thickness requirement matches 1.61 mm.
- Clean and inspect the cylinder head and engine block sealing surfaces before assembly.
- Follow the vehicle manufacturer’s torque sequence and tightening specifications.
Quality Assurance
Elring is a recognized name in engine sealing systems, and this gasket is built to OE-level dimensional specifications for the listed applications. Confirm fitment by year, model, and engine measurements before installation.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 1999 | Volkswagen | Golf | GL | Hatchback | FWD | 1.9L | L4 | — | N/A | — |
| 1998 | Volkswagen | Golf | — | — | — | 1.9L | L4 | DIESEL | N/A | — |
| 1997 | Volkswagen | Golf | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.61mm; Diameter: 81mm; Piston protrusion from: 0.93mm; Piston protrusion to: 1.02mm |
| 1997 | Volkswagen | Passat | — | — | — | 1.9L | L4 | DIESEL | N/A | — |
| 1996 | Volkswagen | Golf | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.61mm; Diameter: 81mm; Piston protrusion from: 0.93mm; Piston protrusion to: 1.02mm |
| 1996 | Volkswagen | Passat | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.61mm; Diameter: 81mm; Piston protrusion from: 0.93mm; Piston protrusion to: 1.02mm |
| 1995 | Volkswagen | Golf | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.61mm; Diameter: 81mm; Piston protrusion from: 0.93mm; Piston protrusion to: 1.02mm |
| 1995 | Volkswagen | Jetta | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.61mm; Diameter: 81mm; Piston protrusion from: 0.93mm; Piston protrusion to: 1.02mm |
| 1995 | Volkswagen | Passat | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.61mm; Diameter: 81mm; Piston protrusion from: 0.93mm; Piston protrusion to: 1.02mm |
| 1994 | Volkswagen | Golf | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.61mm; Diameter: 81mm; Piston protrusion from: 0.93mm; Piston protrusion to: 1.02mm |
| 1994 | Volkswagen | Jetta | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.61mm; Diameter: 81mm; Piston protrusion from: 0.93mm; Piston protrusion to: 1.02mm |
| 1994 | Volkswagen | Passat | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.61mm; Diameter: 81mm; Piston protrusion from: 0.93mm; Piston protrusion to: 1.02mm |
| 1993 | Volkswagen | Golf | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.61mm; Diameter: 81mm; Piston protrusion from: 0.93mm; Piston protrusion to: 1.02mm |
| 1993 | Volkswagen | Jetta | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.61mm; Diameter: 81mm; Piston protrusion from: 0.93mm; Piston protrusion to: 1.02mm |
| 1993 | Volkswagen | Passat | — | — | — | 1.9L | L4 | — | N/A | Installed Thickness: 1.61mm; Diameter: 81mm; Piston protrusion from: 0.93mm; Piston protrusion to: 1.02mm |
| 1990 | Audi | 80 | Base | Sedan | FWD | 2.0L | L4 | — | N/A | — |
| 1989 | Audi | 80 | Base | Sedan | FWD | 2.0L | L4 | — | N/A | — |
