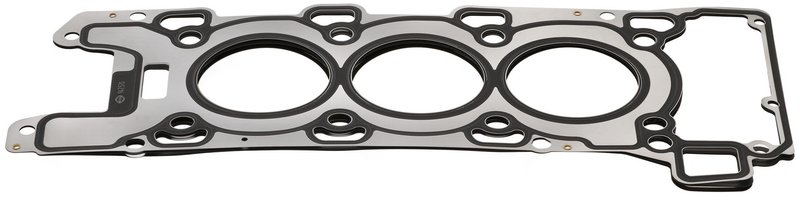

Elring 947.570 Engine Cylinder Head Gasket

Elring MLS Cylinder Head Gasket

Elring part number 947.570 is a multilayer steel cylinder head gasket built for precise sealing in Jaguar and Land Rover engines. With a 0.6 mm thickness and 85.5 mm diameter, it is specified for applications that require accurate combustion sealing and stable clamping under heat and pressure.

Key Features

• Multilayer Steel (MLS) gasket design for consistent sealing performance
• 0.6 mm thickness for the specified engine application
• 85.5 mm diameter
• Engine cylinder head gasket for repair and rebuild service
• Elring part number 947.570 for direct reference

Detailed Description

This Elring engine cylinder head gasket is engineered for select Jaguar F-Pace, F-Type, XF, XE, and XJ models, as well as Land Rover Discovery, Range Rover, Range Rover Sport, Range Rover Velar, and LR4 applications. The MLS construction uses layered steel to support a reliable seal between the cylinder head and engine block, helping maintain compression and isolate combustion gases, coolant, and oil passages. If you are sourcing an Elring 947.570 head gasket for a Jaguar XF or Land Rover Range Rover Sport, verify engine specifications against the listed diameter and thickness before installation.

This part cross-references OE-style numbers such as LR041641 and AJ813951 for the same application.

What It Is Used For

• Replacing a failed cylinder head gasket during engine repair
• Restoring compression loss caused by gasket leakage
• Addressing coolant or oil mixing at the head-to-block sealing surface
• Repairing combustion gas leakage between the cylinder head and engine block
• Supporting rebuild work on compatible Jaguar and Land Rover engines

Installation Notes and Tips

Confirm the engine code, bore diameter, and gasket thickness before ordering. The head and block sealing surfaces should be clean, flat, and free of residue before assembly. Follow the manufacturer’s torque sequence and tightening specifications exactly, and replace any related sealing components required by the repair procedure. For fitment-based searches, this gasket is listed for 2017-2021 Jaguar F-Pace, 2014-2021 Jaguar F-Type, 2012-2020 Jaguar XF, 2016-2019 Jaguar XE, 2013-2019 Jaguar XJ, 2014-2020 Land Rover Discovery, 2018-2020 Land Rover Range Rover Velar, 2014-2019 Land Rover Range Rover, 2014-2019 Land Rover Range Rover Sport, and 2014-2016 Land Rover LR4.

Quality Assurance

Elring is a recognized sealing-system manufacturer with OE-level engineering focus for engine repair applications. Part number 947.570 is built to the listed MLS, thickness, and diameter specifications for accurate application matching.
