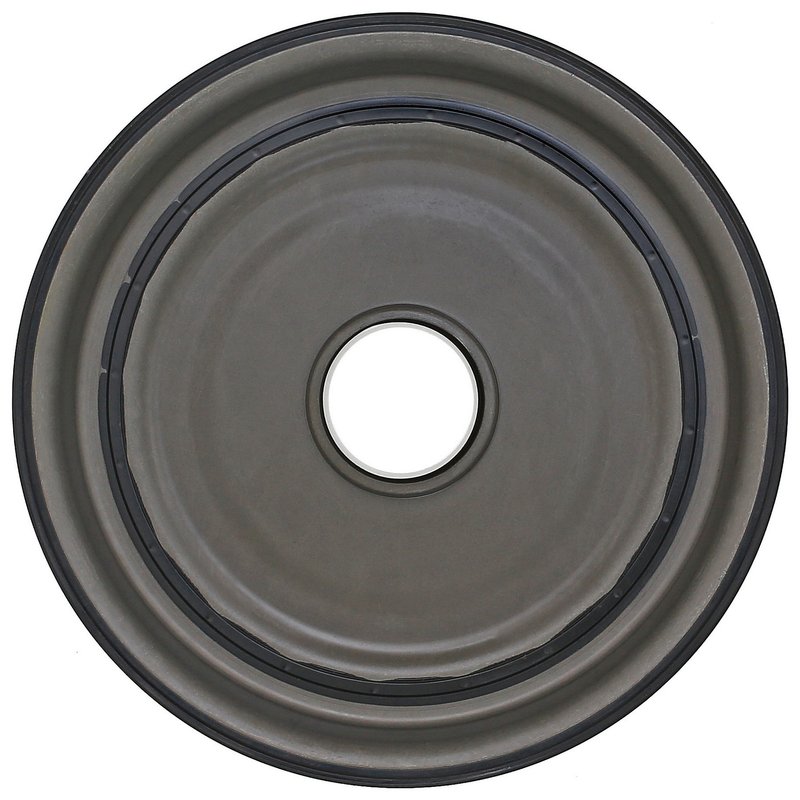

Elring 966.570 Automatic Transmission Main Shaft Seal

Overview of Elring Automatic Transmission Main Shaft Seal 966.570

The Elring 966.570 automatic transmission main shaft seal is engineered for reliable sealing performance in select Audi and Volkswagen models. Designed with durable PTFE material, this seal ensures effective protection against fluid leaks in the 02e transmission system.

• Inner diameter: 48 mm for precise shaft fitment
• Outer diameter: 245 mm for secure housing installation
• Thickness: 34.5 mm for optimal sealing depth
• Material: PTFE (polytetrafluoroethylene) for chemical resistance and durability
• Radial shaft seal design: SP type for effective sealing under rotational movement
• Compatible with 02e transmission type

Technical Details and Material Specifications

The Elring 966.570 main shaft seal is constructed from PTFE, a material known for its low friction and high resistance to heat and chemicals, making it suitable for demanding transmission environments. The radial shaft seal design (SP) provides a tight seal around the rotating shaft, preventing transmission fluid leaks that can lead to performance issues. With an inner diameter of 48 mm and an outer diameter of 245 mm, this seal fits precisely within the transmission housing, while the 34.5 mm thickness ensures adequate sealing surface and durability.

Compatible Audi and Volkswagen Models

This automatic transmission main shaft seal is compatible with a range of Audi and Volkswagen vehicles equipped with the 02e transmission. Compatible models include Audi A3, A3 Quattro, A3 Sportback e-tron, Q3, TT, TT Quattro, TTS Quattro, and Volkswagen Beetle, Bora, CC, Clasico, Eos, GLI, Golf, Golf R, Golf SportWagen, GTI, Jetta, Passat, Passat CC, and Tiguan.

Common Applications and Problem Resolution

• Prevents transmission fluid leaks from the main shaft area
• Reduces risk of transmission overheating due to fluid loss
• Maintains proper lubrication within the 02e transmission system
• Helps avoid premature wear of transmission components
• Ensures smooth operation of automatic transmission in Audi and Volkswagen vehicles

Installation Notes and Tips

When installing the Elring 966.570 main shaft seal, ensure the transmission housing and shaft surfaces are clean and free of debris. Use appropriate tools to avoid damaging the PTFE seal during installation. Verify the seal orientation matches the radial shaft seal design specifications. It is recommended to inspect related transmission components for wear or damage during replacement to maintain overall transmission integrity.

Quality Assurance and Warranty Information

Elring manufactures the 966.570 main shaft seal to meet OEM standards for fit and function. The use of PTFE material provides long-lasting durability under typical operating conditions. While specific warranty details may vary, Elring products generally come with a limited warranty against manufacturing defects, ensuring reliability for your Audi or Volkswagen transmission repair.
