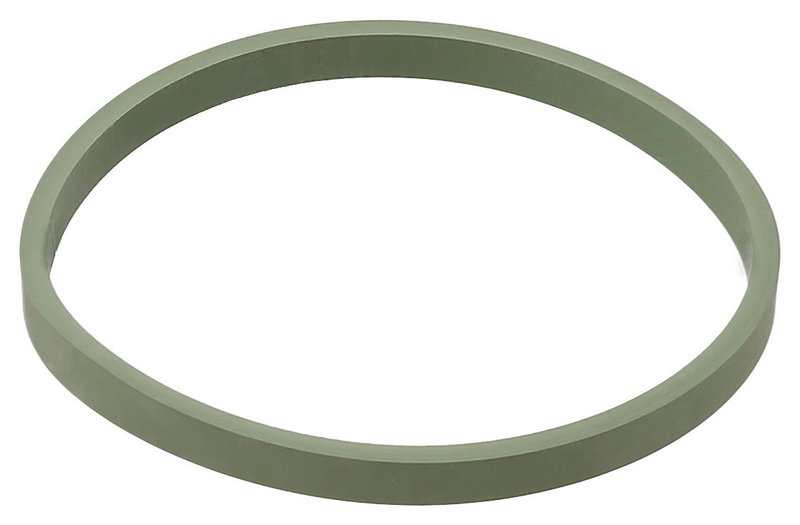

Elring 981.230 Fuel Injection Throttle Body Mounting Gasket

Elring Fuel Injection Throttle Body Gasket

Elring 981.230 is a fuel injection throttle body mounting gasket made for precise sealing at the throttle housing. Built from FPM (fluoride rubber) with a green finish, it measures 65.0 mm inner diameter, 69.6 mm outer diameter, and 5.0 mm height in an A-shape profile.

Compatible With select Volkswagen Jetta, Taos, Polo, Vento, Saveiro, and Audi A1, A3, Q2, and Q3 applications, this gasket supports a clean seal where the throttle body mounts to the intake system. Part number 981.230 is also listed under OE-style cross references for the same application.

Key Features

• FPM (fluoride rubber) construction for sealing performance in fuel and intake environments
• A-shape profile with 65.0 mm inner diameter and 69.6 mm outer diameter
• 5.0 mm height for proper throttle housing interface
• Green color for easy identification during service
• Elring 981.230 part number for ordering and cross-reference matching

Detailed Description

Elring 981.230 is a throttle body mounting gasket designed for vehicles that use a 65 mm throttle housing seal profile. The FPM material is selected for resistance in fuel injection and air delivery sealing points, while the A-shape form helps maintain consistent contact at the mounting surface. This part number 981.230 appears across multiple Volkswagen and Audi applications, including Volkswagen Jetta, Polo, Vento, Saveiro, Taos, and Audi A1, A3, Q2, and Q3 model coverage.

This part cross-references OE-style numbers such as 036 133 073 and A2C59516947 for the same application. Search terms such as Elring 981.230 throttle body gasket, Volkswagen Jetta throttle housing gasket, and Audi A3 fuel injection throttle body mounting gasket align with this part’s confirmed fitment and dimensions.

What It Helps Address

• Air leaks at the throttle body mounting surface
• Rough idle caused by a poor throttle housing seal
• Unmetered air entering the intake tract
• Fuel vapor or intake sealing issues at the throttle body interface
• Service replacement for worn or flattened throttle body gaskets

Installation Notes and Tips

Verify the throttle housing dimensions before installation: 65.0 mm inner diameter, 69.6 mm outer diameter, and 5.0 mm height. Confirm the A-shape profile matches the original seal on the vehicle before assembly. Clean the mating surfaces thoroughly so the gasket seats evenly, and inspect the throttle body flange for wear or distortion before reassembly.

Fits 2022-2024 Volkswagen Jetta, N/A; 2006-2009 Volkswagen Jetta, N/A; 2022-2024 Volkswagen Taos, N/A; 2021-2023 Audi A1, N/A; 2022-2023 Volkswagen Saveiro, N/A; 2010-2016 Volkswagen Saveiro, N/A; 2021-2022 Volkswagen Polo, N/A; 2013-2014 Volkswagen Polo, N/A; 2020 Audi A1, N/A; 2015-2020 Volkswagen Polo, N/A; 2003-2007 Volkswagen Polo, N/A; 2014-2020 Volkswagen Vento, N/A; 2017-2019 Audi A3, N/A; 2002-2003 Audi A3, N/A; 2017-2019 Volkswagen Saveiro, N/A; 2018 Audi Q2, N/A; 2018 Audi Q3, N/A; 2014-2016 Volkswagen Nuevo Gol, N/A; 2004-2010 Audi A3, N/A; 2010 Volkswagen Jetta, N/A; 2007-2010 Volkswagen SportVan, N/A; 2007-2009 Volkswagen CrossFox, N/A; 2005-2009 Volkswagen Lupo, N/A.

Quality Assurance

Elring is a recognized sealing-system manufacturer, and this gasket is specified with exact dimensional and material details to support correct parts matching for Volkswagen and Audi throttle body service.
