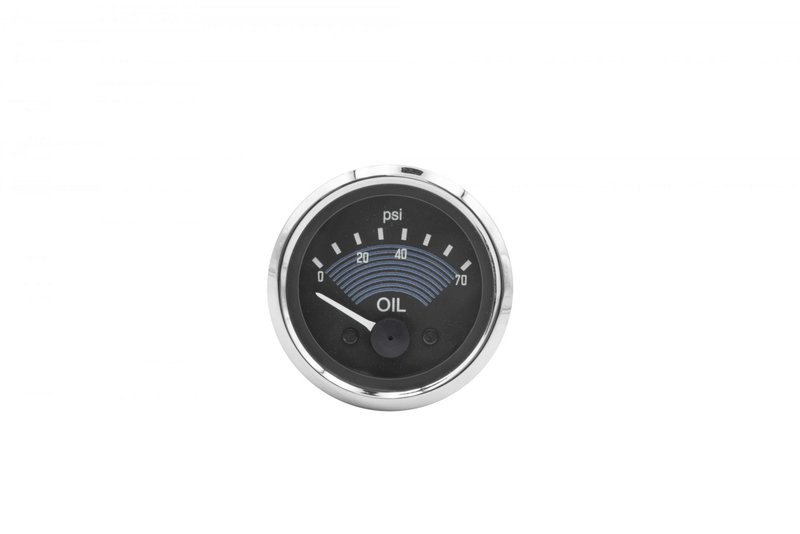

EMPI 14-1137-0 Engine Oil Pressure Gauge

EMPI 52mm Electric Oil Pressure Gauge

The EMPI 14-1137-0 engine oil pressure gauge is a universal 52mm performance instrument for monitoring oil pressure in custom and retrofit builds. It uses an electric sensor signal, a black face, white pointer, chrome bezel, and clear illuminated lens for easy reading in low-light conditions.

Key Features

• 52mm face diameter and 52mm housing width for standard gauge pod and dash openings
• Electric sensor type for remote pressure signal routing
• 0-70 maximum pressure reading for performance monitoring
• Black face with white pointer for clear visibility
• Chrome bezel and clear lens for a clean instrument-panel appearance
• Illuminated gauge with incandescent bulb included
• Universal fit for custom installs and retrofit instrument panels
• Mounting hardware included
• 3-pin male connector for wiring integration

Product Details

Built under the EMPI JP Group line, part number 14-1137-0 is aimed at performance-focused instrument panel applications where accurate oil pressure monitoring is needed. The gauge reads from 0 to 70 and uses an electric sender circuit, making it a practical choice for custom dashboards, engine swaps, and universal gauge installations in vehicles such as Volkswagen Beetle and Volkswagen Bus builds that use aftermarket instrumentation. The EMPI 14-1137-0 combines a compact 52mm format with illuminated operation for straightforward day-to-night visibility.

This part cross-references no listed OE or aftermarket numbers in the provided data.

What It Helps Address

• Low or unstable oil pressure readings on performance engines
• Need for a dedicated dash-mounted pressure display
• Custom gauge panel builds requiring a 52mm instrument
• Retrofit wiring setups using an electric sender signal
• Visibility issues in dim cabin conditions

Installation Notes

Install the gauge in a 52mm opening and connect it to a matching electric oil pressure sender circuit. Verify connector orientation, power, ground, and illumination wiring before final assembly. Because this is a universal gauge, confirm sender compatibility and calibrate the system according to the vehicle’s wiring and engine setup. Fits universal instrument panel applications, including custom Volkswagen Beetle and Volkswagen Bus gauge conversions.

Quality Assurance

EMPI JP Group performance instrumentation is built for universal automotive use in custom and retrofit applications. Part number 14-1137-0 is specified with included bulbs and mounting hardware for a complete gauge installation package.
