Home› Exedy 06805B Transmission Clutch Kit
Exedy 06805B Transmission Clutch KitOE Quality 60-Day Returns
Part #: 06805B

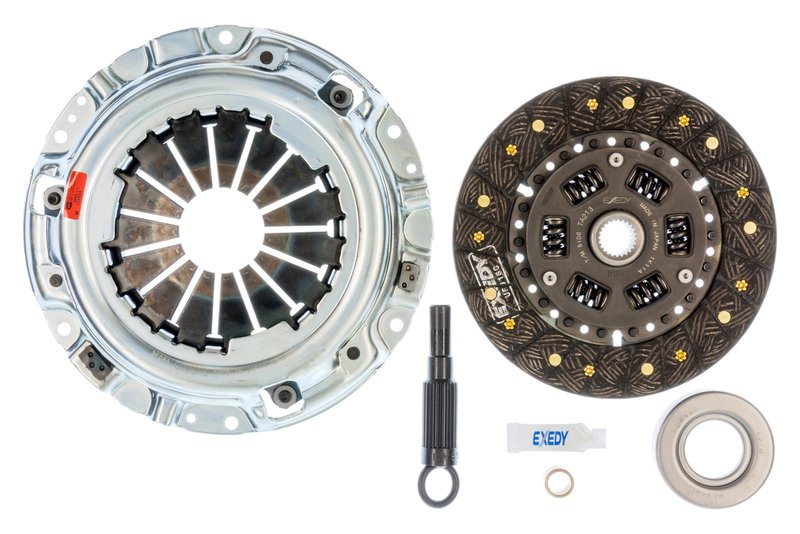

Exedy 06805B Transmission Clutch Kit

Stage 1 Organic Clutch Kit
8 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$635.75Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Stage 1 Organic Clutch Kit
Fitment: Nissan, 240SX
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST

EXEDY Stage 1 Organic Clutch Kit for Nissan 240SX

The EXEDY Stage 1 Organic Clutch Kit is built for street-driven performance with a focus on smooth engagement and added holding capacity. Part number 06805B uses premium organic friction materials and increased clamp load to handle modified engines while keeping drivability in mind.

Key Features

  • Stage 1 organic friction material for consistent street use
  • Increased clamp load for higher torque capacity
  • 225mm clutch diameter with 24T/25.6mm spline
  • Ductile casting construction
  • Rated for 347 ft./lbs. clutch torque
  • Torque capacity listed at 276 ft./lbs. at the flywheel and 221 ft./lbs. at the wheels

Product Details

EXEDY’s Stage 1 Organic Clutch Kit line focuses on a balanced upgrade path for drivers who want stronger clutch performance without moving to an aggressive race-only setup. This 06805B kit is a direct-fit transmission clutch kit for select Nissan 240SX applications, including 1990-1998 Nissan 240SX models listed below. It is a practical choice for Nissan 240SX owners running bolt-ons, mild engine modifications, or refreshed drivetrains that need more grip than a stock-style clutch.

Compatible With 1991-1993 Nissan 240SX, N/A; 1994 Nissan 240SX, N/A; 1996 Nissan 240SX, N/A; 1997-1998 Nissan 240SX, N/A; and 1990 Nissan 240SX, N/A. This part number, 06805B, is also identified by the title EXEDY - Sport Kit Org.

Common Issues This Clutch Kit Addresses

  • Clutch slip under added engine torque
  • Reduced holding power from a worn factory clutch
  • Inconsistent engagement during street driving
  • Loss of drivability after mild performance modifications
  • Torque capacity limits in refreshed manual transmission setups

Installation Notes and Tips

Verify the 225mm diameter, 24T/25.6mm spline, and the specific year breakpoints before ordering. Fitment varies by build date on some Nissan 240SX applications, including 1994 and 1996 models. Inspect the flywheel, release components, and transmission input spline condition during installation to ensure proper clutch operation.

Quality Assurance

EXEDY is a recognized clutch manufacturer with a focus on performance and OE-style drivability. The Stage 1 Organic Clutch Kit uses premium friction materials and increased clamp load to provide a controlled upgrade for street and light horsepower use. Part number 06805B is engineered for the listed Nissan 240SX applications.

BrandExedy
Part Number06805B
PositionStage 1 Organic Clutch Kit
TitleExedy - sport kit org

This part fits 8 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
1998Nissan240SX2.4LL4N/ADuctile Casting; 225mm; 24T/25.6mm Spline; Clamp Load: 1798 lbs.~Clutch Torque: 347 ft./lbs.~Torque At Flywheel: 276ft./lbs.~Torque Capacity At Wheels: 221 ft./lbs.; Stage 1 Organic Clutch Kit
1997Nissan240SX2.4LL4N/ADuctile Casting; 225mm; 24T/25.6mm Spline; Clamp Load: 1798 lbs.~Clutch Torque: 347 ft./lbs.~Torque At Flywheel: 276ft./lbs.~Torque Capacity At Wheels: 221 ft./lbs.; Stage 1 Organic Clutch Kit
1996Nissan240SX2.4LL4N/ADuctile Casting; 225mm; 24T/25.6mm Spline; Clamp Load: 1798 lbs.~Clutch Torque: 347 ft./lbs.~Made On or After 3/1/1996~Torque At Flywheel: 276ft./lbs.~Torque Capacity At Wheels: 221 ft./lbs.; Stage 1 Organic Clutch Kit
1994Nissan240SX2.4LL4N/ADuctile Casting; 225mm; 24T/25.6mm Spline; Clamp Load: 1798 lbs.~Clutch Torque: 347 ft./lbs.~Made On or Before 1/31/1994~Torque At Flywheel: 276ft./lbs.~Torque Capacity At Wheels: 221 ft./lbs.; Stage 1 Organic Clutch Kit
1993Nissan240SX2.4LL4N/ADuctile Casting; 225mm; 24T/25.6mm Spline; Clamp Load: 1798 lbs.~Clutch Torque: 347 ft./lbs.~Torque At Flywheel: 276ft./lbs.~Torque Capacity At Wheels: 221 ft./lbs.; Stage 1 Organic Clutch Kit
1992Nissan240SX2.4LL4N/ADuctile Casting; 225mm; 24T/25.6mm Spline; Clamp Load: 1798 lbs.~Clutch Torque: 347 ft./lbs.~Torque At Flywheel: 276ft./lbs.~Torque Capacity At Wheels: 221 ft./lbs.; Stage 1 Organic Clutch Kit
1991Nissan240SX2.4LL4N/ADuctile Casting; 225mm; 24T/25.6mm Spline; Clamp Load: 1798 lbs.~Clutch Torque: 347 ft./lbs.~Torque At Flywheel: 276ft./lbs.~Torque Capacity At Wheels: 221 ft./lbs.; Stage 1 Organic Clutch Kit
1990Nissan240SX2.4LL4N/AFrom 07/1990; To 01/1994; 24-Spline; 221 Torque Capacity @Wheels; DOHC

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
