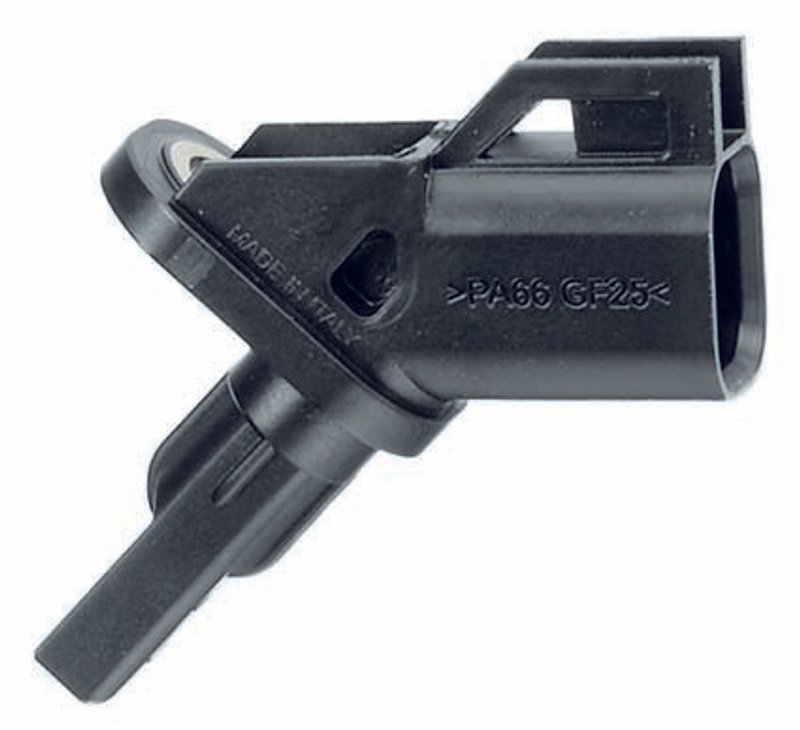

Facet 21.0001 ABS Wheel Speed Sensor - Front

Facet 21.0001 ABS Wheel Speed Sensor

Facet 21.0001 is an ABS wheel speed sensor for front axle applications on select Mazda models. It is built for direct replacement use where accurate wheel speed input is needed for the anti-lock brake system and related stability functions.

Key Features

• ABS wheel speed sensor for front position applications
• Fits 2004-2013 Mazda 3, front
• Fits 2006-2010 Mazda 5, front
• Fits 2012-2015 Mazda 5, front
• Facet part number 21.0001 for catalog matching and service lookup

Detailed Description

This Facet ABS wheel speed sensor is listed for front installation on Mazda 3 and Mazda 5 vehicles across the model years shown. It provides the wheel speed signal used by the ABS control system to monitor wheel rotation and respond during braking events. If you are replacing a failed front ABS sensor on a Mazda 3 or Mazda 5, Facet 21.0001 is the part number to verify against your vehicle application.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Issues It May Address

• ABS warning light illuminated on the dash
• Wheel speed signal loss at the front axle
• ABS system fault codes related to a front sensor
• Erratic brake control input from a damaged sensor
• Intermittent traction or stability system warnings

Installation Notes and Tips

Confirm the front position and match the vehicle year, make, and model before ordering. Inspect the sensor mounting area, wiring, and connector condition during replacement, and clear any stored ABS fault codes after installation. Verify proper routing so the harness is not stretched, pinched, or exposed to wheel movement.

Quality Assurance

Facet 21.0001 is cataloged as an ABS wheel speed sensor for the listed Mazda applications, with fitment coverage for 2004-2013 Mazda 3 front and 2006-2015 Mazda 5 front.
