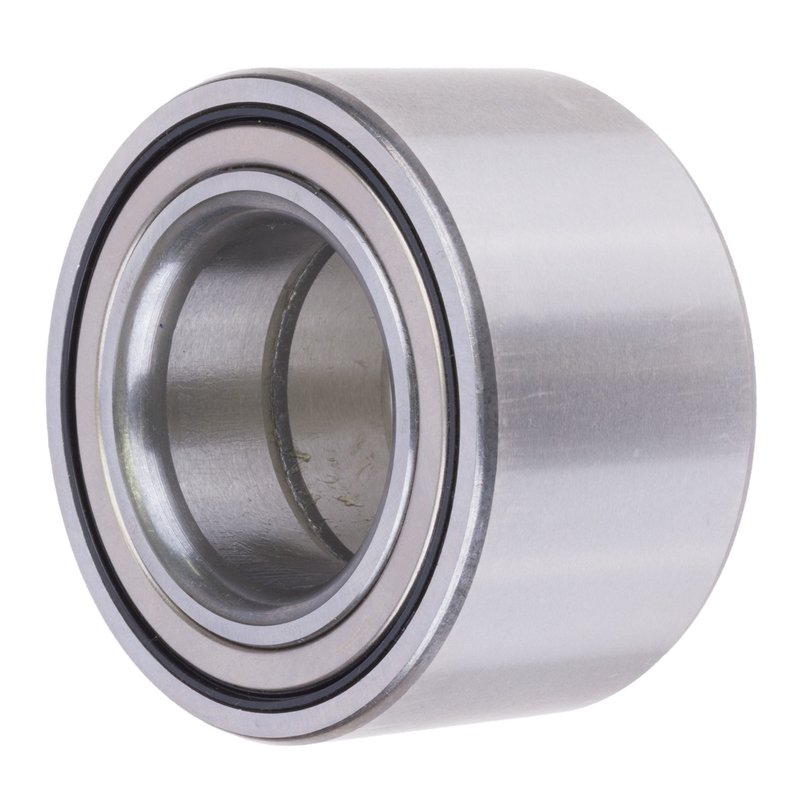

FAG 101703 Wheel Bearing - Front or Rear
OE Quality 60-Day Returns
FAG

FAG 101703 Wheel Bearing - Front or Rear

Brand FAG 101703
Position Front and Rear
Inside Diameter 1.575
Inside Diameter 40
Outside Diameter 2.913
Outside Diameter 74
Height 1.654
Height 42
Fits Pontiac, Scion, and Toyota · 59 vehicles

Compact bearing unit. Preset clearance, lifetime sealing, and for-life lubrication reduce maintenance.

Angular contact design. Built for demanding use with smooth, reliable wheel performance.

Wheel bearing. A rugged replacement part for dependable rotation and support.

Cross-references National 510070, Schaeffler 101703 and SKF FW188 for the same application. See all 3.

$49.08Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $49.08
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing options

FAG 101703 Wheel Bearing for Toyota and Scion Front Applications

FAG 101703 is a first-generation wheel bearing built as a compact, sealed bearing unit with preset clearance and lifetime lubrication. It is used on a wide range of Toyota Corolla, Matrix, Celica, Prius, MR2 Spyder, and Scion tC front applications, plus select Pontiac Vibe front applications.

Key Features

  • First-generation compact wheel bearing design
  • Preset bearing clearance for consistent operation
  • Lifetime sealing and lubrication for maintenance-free service
  • Angular contact ball bearing construction for front and rear wheel use in supported applications
  • Dimensions: 40 mm inside diameter, 74 mm outside diameter, 42 mm height
  • Cross-reference: National 510070

Detailed Description

This FAG 101703 wheel bearing is engineered for direct replacement in supported Toyota and Scion front-wheel applications, including Toyota Corolla, Toyota Matrix, Scion tC, Toyota Celica, and Toyota Prius. It also covers select Pontiac Vibe front applications. The sealed, pre-adjusted design helps maintain proper bearing clearance while reducing routine service needs, and the angular contact ball bearing layout supports demanding driveline and axle conditions.

Use FAG 101703 when replacing a worn front wheel bearing on 2003-2018 Toyota Corolla, front; 2003-2014 Toyota Matrix, front; 2005-2010 Scion tC, front; 2000-2005 Toyota Celica, front; 2001-2003 Toyota Prius, front; and 2003-2010 Pontiac Vibe, front. It also fits 2019 Toyota Corolla, front for ZRE172L and MZEA12 platform applications. The part number 101703 is also referenced under SKF FW188.

What This Part Helps Address

  • Wheel bearing noise such as humming or growling from the front end
  • Excessive wheel play or looseness at the hub
  • Rough rotation caused by bearing wear or contamination
  • Sealing failure that allows lubricant loss and debris intrusion
  • Restoring proper front wheel support on Toyota Corolla, Matrix, Celica, Prius, and Scion tC applications

Installation Notes and Tips

Confirm the vehicle year, make, model, and position before installation. Match the bearing dimensions and application notes to the original part, especially on 2019 Toyota Corolla platform-specific fitments. Inspect the hub, knuckle, and related mounting surfaces for wear or damage before pressing in the new bearing. Proper installation tools and procedures are important to avoid damaging the bearing during service.

Quality Assurance

FAG is known for compact, sealed wheel bearing units with preset clearance and lifetime lubrication. Part number 101703 is built to the stated dimensional and application requirements for the listed Toyota, Scion, and Pontiac front-wheel fitments.

Related reading

This part fits 59 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2019ToyotaCorolla——FrontZRE172L and MZEA12 Platform; Schaeffler BRG Global Number 713 1385 100
2018ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2017ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2016ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2015ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2014ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2014ToyotaMatrix1.8LL4FrontSchaeffler BRG Global Number 713 1385 100
2013ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2013ToyotaMatrix1.8LL4FrontSchaeffler BRG Global Number 713 1385 100
2012ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2012ToyotaMatrix1.8LL4FrontSchaeffler BRG Global Number 713 1385 100
2011ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2011ToyotaMatrix1.8LL4FrontSchaeffler BRG Global Number 713 1385 100
2010PontiacVibe1.8LL4FrontSchaeffler BRG Global Number 713 1385 100
2010PontiacVibe1.8LL4FrontDOHC 16 Valve; Schaeffler BRG Global Number 713 1385 100
2010SciontC——FrontSchaeffler BRG Global Number 713 1385 100
2010ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2010ToyotaMatrix1.8LL4FrontSchaeffler BRG Global Number 713 1385 100
2009PontiacVibe1.8LL4FrontSchaeffler BRG Global Number 713 1385 100
2009SciontC——FrontSchaeffler BRG Global Number 713 1385 100
2009ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2009ToyotaMatrix1.8LL4FrontSchaeffler BRG Global Number 713 1385 100
2008PontiacVibe——FrontSchaeffler BRG Global Number 713 1385 100
2008SciontC——FrontSchaeffler BRG Global Number 713 1385 100
2008ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2008ToyotaMatrix——FrontSchaeffler BRG Global Number 713 1385 100
2007PontiacVibe——FrontSchaeffler BRG Global Number 713 1385 100
2007SciontC——FrontSchaeffler BRG Global Number 713 1385 100
2007ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2007ToyotaMatrix——FrontSchaeffler BRG Global Number 713 1385 100
2006PontiacVibe——FrontSchaeffler BRG Global Number 713 1385 100
2006SciontC——FrontSchaeffler BRG Global Number 713 1385 100
2006ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2006ToyotaMatrix——FrontSchaeffler BRG Global Number 713 1385 100
2005PontiacVibe——FrontSchaeffler BRG Global Number 713 1385 100
2005SciontC——FrontSchaeffler BRG Global Number 713 1385 100
2005ToyotaCelica——FrontSchaeffler BRG Global Number 713 1385 100
2005ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2005ToyotaMatrix——FrontSchaeffler BRG Global Number 713 1385 100
2005ToyotaMR2 Spyder——RearSchaeffler BRG Global Number 713 1385 100
2004PontiacVibe——FrontSchaeffler BRG Global Number 713 1385 100
2004ToyotaCelica——FrontSchaeffler BRG Global Number 713 1385 100
2004ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2004ToyotaMatrix——FrontSchaeffler BRG Global Number 713 1385 100
2004ToyotaMR2 Spyder——RearSchaeffler BRG Global Number 713 1385 100
2003PontiacVibe——FrontSchaeffler BRG Global Number 713 1385 100
2003ToyotaCelica——FrontSchaeffler BRG Global Number 713 1385 100
2003ToyotaCorolla——FrontSchaeffler BRG Global Number 713 1385 100
2003ToyotaMatrix——FrontSchaeffler BRG Global Number 713 1385 100
2003ToyotaMR2 Spyder——RearSchaeffler BRG Global Number 713 1385 100
2003ToyotaPrius——FrontSchaeffler BRG Global Number 713 1385 100
2002ToyotaCelica——FrontSchaeffler BRG Global Number 713 1385 100
2002ToyotaMR2 Spyder——RearSchaeffler BRG Global Number 713 1385 100
2002ToyotaPrius——FrontSchaeffler BRG Global Number 713 1385 100
2001ToyotaCelica——FrontSchaeffler BRG Global Number 713 1385 100
2001ToyotaMR2 Spyder——RearSchaeffler BRG Global Number 713 1385 100
2001ToyotaPrius——FrontSchaeffler BRG Global Number 713 1385 100
2000ToyotaCelica——FrontSchaeffler BRG Global Number 713 1385 100
2000ToyotaMR2 Spyder——RearSchaeffler BRG Global Number 713 1385 100
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
National — 510070Schaeffler — 101703SKF — FW188
