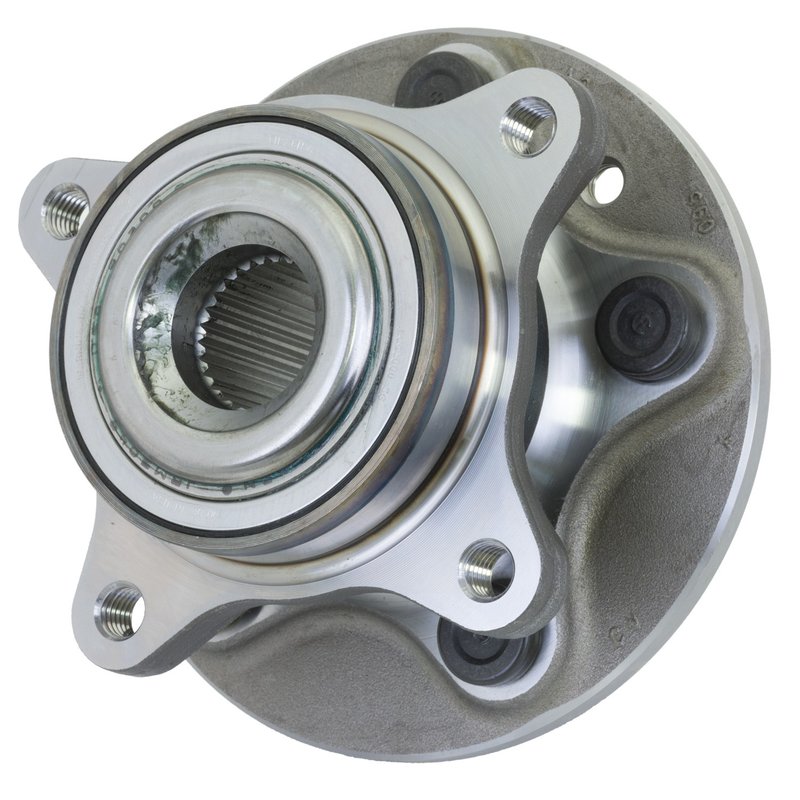

FAG 101765 Wheel Bearing and Hub Assembly - Front

FAG 101765 Front Wheel Bearing Hub Assembly

The FAG 101765 wheel bearing and hub assembly is a maintenance-free front hub solution for select Land Rover applications. It combines a compact, lightweight design with an integral mounting flange for brake, disc, and wheel attachment, making it a practical OE-style replacement for Land Rover LR3, LR4, and Range Rover Sport front service.

Key Features

• Part number: 101765
• Wheel bearing and hub assembly for the front position
• Compact, lightweight, maintenance-free design
• Integral mounting flange for brake, disc, and wheel mounting
• 4 bolt holes and 5 hub bolts
• Cross-references SKF BR930604 and Timken HA500601 for the same application

Product Details

Built for front-end driveline service, this FAG hub assembly is engineered to deliver the convenience of an integrated hub design while maintaining the proven performance characteristics associated with bearing assemblies in this category. The 101765 configuration is listed for 2005-2009 Land Rover LR3 front, 2006-2013 Land Rover Range Rover Sport front, and 2010-2016 Land Rover LR4 front. If you are searching for a front wheel bearing hub assembly for Land Rover LR3, LR4, or Range Rover Sport, FAG 101765 is a direct-fit reference to verify against your vehicle’s original part.

Common Problems This Part Can Address

• Front wheel bearing noise or growling from the hub area
• Excessive wheel play or looseness at the front axle
• Uneven hub rotation caused by bearing wear
• Brake rotor or wheel mounting issues related to a worn hub assembly
• Service replacement for a front hub on Land Rover LR3, LR4, or Range Rover Sport

Installation Notes and Tips

Confirm the vehicle’s year, model, and front axle configuration before ordering. Match the bolt-hole and hub-bolt layout to the original assembly, and inspect related components such as the knuckle, axle hardware, and brake mounting surfaces during service. For best results, follow factory torque specifications and verify smooth rotation after installation.

Quality Assurance

FAG hub assemblies are built around a maintenance-free design and an integrated flange layout for straightforward front-end replacement service. This part number is also listed under Schaeffler 101765, with additional cross-reference numbers available for application matching.
