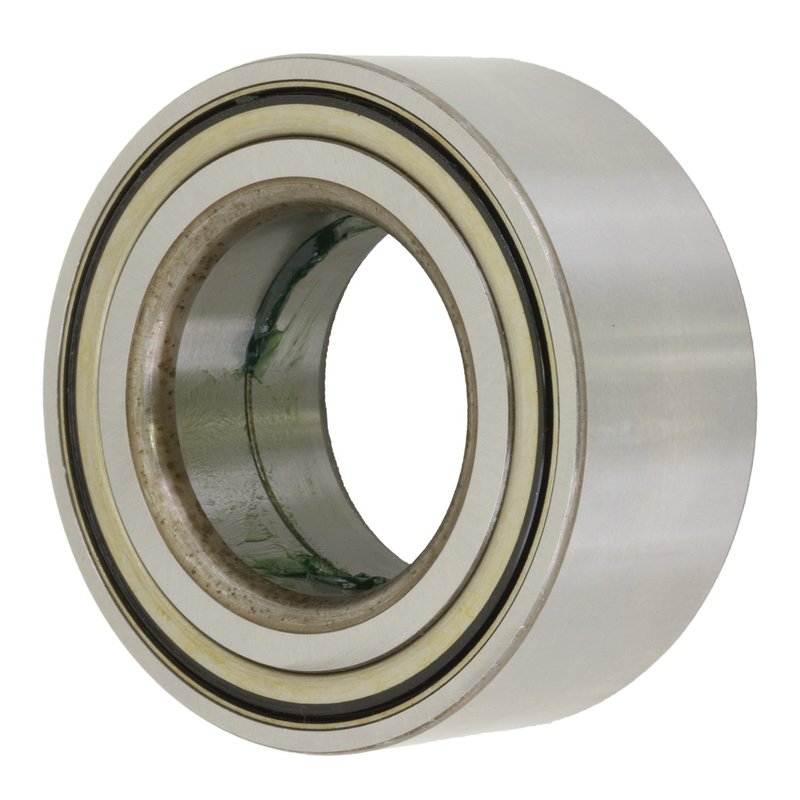

FAG 101775 Wheel Bearing - Front

FAG 101775 Front Wheel Bearing

FAG 101775 is a front wheel bearing built as a compact, sealed bearing unit for Lexus and Toyota applications. It uses preset bearing clearance and lifetime lubrication to support consistent wheel rotation with no routine maintenance.

Compatible with select Lexus GS300, GS400, GS430, LS400, LS430, LX450, SC300, SC400, SC430 and Toyota Supra front applications, FAG 101775 is sized for precise hub service with a 35 mm inside diameter, 77 mm outside diameter, and 42 mm height.

• 35 mm inside diameter for the hub interface
• 77 mm outside diameter for proper bearing seating
• 42 mm overall height
• Sealed, for-life lubricated design
• Preset bearing clearance for consistent operation
• Angular contact ball bearing construction for front wheel use

Application Details

This FAG wheel bearing is engineered for front axle service on 1986-2010 Lexus and Toyota platforms, including Lexus SC430, GS300, GS430, LS430, LS400, GS400, SC300, SC400, LX450 and Toyota Supra front wheel bearing applications. The compact first-generation design supports a rugged OE-style fit where sealed lubrication and controlled clearance are required. This part cross-references SKF FW149 and National 510017 for the same application.

Common Replacement Reasons

• Wheel bearing noise from the front end
• Rough or uneven wheel rotation
• Excessive play at the hub
• Grease loss or seal failure in the bearing assembly
• Service replacement for worn front hub bearings

Installation Notes

Verify the vehicle year, make, model, and front position before ordering. Confirm the bearing dimensions match the hub assembly: 35 mm inside diameter, 77 mm outside diameter, and 42 mm height. Clean the mating surfaces thoroughly and inspect the hub, spindle, and seals for wear before installation. FAG 101775 is a front wheel bearing for Lexus GS300 front wheel bearing replacement, Lexus SC430 front wheel bearing service, and Toyota Supra front wheel bearing applications.

Quality Assurance

FAG is part of Schaeffler, a manufacturer known for precision bearing engineering and OE-level driveline components. Part number 101775 is built as a sealed, maintenance-free wheel bearing with preset clearance for consistent service performance.
