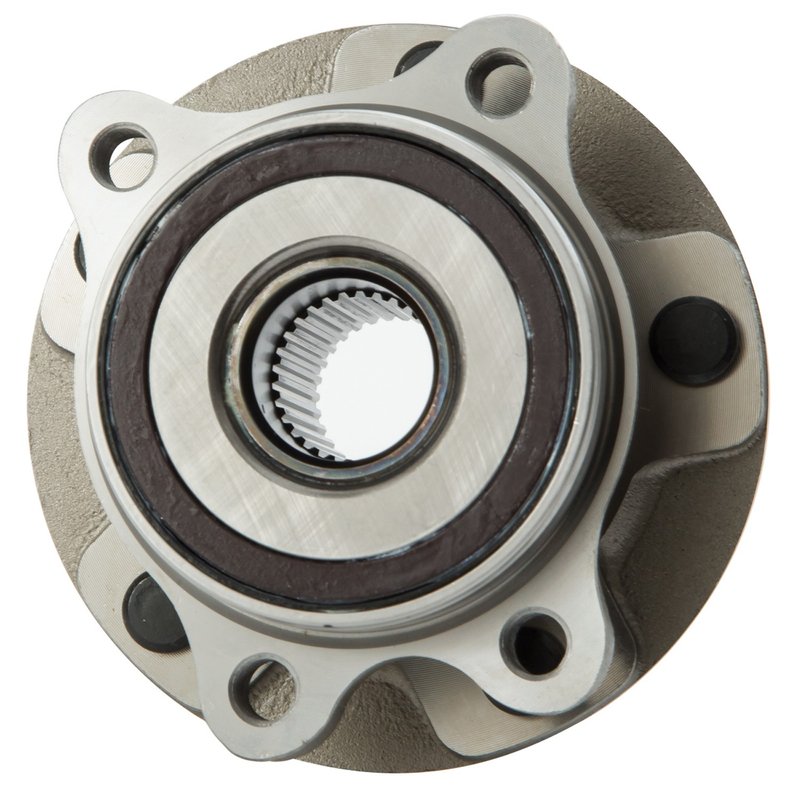

FAG 101797 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly

The FAG 101797 wheel bearing and hub assembly is a maintenance-free front hub built for direct replacement service on select Toyota and Scion applications. It combines a compact, lightweight design with an integral mounting flange for the brake, disc, and wheel interface.

Compatible with 2006-2018 Toyota RAV4 front, 2016-2019 Toyota Mirai front, and 2011-2016 Scion tC front, this hub assembly supports OE-style fitment for common front-end service needs. The FAG 101797 is also cross-referenced to SKF BR930614 for the same application.

Key Features

• FAG wheel bearing and hub assembly, part number 101797
• Maintenance-free hub design for reduced service upkeep
• Integral mounting flange for brake, disc, and wheel mounting
• Compact, lightweight construction
• Front position fitment for Toyota RAV4, Toyota Mirai, and Scion tC applications
• 4 bolt holes and 5 hub bolts

Detailed Description

This hub assembly is engineered as a direct-fit front wheel bearing solution for vehicles that need a reliable hub-and-bearing replacement at the wheel end. The integrated flange simplifies the mounting interface for the brake rotor, wheel, and related components, while the maintenance-free construction eliminates routine bearing service. For buyers searching for a front wheel bearing hub assembly for 2006-2018 Toyota RAV4, 2016-2019 Toyota Mirai, or 2011-2016 Scion tC, FAG 101797 provides a straightforward replacement option.

Part number 101797 is also listed under Schaeffler 101797 and cross-references SKF BR930614, Timken HA590168, and MOOG 513258 for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or growling from the hub area
• Excessive wheel play or looseness at the front axle
• Vibration or roughness felt through the steering or chassis
• Hub wear that affects brake rotor and wheel mounting stability
• Replacement needs after bearing fatigue or contamination

Installation Notes and Tips

Confirm the vehicle year, make, model, and front position before ordering. Match the hub bolt pattern and mounting details to the original part, and inspect related components such as the knuckle, axle nut, and brake hardware during service. Proper torque procedures and clean mounting surfaces help support correct hub seating and bearing life.

Quality Assurance

FAG is part of Schaeffler, a recognized name in bearing and driveline components. This hub assembly is built to deliver the cost-effectiveness and proven performance expected from an OE-style replacement part.
