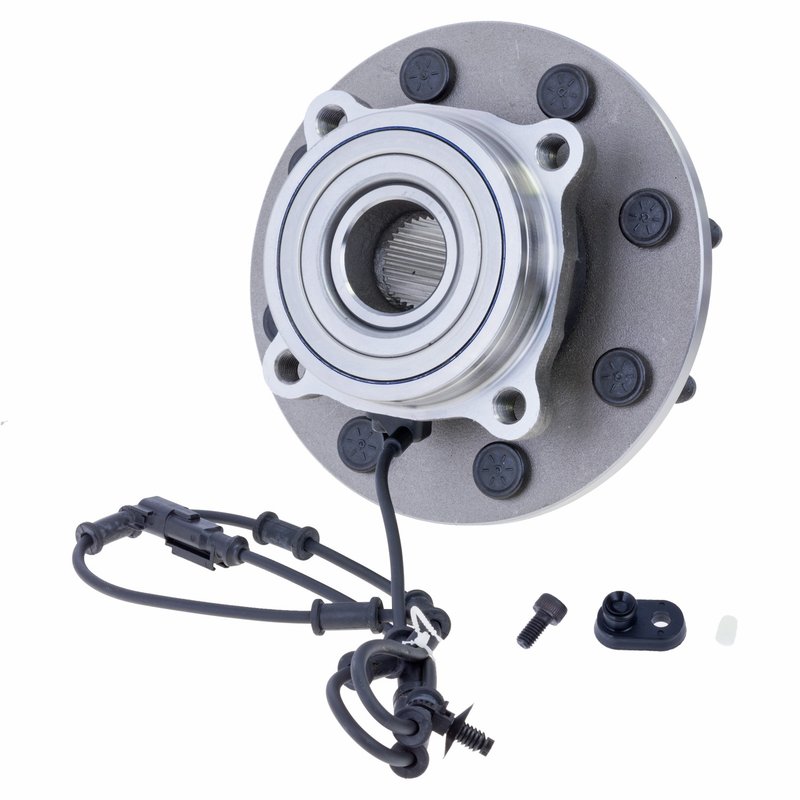

FAG 102152 Wheel Bearing and Hub Assembly - Front
| Brand | FAG 102152 |
|---|---|
| Position | Front |
| 4 | |
| Number of Bolt Holes | 4 |
| Number of Hub Bolts | 8 |
| Fits | Dodge · 9 vehicles |
Maintenance-free hub. Compact, lightweight design with proven performance and lower upkeep.
Integral mounting flange. Simplifies mounting for brake, disc, and wheel components.
Wheel bearing and hub assembly. Combines bearing and hub functions in one unit.
Cross-references ATP 102152, MOOG Hub Assemblies 515101 and SKF BR930507 for the same application. See all 4.
Front Wheel Hub Assembly for Ram Trucks
This FAG wheel bearing and hub assembly is built for front-end service on 2006-2008 Dodge Ram 1500, Ram 2500, and Ram 3500 models. It combines a compact, lightweight hub design with a maintenance-free bearing and an integral mounting flange for brake, disc, and wheel attachment.
- Front wheel bearing and hub assembly for Dodge Ram 1500, Ram 2500, and Ram 3500
- Maintenance-free hub design for reduced service requirements
- Integral mounting flange for brake, disc, and wheel mounting
- 4-bolt hole configuration
- 8 hub bolts
- ABS cable included on listed Ram applications
- FAG part number 102152
OE-Style Hub Construction
FAG 102152 is a front wheel bearing and hub assembly engineered for direct replacement service on Ram truck front axles. The compact hub design supports a clean installation at the wheel end, while the integrated flange simplifies mounting of the brake rotor and wheel assembly. This part cross-references SKF BR930507 and Timken HA590166 for the same application.
Common Service Issues It Addresses
- Front wheel bearing noise or growling
- Wheel play or looseness at the hub
- ABS warning light concerns tied to hub sensor-related failure
- Uneven front-end feel caused by worn hub components
- Corrosion or wear at the wheel mounting interface
Installation Notes
Fits 2006-2008 Dodge Ram 1500, front. Fits 2006-2008 Dodge Ram 2500, front. Fits 2006-2008 Dodge Ram 3500, front. Verify bolt pattern, hub bolt count, and ABS cable routing before installation. Clean the mounting surface and inspect related front suspension and brake components during service. FAG part number 102152 is listed for these front applications.
Quality Assurance
FAG is known for bearing and hub components used in driveline and axle service. This hub assembly is built as a maintenance-free replacement with the fitment and construction details listed above for Ram front-wheel applications.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2008 | Dodge | Ram 1500 | Extended Crew Cab Pickup | 4WD | 5.7L | V8 | Front | Schaeffler BRG Global Number 102152; ABS Cable Included |
| 2008 | Dodge | Ram 2500 | — | 4WD | — | — | Front | Schaeffler BRG Global Number 102152; ABS Cable Included |
| 2008 | Dodge | Ram 3500 | — | 4WD | — | — | Front | Schaeffler BRG Global Number 102152; ABS Cable Included |
| 2007 | Dodge | Ram 1500 | Extended Crew Cab Pickup | 4WD | 5.7L | V8 | Front | Schaeffler BRG Global Number 102152; ABS Cable Included |
| 2007 | Dodge | Ram 2500 | — | 4WD | — | — | Front | Schaeffler BRG Global Number 102152; ABS Cable Included |
| 2007 | Dodge | Ram 3500 | — | 4WD | — | — | Front | Schaeffler BRG Global Number 102152; ABS Cable Included |
| 2006 | Dodge | Ram 1500 | Extended Crew Cab Pickup | 4WD | 5.7L | V8 | Front | Schaeffler BRG Global Number 102152; ABS Cable Included |
| 2006 | Dodge | Ram 2500 | — | 4WD | — | — | Front | Schaeffler BRG Global Number 102152; ABS Cable Included |
| 2006 | Dodge | Ram 3500 | — | 4WD | — | — | Front | Schaeffler BRG Global Number 102152; ABS Cable Included |
