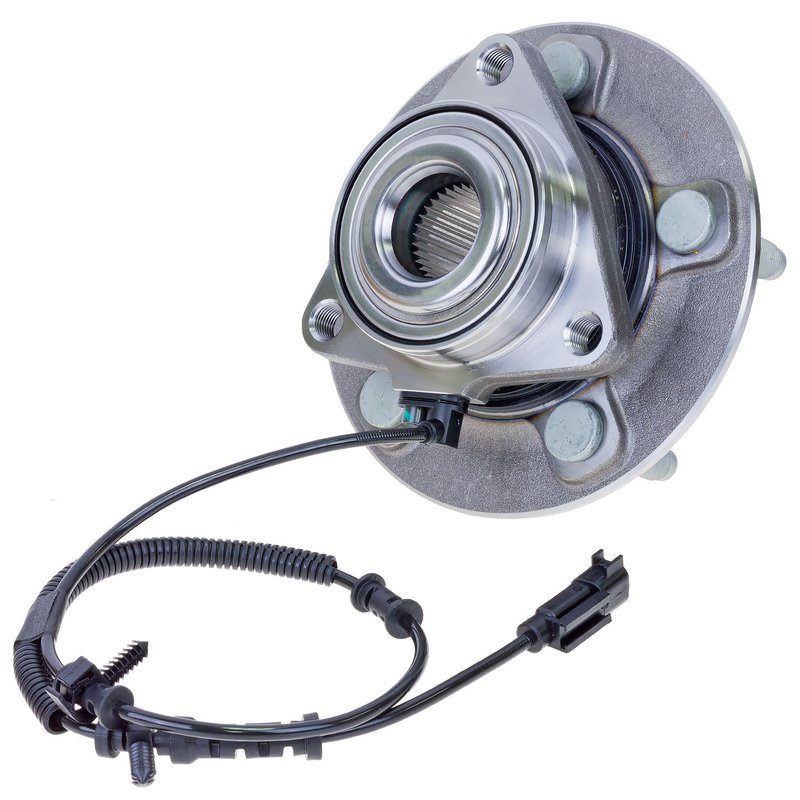

FAG 102172 Wheel Bearing and Hub Assembly - Front
| Brand | FAG 102172 |
|---|---|
| Position | Front |
| 3 | |
| Number of Bolt Holes | 3 |
| Number of Hub Bolts | 5 |
| Fits | Ram and Dodge · 3 vehicles |
Maintenance-free hub. Compact, lightweight design combines proven performance with convenience.
Integral mounting flange. Provides a simple mounting surface for brake, disc, and wheel components.
Wheel bearing and hub assembly. Combines bearing and hub functions in one driveline component.
Cross-references MOOG Hub Assemblies 515126, Schaeffler 102172 and SKF BR930808 for the same application. See all 4.
Front Wheel Bearing Hub Assembly for Ram 1500
This FAG wheel bearing and hub assembly is built for front axle service on select Ram 1500 applications. It combines a compact, lightweight design with a maintenance-free bearing and an integral mounting flange for brake, disc, and wheel attachment.
- FAG Part Number: 102172
- Part type: wheel bearing and hub assembly
- Front position application
- Maintenance-free hub design
- Integral mounting flange for brake, disc, and wheel mounting
- 3 bolt holes and 5 hub bolts
- ABS cable included on listed fitments
Detailed Product Overview
FAG 102172 is a front wheel bearing and hub assembly for 2009-2011 Ram 1500 and Dodge Ram 1500 models. It is engineered as a compact hub unit that supports direct mounting of the brake rotor, wheel, and related components through its integrated flange design. The maintenance-free construction reduces service requirements while retaining the proven performance characteristics associated with hub-bearing assemblies in driveline and axle applications. This FAG 102172 hub assembly is also cross-referenced to MOOG 515126, SKF BR930808, and Timken HA590354 for the same application.
Vehicle Fitment
- Fits 2011 Ram 1500, front.
- Fits 2010 Dodge Ram 1500, front.
- Fits 2009 Dodge Ram 1500, front.
Common Repair Uses
- Front wheel bearing noise or roughness
- Hub play or looseness at the front wheel
- ABS warning concerns related to the front hub assembly
- Uneven wheel rotation caused by worn hub components
- Brake rotor mounting issues at the front axle
Installation Notes and Tips
Confirm front axle fitment by year, make, and model before installation. Verify the bolt-hole and hub-bolt configuration matches the original assembly, and inspect the mating surfaces, axle hardware, and ABS connection points during replacement. Because this unit is listed with an ABS cable included on the confirmed applications, compare the connector routing and attachment points to the original part before final assembly.
Quality Assurance
FAG is a recognized name in hub and bearing components, and this assembly is built around a maintenance-free design with an integrated flange for consistent fit and function in front-end service. Part number 102172 is listed for confirmed Ram 1500 and Dodge Ram 1500 front applications from 2009 through 2011.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Ram | 1500 | Front | Schaeffler BRG Global Number 102172; ABS Cable Included |
| 2010 | Dodge | Ram 1500 | Front | Schaeffler BRG Global Number 102172; ABS Cable Included |
| 2009 | Dodge | Ram 1500 | Front | From 12/08/2008; Schaeffler BRG Global Number 102172; ABS Cable Included |
