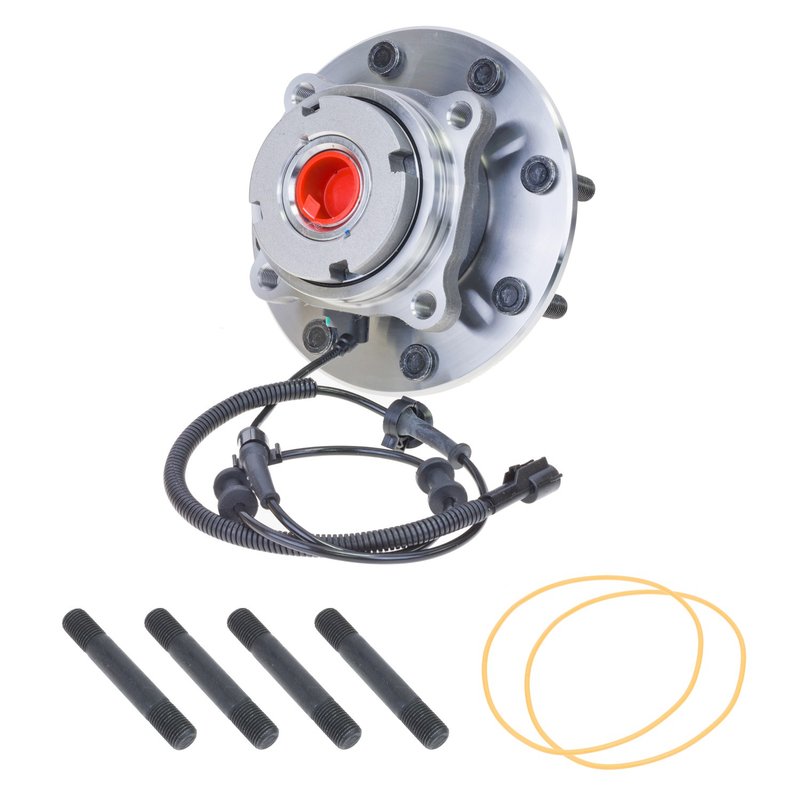

FAG 102195 Wheel Bearing and Hub Assembly - Front
| Brand | FAG 102195 |
|---|---|
| Position | Front |
| 4 | |
| Number of Bolt Holes | 4 |
| Number of Hub Bolts | 8 |
| Fits | Ford · 4 vehicles |
Maintenance-free hub. Combines proven bearing performance with a compact, lightweight design.
Integral mounting flange. Simplifies mounting for the brake, disc, and wheel.
4-bolt design. Features four bolt holes and eight hub bolts for secure attachment.
Cross-references MOOG Hub Assemblies 515077, Schaeffler 102195 and SKF BR930425 for the same application. See all 4.
Front Wheel Bearing Hub Assembly for Ford Trucks
This FAG wheel bearing and hub assembly is built for front-end service on select 1999 Ford F-250, F-250 Super Duty, and F-350 Super Duty applications. It combines a compact, lightweight design with a maintenance-free construction and an integral mounting flange for brake, disc, and wheel attachment.
Key Features
- FAG Part Number 102195
- Wheel bearing and hub assembly for front position use
- 4-bolt hole hub pattern with 8 hub bolts
- Maintenance-free hub design
- Integral mounting flange for brake, disc, and wheel mounting
- Built for dual rear wheel, coarse-thread applications listed below
Product Details
FAG 102195 is a front wheel bearing and hub assembly engineered for specific 1999 Ford truck fitments. It is listed for 1999 Ford F-250 front, 1999 Ford F-250 Super Duty front, and 1999 Ford F-350 Super Duty front applications with dual rear wheels and coarse-thread studs, including 4-wheel ABS configurations where noted. This part cross-references SKF BR930425 for the same application.
Common Repair Uses
- Front wheel bearing noise on a 1999 Ford F-250 or F-250 Super Duty
- Hub looseness or play at the front wheel end
- ABS-related front hub service on listed 4-wheel ABS trucks
- Replacement for worn or damaged front hub mounting surfaces
- Service on dual rear wheel Ford truck front axle assemblies
Installation Notes
Verify the vehicle build date and axle details before ordering, since the listed fitment applies to trucks built to 03/21/1999. Confirm dual rear wheel configuration, coarse-thread studs, and ABS cable requirements against the existing hub before installation. Use the vehicle service procedure for torque values and bearing/hub inspection.
Quality Assurance
FAG manufactures this hub assembly as a maintenance-free unit with an integrated flange and proven bearing design for front axle service. Part number 102195 is listed with direct interchange references including MOOG 515077 and Timken HA590425.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Ford | F-250 | 4WD | Front | To 03/21/1999; Dual Rear Wheels, Coarse Threads; Schaeffler BRG Global Number 102195; ABS Cable Included |
| 1999 | Ford | F-250 | 4WD | Front | 4-Wheel ABS; 8 Stud Hub Assembly; Dual Rear Wheels, Coarse Threads; To 3/21/1999; Schaeffler BRG Global Number 102195; ABS Cable Included |
| 1999 | Ford | F-250 Super Duty | 4WD | Front | To 03/21/1999; Dual Rear Wheels, Coarse Threads; Schaeffler BRG Global Number 102195; ABS Cable Included |
| 1999 | Ford | F-350 Super Duty | 4WD | Front | To 03/21/1999; Dual Rear Wheels; Coarse Thread Studs; Schaeffler BRG Global Number 102195; ABS Cable Included |
| No rows match your filter. | |||||
