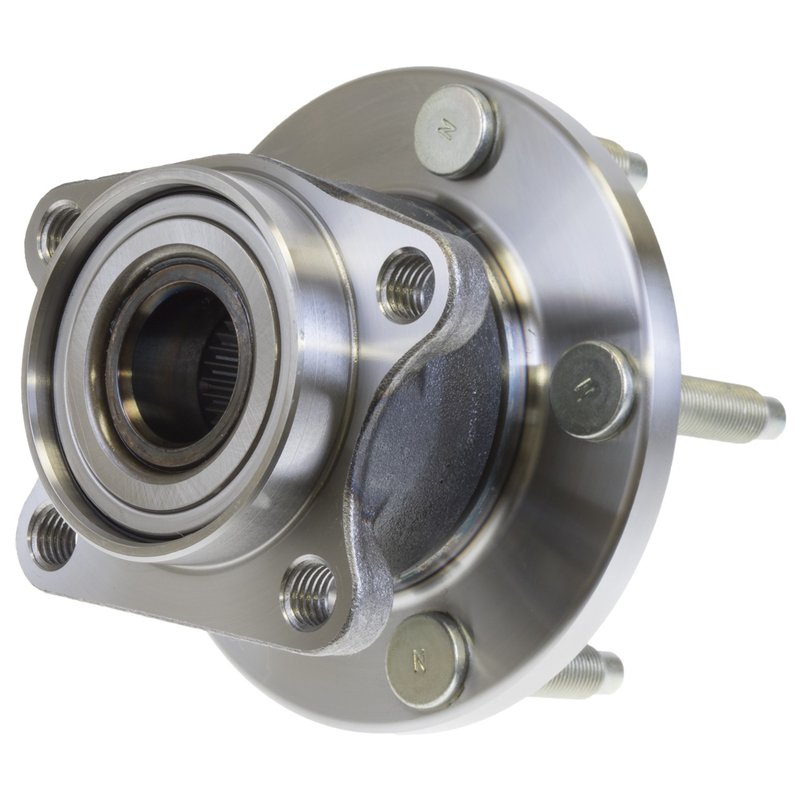

FAG 102274 Wheel Bearing and Hub Assembly - Rear
| Brand | FAG 102274 |
|---|---|
| Position | Rear |
| 4 | |
| Number of Bolt Holes | 4 |
| Number of Hub Bolts | 5 |
| Fits | Ford and Lincoln · 8 vehicles |
Maintenance-free hub. Compact, lightweight design with proven bearing performance.
Integral mounting flange. Simplifies mounting for brake, disc, and wheel components.
Wheel bearing and hub assembly. Combines bearing and hub functions in one unit.
Cross-references ATP 102274, MOOG Hub Assemblies 512335 and SKF BR930636 for the same application. See all 4.
Wheel Bearing Hub Assembly for Rear Service
The FAG 102274 wheel bearing and hub assembly is a rear hub unit built for 2007-2010 Ford Edge and 2007-2010 Lincoln MKX applications. It combines the bearing and hub into a compact, maintenance-free design with an integral mounting flange for brake, disc, and wheel attachment.
Key Features
- Rear wheel bearing and hub assembly for Ford Edge and Lincoln MKX
- Compact, lightweight, maintenance-free hub design
- Integral mounting flange for brake, disc, and wheel mounting
- 4-bolt hole configuration with 5 hub bolts
- OE-style replacement part number 102274
Detailed Description
FAG 102274 is a rear wheel bearing and hub assembly engineered for 2007-2010 Ford Edge and 2007-2010 Lincoln MKX models. The unit is designed as a compact hub assembly that simplifies service by combining the bearing and hub into one maintenance-free component. Its integral flange supports mounting for the brake, disc, and wheel, helping restore proper rear hub function on the vehicle.
This part cross-references SKF BR930636 and Timken HA590183 for the same application. If you are searching for a rear wheel bearing hub assembly for Ford Edge or Lincoln MKX, part number 102274 is the direct reference to verify against your vehicle.
Common Repair Uses
- Rear wheel bearing noise or roughness
- Excessive play at the rear hub
- Wheel vibration related to hub wear
- Hub flange wear affecting brake and wheel mounting
- Service replacement for a worn rear hub assembly
Installation Notes and Tips
Confirm rear fitment by year, make, and model before ordering. Verify the 4-bolt hole and 5 hub bolt configuration against the original part, and inspect the surrounding brake and suspension components during installation. For best results, follow factory service procedures and torque specifications for the Ford Edge or Lincoln MKX rear hub assembly.
Quality Assurance
FAG is a recognized bearing brand with a focus on OE-level driveline and hub components. Part number 102274 is built as a maintenance-free hub assembly for consistent rear wheel support in the specified Ford Edge and Lincoln MKX applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Ford | Edge | AWD | Rear | Schaeffler BRG Global Number 102274 |
| 2010 | Lincoln | MKX | AWD | Rear | Schaeffler BRG Global Number 102274 |
| 2009 | Ford | Edge | AWD | Rear | Schaeffler BRG Global Number 102274 |
| 2009 | Lincoln | MKX | AWD | Rear | Schaeffler BRG Global Number 102274 |
| 2008 | Ford | Edge | AWD | Rear | Schaeffler BRG Global Number 102274 |
| 2008 | Lincoln | MKX | AWD | Rear | Schaeffler BRG Global Number 102274 |
| 2007 | Ford | Edge | AWD | Rear | Schaeffler BRG Global Number 102274 |
| 2007 | Lincoln | MKX | AWD | Rear | Schaeffler BRG Global Number 102274 |
| No rows match your filter. | |||||
