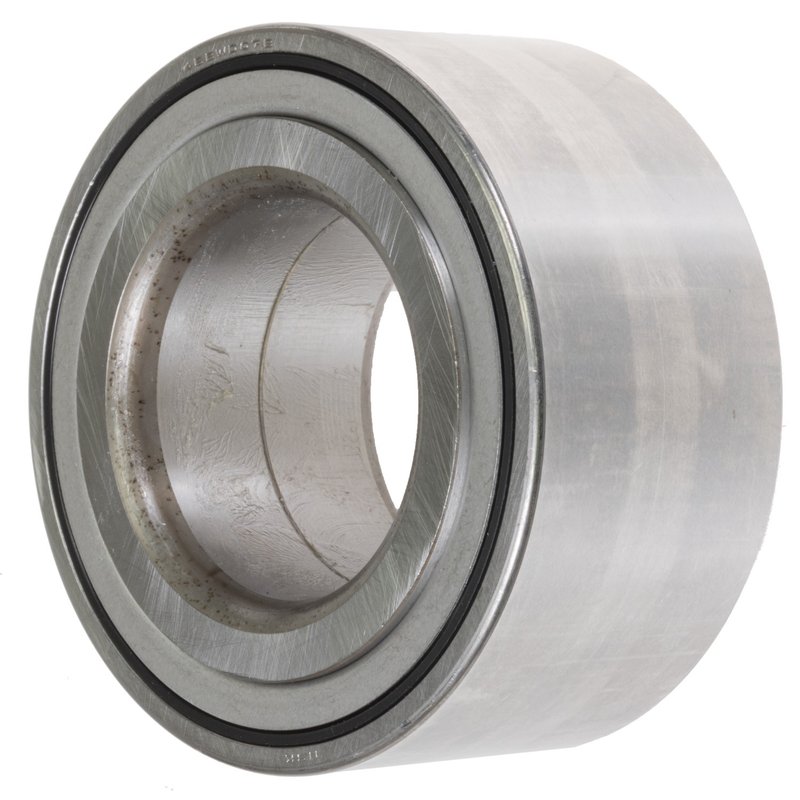

FAG 102414 Wheel Bearing - Front or Rear

FAG 102414 Wheel Bearing for Honda and Acura

FAG 102414 is a first-generation wheel bearing built as a compact, sealed unit with preset bearing clearance and lifetime lubrication. It is engineered for front and rear wheel applications where consistent rotation, sealing, and low-maintenance operation matter.

Key Features

• First-generation compact wheel bearing design
• Preset bearing clearance for consistent operation
• Lifetime lubrication and sealing for maintenance-free service
• Angular contact ball bearing construction for front and rear wheel use
• Inside diameter: 45 mm; outside diameter: 84 mm; height: 42 mm
• Cross-references SKF FW145 and National 510050 for the same application

Detailed Description

This FAG 102414 wheel bearing is designed for vehicles that use a compact, sealed hub-style bearing assembly. The 45 mm inside diameter, 84 mm outside diameter, and 42 mm height help identify the correct replacement for the specified Honda and Acura applications. It is a direct-fit wheel bearing solution for models such as Honda S2000, Honda CR-V, Honda Accord, Acura RSX, and Acura TL, with coverage for both front and rear positions where listed.

Built with angular contact ball bearing technology, FAG 102414 is suited to the load and rotation demands of everyday driving. The sealed, lubricated-for-life design reduces routine service needs while maintaining a controlled bearing clearance for stable wheel support. This part number is also identified as Schaeffler 102414.

Vehicle Fitment

• Fits 2000-2009 Honda S2000, front.
• Fits 2000-2009 Honda S2000, rear.
• Fits 2003-2008 Honda Pilot, rear.
• Fits 2002-2006 Acura RSX, front.
• Fits 2004-2005 Honda Civic, front.
• Fits 1997-2004 Honda CR-V, front.
• Fits 2003-2004 Honda Element, front.
• Fits 2001-2003 Acura CL, front.
• Fits 1999-2003 Acura TL, front.
• Fits 2001-2002 Acura MDX, rear.
• Fits 1998-2002 Honda Accord, front.
• Fits 1997-2001 Honda Prelude, front.

What It Helps Address

• Wheel noise or growling from a worn bearing
• Excess wheel play caused by bearing wear
• Rough wheel rotation or vibration at speed
• Seal failure that allows contamination into the bearing
• Maintenance issues on sealed wheel bearing assemblies

Installation Notes and Tips

Confirm the bearing dimensions and vehicle position before installation. This part is listed for front and rear applications depending on the vehicle, so match the exact year, make, model, and position shown in the fitment data. Inspect the hub, spindle, and surrounding components for wear or damage before pressing in the replacement bearing.

Quality Assurance

FAG is a Schaeffler brand known for precision bearing engineering. The 102414 wheel bearing uses a sealed, lifetime-lubricated design with preset clearance to support consistent performance in the specified Honda and Acura applications.
