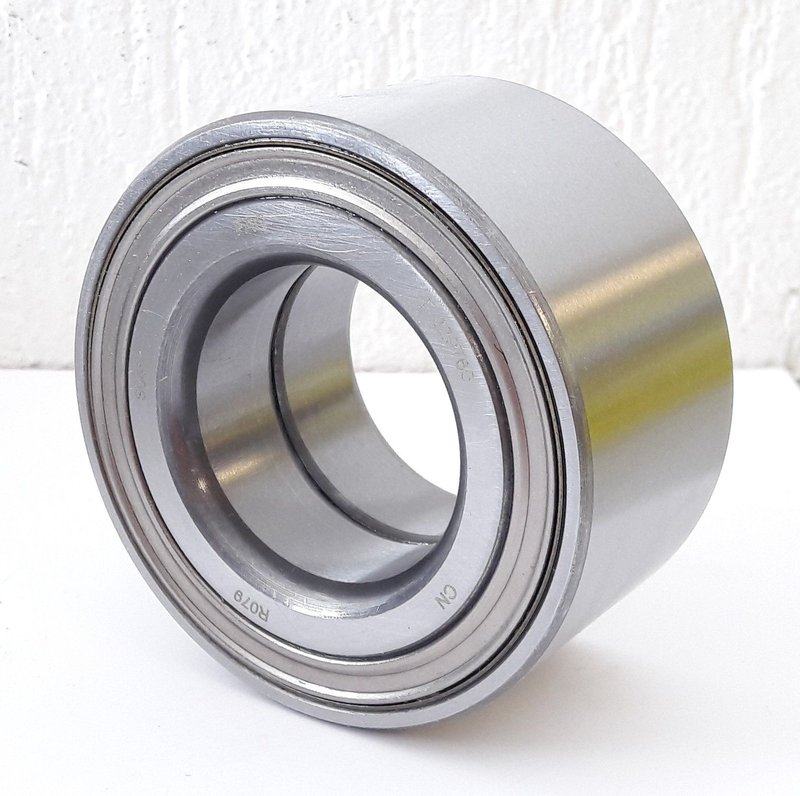

FAG 102420 Wheel Bearing - Front

FAG 102420 Front Wheel Bearing

FAG 102420 is a first-generation wheel bearing unit built for front-wheel service on select Toyota and Lexus applications. It uses a compact, sealed design with preset bearing clearance and lifetime lubrication for maintenance-free operation.

Compatible with Toyota Sienna, Toyota Highlander, Lexus RX350, and Lexus RX450h front applications, this FAG wheel bearing supports smooth wheel rotation and consistent hub performance. The FAG 102420 part number is also used as a direct reference for several OE-style replacement listings.

Key Features

• First-generation compact wheel bearing unit
• Preset bearing clearance for consistent operation
• Sealed and lubricated for life
• Angular contact ball bearing design for front wheel use
• Built for rugged service in demanding driving conditions
• Inside diameter: 45 mm (1.772 in)
• Outside diameter: 86 mm (3.386 in)
• Height: 45 mm (1.772 in)

Detailed Description

FAG 102420 is engineered as a sealed front wheel bearing for vehicles that require a compact, durable bearing assembly. Its angular contact ball bearing construction helps maintain stable wheel support under load, while the factory-set clearance and permanent lubrication reduce service needs over time. This part number is a fitment match for 2011-2020 Toyota Sienna front, 2008-2019 Toyota Highlander front, 2010-2016 Lexus RX350 front, and 2010-2015 Lexus RX450h front. This part cross-references SKF FW212 for the same application.

What It Helps Address

• Wheel bearing noise from worn front hub components
• Rough or uneven wheel rotation
• Excessive play in the front wheel assembly
• Sealing issues that allow contamination into the bearing
• Maintenance concerns tied to serviceable bearing designs

Installation Notes

Verify the vehicle year, make, model, and front position before installation. Confirm bearing dimensions against the original part and inspect the hub, knuckle, and related mounting surfaces for wear or damage. Proper press-fit procedures and clean assembly practices are important for bearing life.

Quality Assurance

FAG is known for OE-level bearing engineering and controlled manufacturing standards. The 102420 wheel bearing is built with sealed-for-life lubrication and preset clearance to support consistent front-end operation on Toyota Sienna, Toyota Highlander, Lexus RX350, and Lexus RX450h applications.
