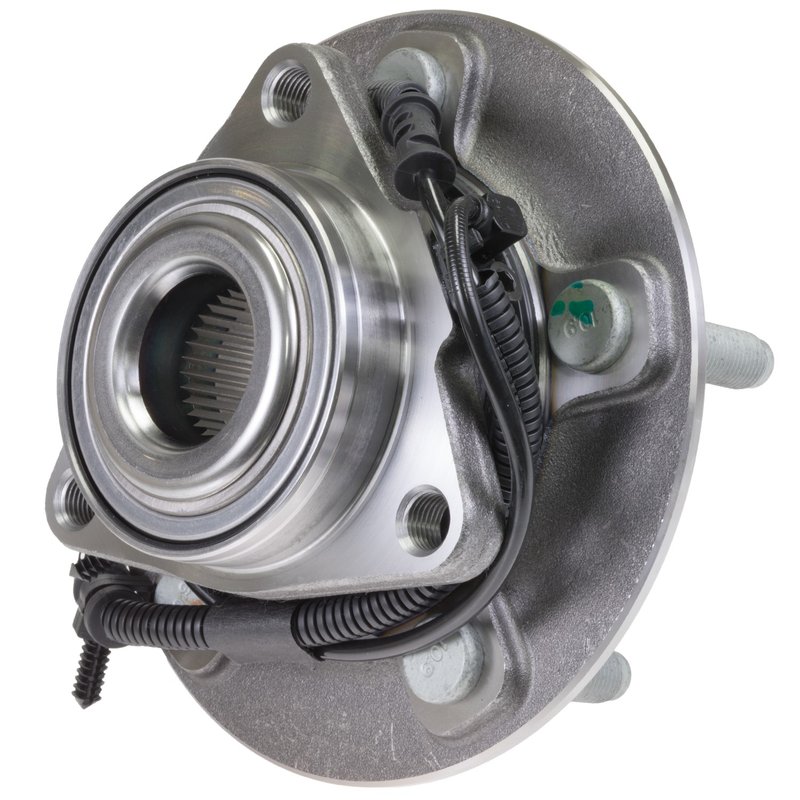

FAG 103289 Wheel Bearing and Hub Assembly - Front
| Brand | FAG 103289 |
|---|---|
| Position | Front |
| 3 | |
| Number of Bolt Holes | 3 |
| Number of Hub Bolts | 5 |
| Fits | Ram · 9 vehicles |
Maintenance-free hub. Compact, lightweight design with an integral mounting flange.
Cost-effective performance. Combines proven bearing characteristics with everyday convenience.
Wheel bearing and hub assembly. Integrates the bearing and hub into one serviceable unit.
Cross-references ATP 103289, MOOG Hub Assemblies 515151 and SKF BR930858 for the same application. See all 4.
Front Wheel Bearing Hub Assembly for Ram 1500
This FAG wheel bearing and hub assembly is built for front axle service on select Ram 1500 and Ram 1500 Classic trucks. Part number 103289 combines a compact hub design with an integral mounting flange for brake, disc, and wheel attachment, while keeping maintenance needs low.
Key Features
- Front wheel bearing and hub assembly for driveline and axle service
- Integral mounting flange for brake, disc, and wheel mounting
- Compact, lightweight hub construction
- Maintenance-free design
- Number of bolt holes: 3
- Number of hub bolts: 5
Detailed Description
FAG 103289 is a front wheel bearing and hub assembly engineered for 2012-2018 Ram 1500 and 2019-2020 Ram 1500 Classic applications. It uses a hub design that combines bearing performance with the convenience of an integrated flange, helping simplify front-end service while maintaining a direct-fit layout for the specified vehicles. The ABS cable is included for the listed fitments. This part cross-references SKF BR930858 for the same application.
For buyers searching for a front wheel bearing hub assembly for Ram 1500, Ram 1500 Classic front hub replacement, or FAG 103289 wheel bearing assembly, this unit matches the confirmed vehicle coverage below.
Common Uses
- Front wheel bearing noise or roughness
- Excessive play in the front hub area
- ABS-related front wheel speed sensor service on listed applications
- Front hub replacement after wear or contamination
- Brake, disc, and wheel mounting service on the front axle
Installation Notes and Tips
Verify the vehicle year, model, and front position before installation. Confirm bolt-hole and hub-bolt configuration against the original part, and inspect the mating surfaces, axle components, and ABS connection points during service. Use proper torque procedures and follow the vehicle manufacturer’s service information for final assembly.
Quality Assurance
FAG is known for OE-level bearing engineering and hub component design. Part number 103289 is built as a maintenance-free hub assembly for the listed Ram applications and is backed by the brand’s manufacturing standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Ram | 1500 Classic | Front | Schaeffler BRG Global Number 103289; ABS Cable Included |
| 2019 | Ram | 1500 Classic | Front | Schaeffler BRG Global Number 103289; ABS Cable Included |
| 2018 | Ram | 1500 | Front | Schaeffler BRG Global Number 103289; ABS Cable Included |
| 2017 | Ram | 1500 | Front | Schaeffler BRG Global Number 103289; ABS Cable Included |
| 2016 | Ram | 1500 | Front | Schaeffler BRG Global Number 103289; ABS Cable Included |
| 2015 | Ram | 1500 | Front | Schaeffler BRG Global Number 103289; ABS Cable Included |
| 2014 | Ram | 1500 | Front | Schaeffler BRG Global Number 103289; ABS Cable Included |
| 2013 | Ram | 1500 | Front | Schaeffler BRG Global Number 103289; ABS Cable Included |
| 2012 | Ram | 1500 | Front | Schaeffler BRG Global Number 103289; ABS Cable Included |
