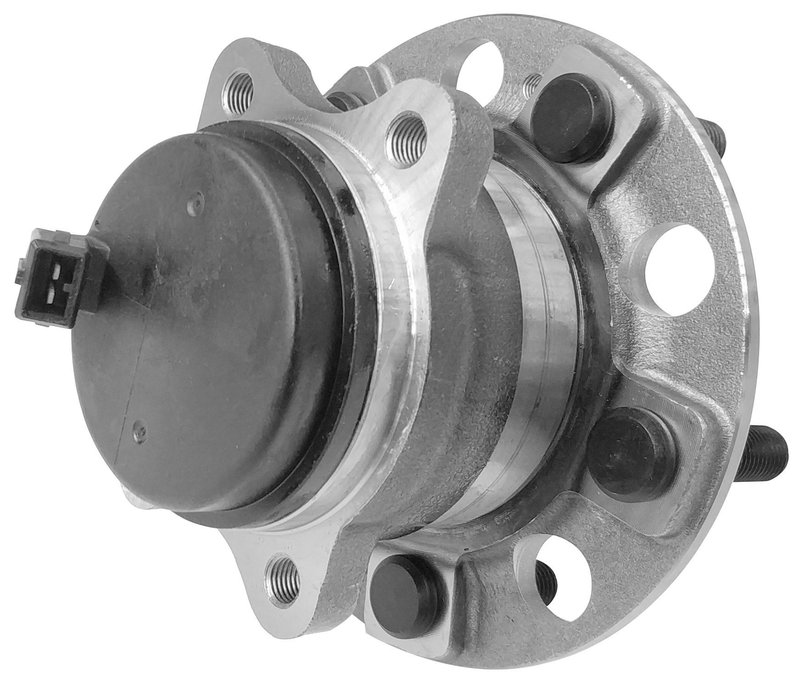

FAG 103324 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for Hyundai and Kia Vehicles

The FAG 103324 wheel bearing and hub assembly is engineered to meet the specific requirements of Hyundai and Kia models including the Cadenza, Optima, Sonata, Sportage, and Tucson. Designed for durability and precise fitment, this assembly ensures smooth wheel rotation and optimal vehicle performance.

• Compatible with Hyundai Cadenza, Optima, Sonata, Sportage, and Tucson
• Part number 103324 for accurate identification
• Includes ABS tone ring with multipol encoder (MPE) for advanced wheel speed sensing
• Five wheel stud configuration for secure wheel mounting
• Flange diameter of 143 mm (5.630 inches) for proper fit
• Hub pilot diameter of 81 mm (3.189 inches) ensures precise centering
• Bolt hole diameter options: 114.3 mm (4.500 inches) and 100 mm (3.937 inches)
• Brake pilot diameter of 76 mm (2.992 inches) for brake component compatibility
• Four inlet mounting holes for stable installation
• Wheel flange width of 59 mm (2.323 inches) matching knuckle flange dimensions

Detailed Product Description

The FAG 103324 wheel bearing and hub assembly is designed to provide a direct replacement for select Hyundai and Kia vehicles, ensuring proper fit and function. This assembly features a five-stud wheel configuration and includes an ABS tone ring with a multipol encoder (MPE), which supports the vehicle’s anti-lock braking system by accurately monitoring wheel speed. The hub pilot diameter of 81 mm (3.189 inches) and flange diameter of 143 mm (5.630 inches) are engineered to match OEM specifications, providing precise wheel centering and secure mounting. Bolt hole diameters of 114.3 mm (4.500 inches) and 100 mm (3.937 inches) accommodate the vehicle’s bolt pattern, while the brake pilot diameter of 76 mm (2.992 inches) ensures compatibility with brake components. The assembly’s four inlet mounting holes and wheel flange width of 59 mm (2.323 inches) contribute to a stable and reliable installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearings causing noise or vibration
• Restores proper ABS function by replacing faulty tone ring assemblies
• Corrects wheel play or looseness due to hub assembly wear
• Eliminates uneven tire wear caused by bearing failure
• Addresses wheel hub corrosion or damage affecting wheel alignment

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the part number 103324 matches the vehicle’s OEM specifications. Clean the mounting surface thoroughly to remove debris and corrosion. Use proper torque specifications for wheel studs and mounting bolts to avoid premature wear. Inspect the ABS sensor and wiring during installation to ensure proper connection with the included multipol encoder tone ring.

Quality Assurance and Warranty

FAG wheel bearing and hub assemblies are manufactured to meet stringent quality standards, ensuring reliable performance and durability. This part is engineered to OEM specifications for Hyundai and Kia vehicles. Warranty coverage details should be confirmed with the original equipment manufacturer or supplier.
