FAG 103328 Wheel Bearing and Hub Assembly - Front

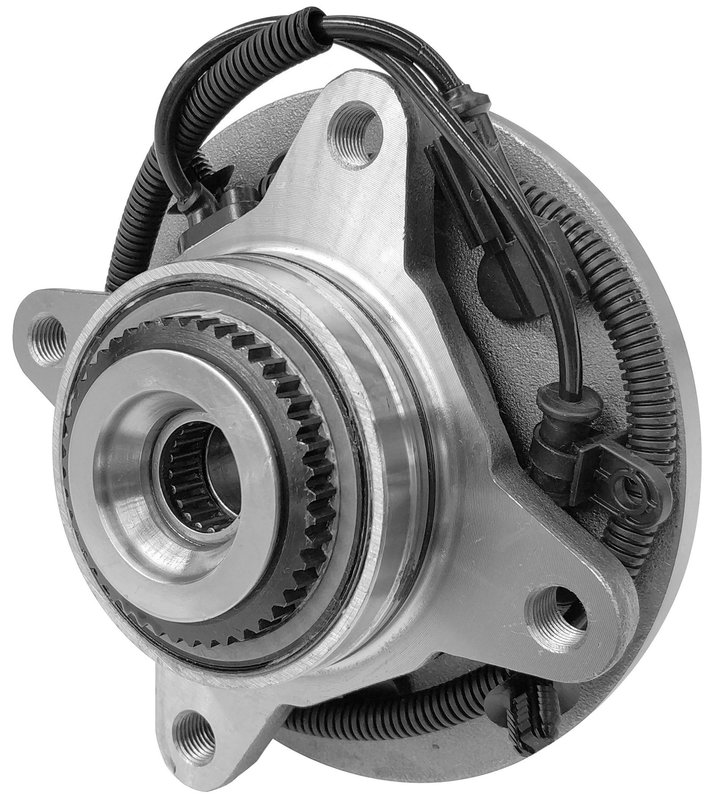

Overview of FAG Wheel Bearing and Hub Assembly 103328

The FAG wheel bearing and hub assembly 103328 is engineered for reliable performance in Ford F-150 trucks. Designed to meet precise specifications, this component ensures proper wheel alignment and smooth rotation, critical for driveline and axle functionality.

• Compatible with Ford F-150 models
• 6 wheel studs for secure mounting
• Includes ABS tone ring with incremental washer (ICW) for accurate sensor readings
• Flange diameter of 183 mm (7.205 inches) for proper fitment
• Hub bolt hole diameter of 160 mm (6.299 inches) for secure attachment
• Brake pilot diameter of 90 mm (3.543 inches) for brake component alignment
• Outer diameter wheel centering at 87 mm (3.416 inches) to ensure wheel stability
• Width of wheel flange to knuckle flange is 45.5 mm (1.791 inches)

Technical Specifications and Features

This wheel bearing and hub assembly features a 6-stud configuration with a bolt hole diameter of 135 mm (5.315 inches), designed to fit the Ford F-150 precisely. The hub pilot diameter measures 99.3 mm (3.909 inches), providing accurate centering for the wheel hub. The flange diameter of 183 mm (7.205 inches) and the hub bolt hole diameter of 160 mm (6.299 inches) ensure a secure and stable connection to the vehicle’s knuckle. The included ABS tone ring with an incremental washer (ICW) supports the vehicle’s anti-lock braking system by delivering precise wheel speed data.

Applications and Problem Resolution

• Replaces worn or damaged wheel bearing and hub assemblies on Ford F-150 trucks
• Addresses wheel vibration and noise caused by bearing wear
• Restores proper ABS sensor function with integrated tone ring
• Corrects wheel alignment issues related to hub pilot wear
• Eliminates looseness or play in the wheel hub assembly

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Clean the mounting surface thoroughly to remove debris and corrosion. Verify that the bolt hole diameters and flange dimensions match the vehicle specifications. Use a calibrated torque wrench to tighten wheel studs and hub bolts to manufacturer-recommended torque values. Confirm ABS sensor wiring and connections are intact and properly aligned with the tone ring.

Quality Assurance and Warranty

FAG wheel bearing and hub assembly 103328 is manufactured to meet OEM standards for durability and performance. The integrated ABS tone ring is designed for compatibility with Ford F-150 braking systems. While specific warranty details are not provided, FAG products typically adhere to strict quality control processes to ensure reliability in driveline and axle applications.
