FAG 103336 Wheel Bearing and Hub Assembly - Front

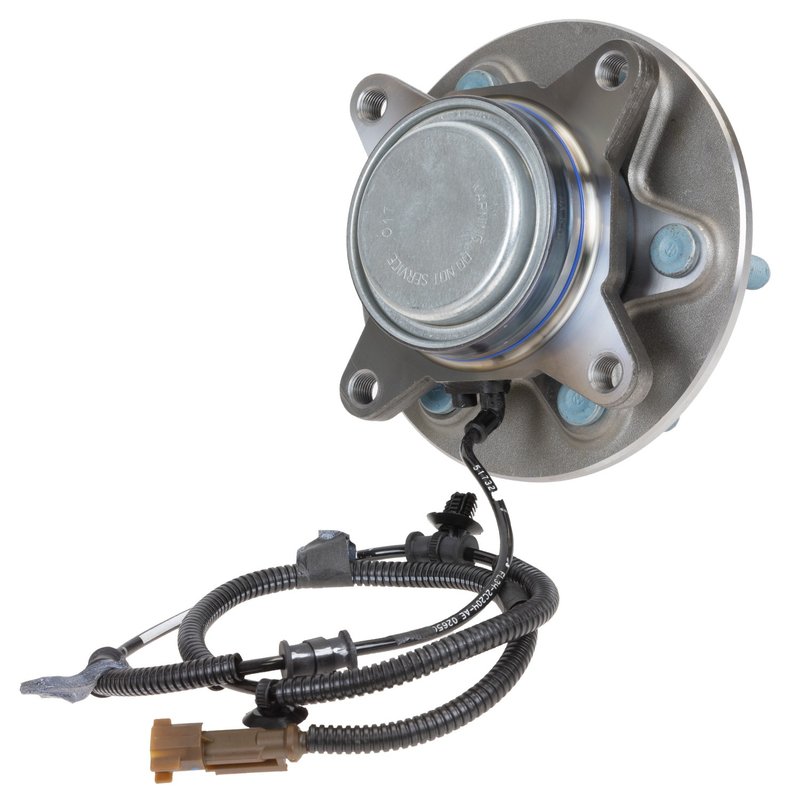

Overview of FAG Wheel Bearing and Hub Assembly 103336

The FAG 103336 wheel bearing and hub assembly is engineered for reliable performance in Ford F-150 trucks. Designed to meet precise specifications, this component ensures proper fitment and durability for driveline and axle applications.

• Compatible with Ford F-150 models
• 6 wheel studs for secure wheel mounting
• Includes ABS tone ring with incremental washer (ICW) for accurate sensor readings
• Flange diameter of 183 mm (7.205 inches) for proper wheel alignment
• Hub bolt hole diameter of 160 mm (6.299 inches) for exact fit

Technical Specifications and Features

This wheel bearing and hub assembly features a bolt hole diameter of 135 mm (5.315 inches) and a brake pilot diameter of 89.98 mm (3.543 inches), ensuring compatibility with the Ford F-150 brake system. The hub pilot diameter measures 99.3 mm (3.909 inches), providing precise centering of the hub on the axle flange. The assembly includes four inlet mounting holes and a flange width of 45.7 mm (1.799 inches), designed to maintain structural integrity and proper load distribution. The ABS tone ring is integrated with a gen 1, 2, and 3 incremental washer (ICW), supporting accurate anti-lock braking system functionality.

Application and Problem Solving

• Replaces worn or damaged wheel bearing and hub assemblies on Ford F-150 trucks
• Addresses wheel vibration and noise caused by bearing wear
• Restores proper ABS sensor operation with included tone ring
• Corrects wheel alignment issues related to hub pilot diameter wear
• Prevents premature tire wear due to hub flange or bolt hole damage

Installation Notes and Tips

Ensure the hub mounting surface and axle flange are clean and free of debris before installation. Verify that the bolt hole diameter and hub pilot diameter match the vehicle specifications to avoid fitment issues. Use a calibrated torque wrench to tighten wheel studs to manufacturer-recommended torque values. Confirm ABS sensor functionality after installation to ensure the tone ring is properly aligned.

Quality Assurance and Warranty

FAG wheel bearing and hub assemblies are manufactured to meet OEM standards for durability and performance. The 103336 part number undergoes rigorous quality control to ensure precise dimensions and reliable operation. While specific warranty details are not provided, FAG products typically come with manufacturer-backed quality assurance to support long-term use in Ford F-150 vehicles.
