FAG 103337 Wheel Bearing and Hub Assembly - Rear

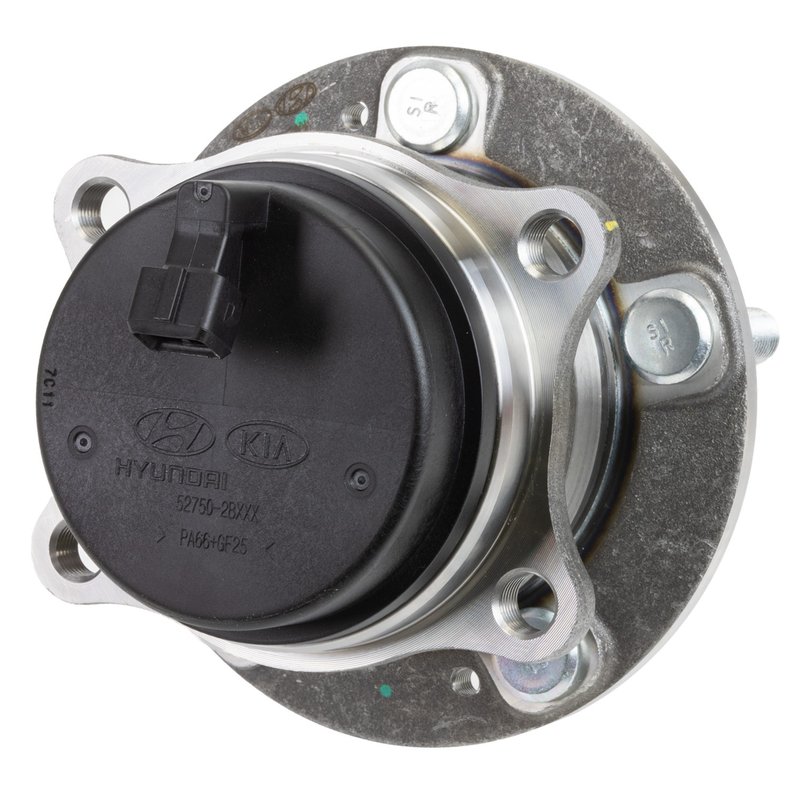

Overview of FAG 103337 Wheel Bearing and Hub Assembly

The FAG 103337 wheel bearing and hub assembly is engineered for reliable performance on Kia Sedona models. Designed to meet precise specifications, this component ensures proper wheel alignment and smooth rotation, contributing to vehicle safety and handling.

• Bolt hole diameter: 114.3 mm (4.500 inches)
• Brake pilot diameter: 69 mm (2.717 inches)
• Wheel stud quantity: 5
• Hub pilot diameter: 92 mm (3.622 inches)
• Flange diameter: 139 mm (5.472 inches)
• Inlet mounting hole quantity: 4
• Outer diameter wheel centering: 67 mm (2.638 inches)
• Width wheel flange to knuckle flange: 53.4 mm (2.102 inches)
• Includes ABS tone ring with incremental washer (ICW) for enhanced sensor compatibility

Technical Details and Specifications

This wheel bearing and hub assembly from FAG is designed specifically for Kia Sedona vehicles, ensuring a precise fit and optimal function. The assembly features a 5-stud wheel configuration with a bolt hole diameter of 114.3 mm, matching the Sedona’s wheel mounting requirements. The brake pilot diameter of 69 mm and hub pilot diameter of 92 mm provide accurate centering for brake components and the wheel hub, reducing vibration and improving braking performance. The flange diameter of 139 mm and the 4 inlet mounting holes secure the assembly firmly to the knuckle flange, which measures 53.4 mm in width. Additionally, the included ABS tone ring with an incremental washer supports the vehicle’s anti-lock braking system for reliable sensor readings.

Compatible Vehicles and Applications

• Compatible with Kia Sedona models requiring part number 103337
• Designed for driveline and axle applications involving wheel bearing and hub assemblies
• Suitable for replacing worn or damaged wheel bearings to restore proper wheel function
• Addresses issues related to wheel noise, vibration, and ABS sensor errors
• Helps maintain vehicle stability and steering precision

Installation Notes and Tips

When installing the FAG 103337 wheel bearing and hub assembly, ensure the mounting surface is clean and free of debris to achieve proper seating. Verify the bolt hole alignment matches the 114.3 mm diameter specification and torque all fasteners to manufacturer-recommended values. The ABS tone ring should be handled carefully to avoid damage, as it is critical for accurate ABS sensor operation. It is recommended to inspect related suspension and braking components during installation for any signs of wear.
