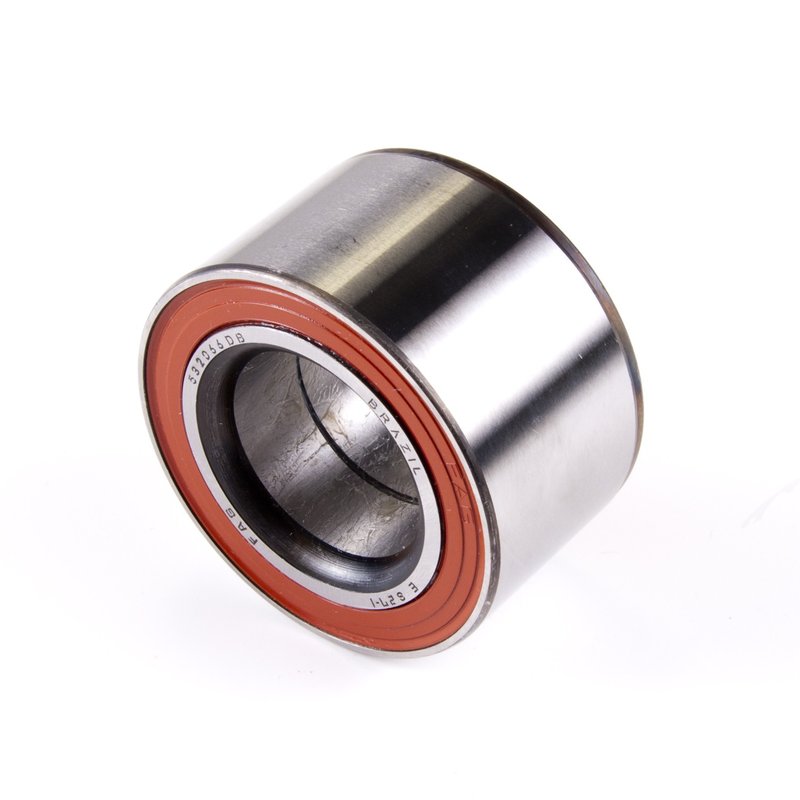

FAG 532066DB Wheel Bearing - Front or Rear

Wheel Bearing for Front and Rear Applications

The FAG 532066DB wheel bearing is a first-generation compact bearing unit built with preset bearing clearance, lifetime lubrication, and sealing for maintenance-free operation. It is engineered for front and rear wheel applications where consistent rotation, stable fitment, and sealed protection matter.

Compatible With Chevrolet Spark, Chevrolet Aveo, Chevrolet Aveo5, Pontiac G3, Pontiac Wave, Honda Civic, Volkswagen Cabriolet, and other listed applications, this bearing supports a wide range of import and domestic compact vehicles. The FAG 532066DB is also cross-referenced to Timken SET35 and Gates B35 for the same application.

Key Features

• FAG wheel bearing, part number 532066DB
• First-generation compact bearing unit with preset bearing clearance
• Lifetime lubrication for maintenance-free service
• Sealed design to help keep contaminants out
• Angular contact ball bearing construction for front and rear wheel use
• Inside diameter: 34 mm (1.339 in)
• Outside diameter: 64 mm (2.52 in)
• Height: 37 mm (1.457 in)

Detailed Description

This FAG wheel bearing is designed for vehicles that use a compact, sealed hub-style bearing solution. Its angular contact ball bearing design helps maintain smooth wheel rotation under demanding driving conditions, while the preset clearance and sealed lubrication reduce routine service needs. The FAG 532066DB is used across multiple front and rear applications, including 2011-2015 Chevrolet Spark front, 2004-2014 Chevrolet Aveo front, 2006-2011 Chevrolet Aveo5 front, 2009-2010 Pontiac G3 front, 2005-2008 Pontiac Wave front, 1985-1993 Volkswagen Cabriolet front, and 1985-1991 Honda Civic front.

Additional fitment includes 1988-1991 Honda Civic rear, 1980-1984 Volkswagen Jetta front, 1985-1989 Isuzu I-Mark front, and 1989 Geo Spectrum front in listed suspension configurations. The FAG 532066DB is a direct-fit wheel bearing reference for many compact car repair jobs where bearing noise, looseness, or seal failure has occurred.

What This Part Helps Address

• Wheel bearing noise such as humming or growling from the hub area
• Excess wheel play or looseness caused by worn bearing surfaces
• Seal failure that allows grease loss or contamination
• Rough wheel rotation from bearing wear or damage
• Front or rear bearing replacement on listed Chevrolet, Honda, Pontiac, Suzuki, Volkswagen, Geo, and Isuzu models

Installation Notes and Tips

Verify the vehicle year, make, model, and wheel position before ordering. This bearing is listed for front and rear use depending on application, so match the exact fitment row for your vehicle. Inspect the hub, spindle, and surrounding components for wear or scoring before installation, and confirm the bearing dimensions match the original part: 34 mm inside diameter, 64 mm outside diameter, and 37 mm height.

For best results, follow the vehicle service procedure for bearing removal and installation, and confirm proper seating and torque specifications during assembly.

Quality Assurance

FAG is part of Schaeffler, a recognized bearing manufacturer with OE-focused engineering. The 532066DB is built as a sealed, lubricated wheel bearing unit for consistent service in the listed applications.
