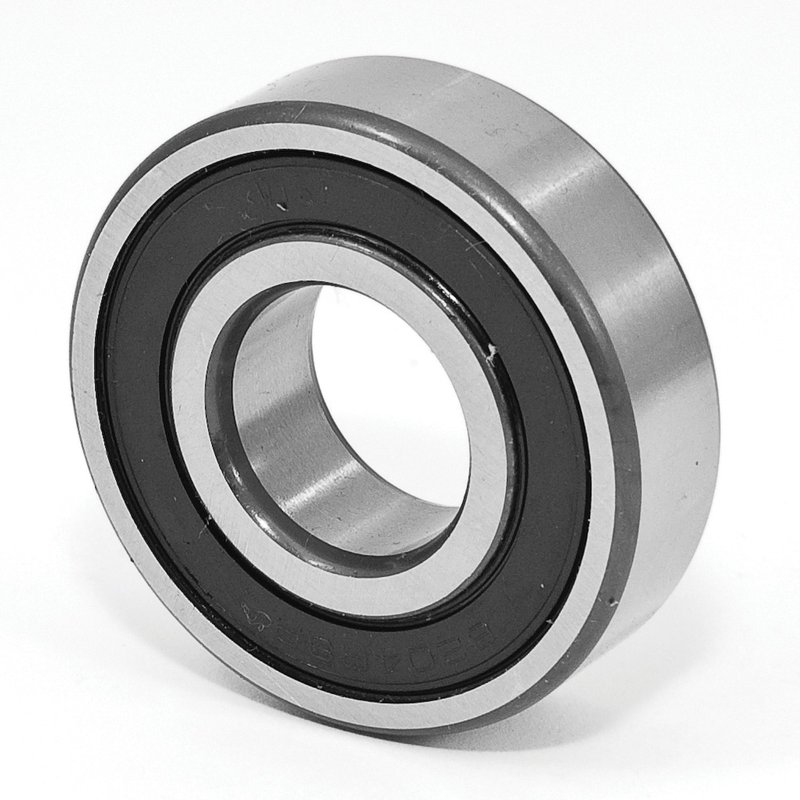

FAG 6204-2RSR-C3 Generator Drive End Bearing - Front or Rear

Reliable Generator Drive End Bearing for Chevrolet, Ford, Mercury, and Toyota

The FAG 6204-2RSR-C3 generator drive end bearing is engineered to provide consistent performance in a variety of vehicle applications. Designed with precise dimensions, this bearing supports smooth operation in models such as the Toyota Camry, Ford F-250, and Chevrolet Pickup.

• Inside diameter options: 0.787 inches (20 mm)
• Width options: 0.551 inches (14 mm)
• Outside diameter options: 1.850 inches (47 mm)
• Sealed design for protection against contaminants
• Compatible with multiple vehicle makes and models

Technical Specifications and Design Details

The FAG 6204-2RSR-C3 bearing features dual rubber seals (2RSR) that help prevent dirt and moisture ingress, extending the service life of the generator's drive end. The C3 clearance rating ensures additional internal clearance, accommodating thermal expansion and reducing the risk of premature wear under operating conditions. With an inside diameter of 20 mm (.787 inches), a width of 14 mm (.551 inches), and an outside diameter of 47 mm (1.850 inches), this bearing fits precisely in the generator assemblies of various Chevrolet, Ford, Mercury, and Toyota vehicles.

Compatible Vehicles and Applications

This generator drive end bearing is compatible with a range of vehicles, including:

• Chevrolet Colony Park, Pickup, Van
• Ford F-100, F-250, F-350, LUV, Pickup
• Mercury Villager
• Toyota 4Runner, Camry, Celica, Corolla, Cressida, Supra, Tercel

Common Issues Addressed by the FAG 6204-2RSR-C3 Bearing

• Excessive noise or grinding from the generator drive end
• Generator failure due to bearing wear or contamination
• Reduced generator efficiency caused by bearing misalignment
• Overheating of the generator drive assembly
• Premature bearing failure from inadequate sealing

Installation Notes and Tips

Ensure the bearing is installed with proper alignment to avoid uneven wear. Clean the housing and shaft thoroughly before installation to prevent contamination. Use appropriate tools to press the bearing into place without applying force to the seals. Verify the bearing clearance matches the C3 specification to maintain optimal performance.

Quality Assurance and Warranty

FAG bearings are manufactured to meet strict quality standards, ensuring durability and reliable operation in automotive electrical systems. The 6204-2RSR-C3 part number is backed by FAG's quality control processes, although specific warranty details should be confirmed with the supplier or manufacturer.
