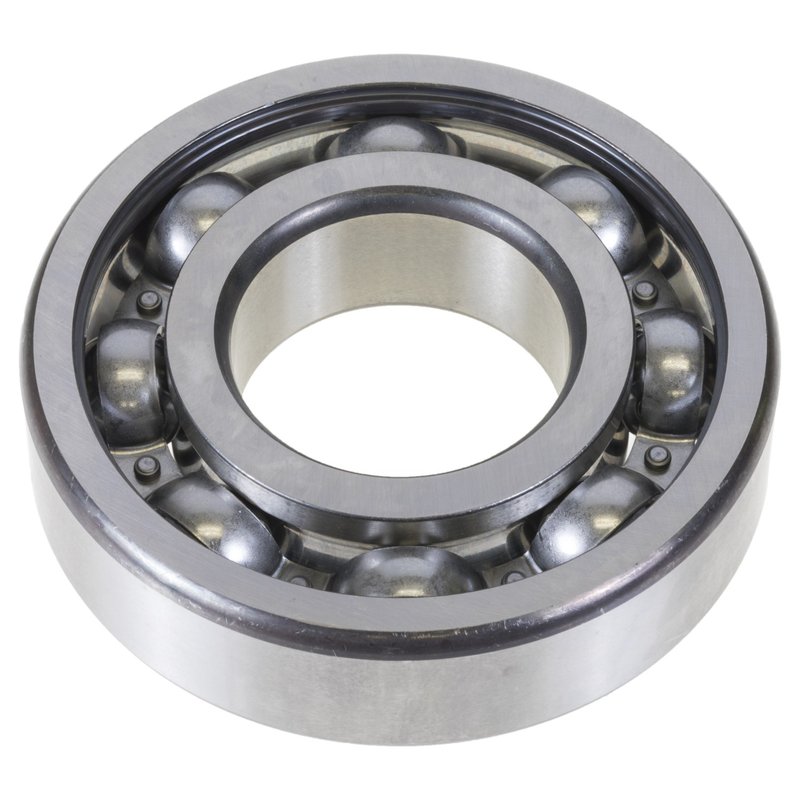

FAG 6308 Manual Transmission Main Shaft Pilot Bearing - Front or Rear

Overview of FAG 6308 Manual Transmission Main Shaft Pilot Bearing

The FAG 6308 manual transmission main shaft pilot bearing is engineered for reliable performance in select Ford and Nissan vehicles. Designed to support the main shaft, this bearing ensures smooth operation and durability in demanding transmission applications.

• Compatible with Ford F-250, F-250 Super Duty, F-350, and Nissan 720, D21 models
• Bearing inside diameter options: 1.575 inches and 40.005 mm
• Bearing outside diameter options: 3.543 inches and 89.992 mm
• Length dimensions: 0.925 inches and 23.495 mm
• Part number 6308 for precise identification and fitment

Technical Specifications and Design Details

The FAG 6308 pilot bearing features dual measurement units reflecting its precise engineering. With an inside diameter of 1.575 inches (40.005 mm) and an outside diameter of 3.543 inches (89.992 mm), this bearing is designed to fit the main shaft of manual transmissions in specific Ford and Nissan models. The length measurements of 0.925 inches (23.495 mm) ensure proper engagement and support within the transmission assembly. These dimensions are critical for maintaining alignment and reducing wear on the transmission components.

Applications and Problem Solving

This manual transmission main shaft pilot bearing is used primarily to support the main shaft in manual transmissions, facilitating smooth rotation and reducing friction. It addresses several common issues including:

• Excessive transmission noise due to worn or damaged pilot bearings
• Vibration or rough shifting caused by misaligned main shaft support
• Premature wear of transmission components from inadequate bearing support
• Transmission overheating linked to increased friction in the pilot bearing area
• Difficulty in clutch engagement related to bearing failure

Installation Notes and Tips

When installing the FAG 6308 pilot bearing, ensure the transmission main shaft and housing are clean and free of debris. Proper alignment during installation is essential to prevent premature bearing failure. Use appropriate tools to press the bearing into place without applying excessive force that could damage the bearing or transmission components. Verify fitment compatibility with Ford F-250, F-250 Super Duty, F-350, Nissan 720, and D21 models before installation.

Quality Assurance and Warranty

FAG bearings are manufactured to meet stringent quality standards, ensuring durability and reliable performance in automotive transmission applications. The 6308 pilot bearing undergoes rigorous testing to comply with OEM specifications. While specific warranty details may vary, FAG products typically include coverage against manufacturing defects to provide confidence in long-term use.
