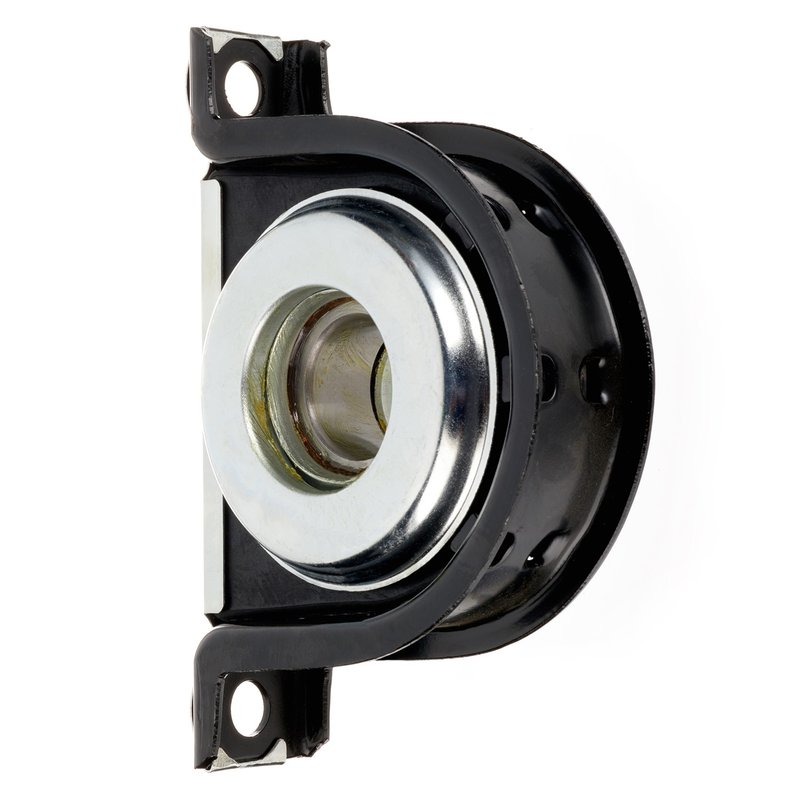

FAG CH0153 Drive Shaft Center Support Bearing

Overview of FAG Drive Shaft Center Support Bearing CH0153

The FAG Drive Shaft Center Support Bearing CH0153 is engineered for reliable driveline performance in select Dodge and Ford vehicles. Designed to provide stable support for the drive shaft, this bearing helps maintain smooth rotational movement and reduces vibration in your vehicle's driveline system.

• Compatible with Dodge B100, B150, B200, B250, B300, B350, D100, D150, D200, D250, D300, D350, Dakota, Ram 1500, Ram 2500, Ram 3500, W150, and W300 models
• Part number CH0153 for precise identification and fitment
• Inside diameter measures 1.378 inches (35 mm) ensuring proper shaft fit
• Width of 1.823 inches (46.3 mm) for optimal bearing housing compatibility
• Height of 7.874 inches (200 mm) and length of 2.126 inches (54 mm) for accurate positioning and support

Technical Specifications and Design Details

The CH0153 drive shaft center support bearing from FAG is manufactured with exacting dimensional standards to fit specific Dodge and Ford truck models. The inside diameter of 1.378 inches (35 mm) matches the drive shaft diameter, allowing for a secure and stable fit. The width of 1.823 inches (46.3 mm) and height of 7.874 inches (200 mm) provide the necessary clearance and support to reduce shaft deflection and vibration during operation. The length dimensions of 2.126 inches (54 mm) ensure the bearing aligns correctly within the driveline assembly, contributing to overall driveline stability and longevity.

Applications and Problem Solving

• Reduces excessive vibration and noise in the driveline of Dodge Ram 1500 and Ford F-250 Super Duty trucks
• Prevents premature wear of drive shaft components by maintaining proper alignment
• Addresses issues related to drive shaft wobble or misalignment in Dodge Dakota and Ford F-250 models
• Supports the drive shaft in heavy-duty applications for Dodge B-series and Ford W-series trucks
• Helps restore driveline smoothness and reduces stress on universal joints

Installation Notes and Tips

When installing the FAG CH0153 center support bearing, ensure the drive shaft is clean and free of debris. Proper alignment is critical to avoid premature bearing failure. Use appropriate tools to press the bearing into place without damaging the rubber or metal components. Verify that the bearing’s inside diameter matches the drive shaft diameter to ensure a snug fit. It is recommended to inspect related driveline components such as universal joints and seals during installation.

Quality Assurance and Warranty Information

FAG manufactures the CH0153 drive shaft center support bearing to meet stringent quality standards for durability and performance. This part undergoes rigorous testing to ensure it meets OEM specifications for fit and function. While specific warranty details may vary, FAG typically offers coverage against manufacturing defects to provide confidence in the product’s reliability for Dodge and Ford driveline applications.
