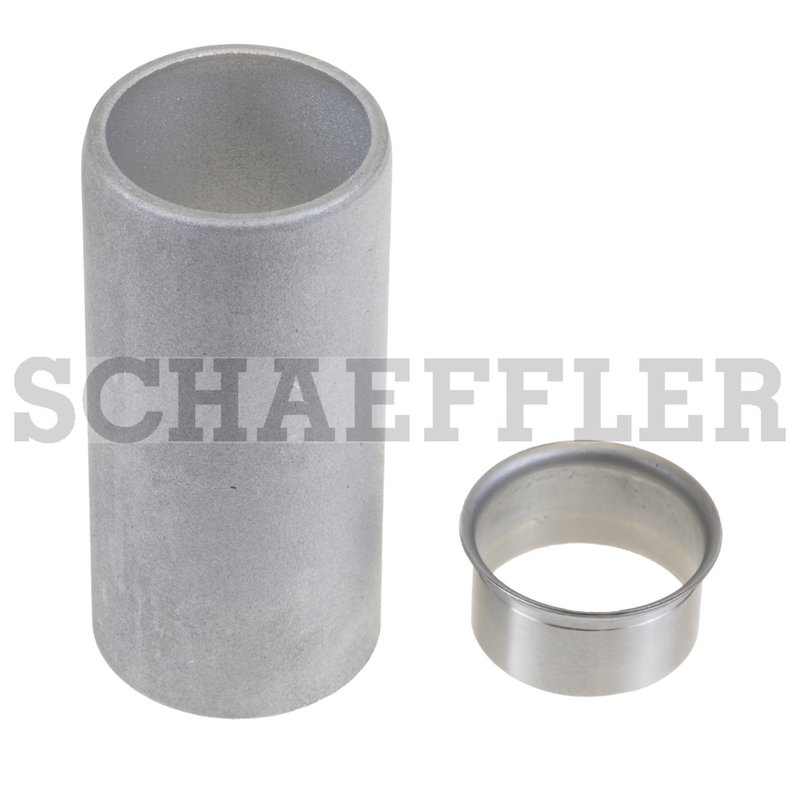

FAG SR3454 Power Steering Pump Drive Shaft Sleeve

Precision Repair Sleeve for Steering Hardware

The FAG SR3454 repair sleeve restores sealing performance on damaged shafts without requiring shaft removal or machining. Made from heat-treated stainless steel, it adds a durable wear surface that helps extend shaft life in steering and power steering pump drive applications.

Compatible With a wide range of vehicles, including Toyota Yaris, Toyota Prius, Hyundai Sonata, Mitsubishi Galant, and Kia Optima applications where the shaft dimensions match the listed specifications.

Key Features

• Precision repair sleeve for damaged shaft sealing surfaces
• Heat-treated stainless steel construction for added wear resistance
• Helps prevent premature shaft wear and leakage
• No shaft removal or machining required for installation
• Part number SR3454 for easy identification
• Cross-reference: This part cross-references Timken KWK99078 for the same application.

Detailed Product Overview

The FAG SR3454 is a power steering pump drive shaft sleeve engineered to provide additional sealing where the original shaft surface has worn or been damaged. Its precision dimensions include a 0.787-inch shaft diameter, 0.315-inch width on shaft, 0.433-inch overall width, 0.93-inch flange diameter, and 2-inch installation depth. These measurements help ensure proper coverage on the repair area while maintaining a secure fit.

Use this sleeve when servicing steering hardware on vehicles such as 2001-2010 Kia Optima, 2001-2009 Toyota Prius, 2006-2008 Toyota Yaris, 2001-2005 Hyundai Sonata, and 1993-2001 Honda Prelude applications listed in the fitment data. The FAG SR3454 is also referenced under global number 413 3454 100 in several catalog listings.

What It Helps Fix

• Shaft surface wear that causes seal leakage
• Grooving or scoring on the drive shaft sealing area
• Premature wear in steering pump shaft contact points
• Costly shaft replacement when the base shaft remains serviceable
• Repair jobs that need a no-machining solution

Installation Notes and Tips

Confirm shaft diameter and sleeve dimensions before installation. The sleeve installs over the damaged area to create a new sealing surface, so clean the shaft thoroughly and inspect for excessive wear before proceeding. Because no machining is required, the repair process is straightforward for service technicians working on compatible steering components.

Fits 2007-2012 Kia Rondo, N/A; Fits 2005-2012 Mitsubishi Galant, N/A; Fits 2012 Toyota Yaris, N/A; Fits 2001-2010 Kia Optima, N/A; Fits 2001-2009 Toyota Prius, N/A; Fits 2005-2008 Kia Magentis, N/A; Fits 1993-2008 Mitsubishi Eclipse, N/A; Fits 2004-2006 Mitsubishi Lancer, N/A; Fits 2005-2006 Mitsubishi Outlander, N/A; Fits 2004-2006 Scion xA, N/A; Fits 2004-2006 Scion xB, N/A; Fits 2002-2005 Chrysler Sebring, N/A; Fits 1996-2005 Hyundai Elantra, N/A; Fits 2001-2005 Hyundai Sonata, N/A; Fits 2003-2005 Hyundai Tiburon, N/A; Fits 2000-2005 Toyota Echo, N/A; Fits 2004 Dodge Stratus, N/A; Fits 1998-2001 Chevrolet Metro, N/A; Fits 2001 Chrysler Sebring, N/A; Fits 1997-2001 Honda Prelude, N/A; Fits 1989-2001 Suzuki Swift, N/A; Fits 1997-2000 Honda CR-V, N/A; Fits 1994-2000 Pontiac Firefly, N/A; Fits 1997-1999 Mitsubishi Montero Sport, N/A; Fits 1999 Toyota Paseo, N/A; Fits 1999 Toyota Tercel, N/A; Fits 1992-1998 Toyota Paseo, N/A; Fits 1991-1998 Toyota Tercel, N/A; Fits 1989-1997 Geo Metro, N/A; Fits 1993-1997 Nissan Quest, N/A; Fits 1987-1996 Mitsubishi Mighty Max, N/A; Fits 1992-1995 Mitsubishi Expo, N/A; Fits 1990-1994 Plymouth Laser, N/A; Fits 1991-1993 Dodge Ram 50, N/A; Fits 1987-1993 Volkswagen Fox, N/A; Fits 1985-1992 Dodge Colt, N/A; Fits 1990-1992 Mitsubishi Eclipse, N/A; Fits 1991-1992 Mitsubishi Mirage, N/A; Fits 1985-1991 Chevrolet Sprint, N/A; Fits 1987-1991 Pontiac Tempest, N/A; Fits 1987-1990 Dodge Ram 50, N/A; Fits 1987-1990 Mitsubishi Van, N/A; Fits 1984-1988 Mitsubishi Cordia, N/A; Fits 1985-1988 Pontiac Sunburst, N/A; Fits 1986-1988 Suzuki Forsa, N/A; Fits 1980-1987 Audi 4000, N/A; Fits 1987 Hyundai Stellar, N/A; Fits 1986 Mitsubishi Tredia, N/A; Fits 1982-1986 Volkswagen Quantum, N/A; Fits 1976-1981 Buick Century, N/A; Fits 1973-1974 Buick Century, N/A; Fits 1977-1980 Pontiac Sunbird, N/A; Fits 1976-1980 Subaru Standard, N/A; Fits 1976-1979 Buick Skyhawk, N/A; Fits 1976-1979 Buick Skylark, N/A; Fits 1966-1970 Buick Skylark, N/A; Fits 1977-1979 Porsche 924, N/A.

Quality Assurance

FAG manufactures this repair sleeve as a precision stainless steel service part for restoring shaft sealing surfaces. The heat-treated construction supports long-term wear resistance in steering repair applications, and the exact dimensions help technicians match the sleeve to the shaft during service.
