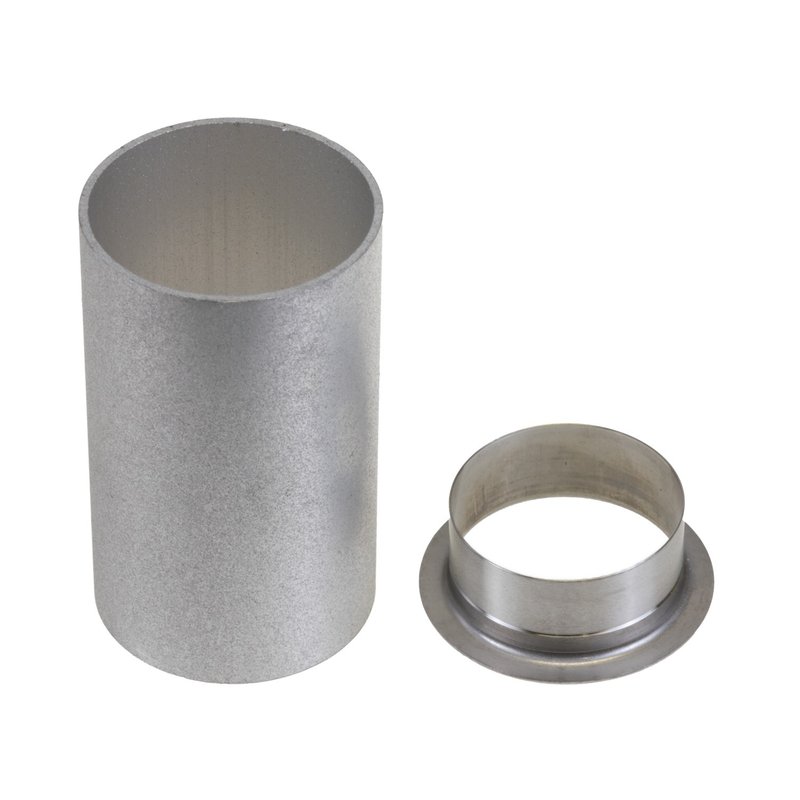

FAG SR3459 Engine Timing Cover Repair Sleeve - Front
| Brand | FAG SR3459 |
|---|---|
| Position | Front |
| Width On Shaft | 0.315 |
| Width On Shaft | 8.001 |
| Installation Depth | 1.813 |
| Installation Depth | 46.05 |
| Width | 0.472 |
| Width | 11.989 |
| Shaft Diameter | 1.024 |
| Shaft Diameter | 26.01 |
| Flange Diameter | 1.313 |
| Flange Diameter | 33.35 |
| Fits | INFINITI, Nissan, Pontiac, Saab, Scion, Toyota, and Volkswagen · 86 vehicles |
Precision repair sleeve. Adds sealing for damaged shafts without machining or shaft removal.
Heat-treated stainless steel. Helps protect worn surfaces and extend shaft life.
Cost-effective repair. A practical solution for restoring damaged surfaces.
Cross-references Remy 99103, 4133459100 and KWK99103 for the same application. See all 3.
Engine Timing Cover Repair Sleeve for Precise Shaft Sealing
The FAG SR3459 engine timing cover repair sleeve is a precision sealing solution for worn or damaged shaft surfaces. Made from heat-treated stainless steel, it restores a smooth sealing surface without shaft removal or machining, helping extend shaft service life and reduce repair time.
- Precision repair sleeve for damaged shaft sealing surfaces
- Heat-treated stainless steel construction for durability
- Helps prevent premature wear at the seal contact area
- No shaft removal or machining required for installation
- Dimensions: 1.024 in shaft diameter, 1.313 in flange diameter, 0.472 in width, 1.813 in installation depth
Detailed Application and Fitment
Use the FAG SR3459 when a shaft has wear, grooves, or surface damage that prevents a seal from seating properly. This repair sleeve provides an additional sealing surface for timing cover and related shaft repair work, making it a practical option for Toyota Prius, Toyota Yaris, Toyota Echo, Scion xA, Scion xB, Nissan Sentra, and other listed applications. The SR3459 is also cross-referenced to Remy 99103 for the same application.
Fits 2012-2014 Toyota Prius C, N/A. Fits 2007-2014 Toyota Yaris, N/A. Fits 2001-2009 Toyota Prius, N/A. Fits 2004-2006 Scion xA, N/A. Fits 2004-2006 Scion xB, N/A. Fits 2000-2005 Toyota Echo, N/A. Fits 2000-2001 Nissan Sentra, N/A. Fits 1995 Nissan Sentra, N/A. Fits 1982-1990 Nissan Sentra, N/A. Fits 1999 INFINITI G20, N/A. Fits 1996 INFINITI G20, N/A. Fits 1996-1997 Saab 900, N/A. Fits 1991-1995 INFINITI G20, N/A. Fits 1994-1995 Saab 900, N/A. Fits 1988-1993 Pontiac LeMans, N/A. Fits 1986-1990 Nissan Pulsar NX, N/A. Fits 1983-1984 Nissan Pulsar NX, N/A. Fits 1982-1986 Volkswagen Quantum, Front. Fits 1983 Nissan Pulsar, N/A. Fits 1982 Nissan 310, N/A.
Common Repair Uses
- Sealing leaks caused by a worn shaft surface
- Repairing grooves or scoring where the seal rides
- Reducing repeat seal failure after prior repairs
- Restoring sealing performance without replacing the shaft
- Supporting timing cover and shaft repair on listed Toyota, Nissan, Scion, Saab, Pontiac, INFINITI, and Volkswagen applications
Installation Notes and Tips
Measure the shaft diameter before installation and confirm the sleeve dimensions match the repair area. The sleeve installs over the damaged surface to create a new sealing track, so the shaft should be clean and free of debris before fitting. Verify the application by year, make, model, and position, especially for listings marked N/A or Front.
Quality Assurance
FAG manufactures this repair sleeve as a precision stainless steel component for sealing repair work. Its heat-treated construction is intended to provide a durable repair surface and help protect the shaft from further wear.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2014 | Toyota | Prius C | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2014 | Toyota | Yaris | — | 1.5L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2013 | Toyota | Prius C | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2013 | Toyota | Yaris | — | 1.5L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2012 | Toyota | Prius C | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2012 | Toyota | Yaris | — | 1.5L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2011 | Toyota | Yaris | — | 1.5L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2010 | Toyota | Yaris | — | 1.5L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2009 | Toyota | Prius | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2009 | Toyota | Yaris | — | 1.5L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2008 | Toyota | Prius | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2008 | Toyota | Yaris | — | 1.5L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2007 | Toyota | Prius | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2007 | Toyota | Yaris | — | 1.5L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2006 | Scion | xA | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2006 | Scion | xB | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2006 | Toyota | Prius | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2005 | Scion | xA | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2005 | Scion | xB | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2005 | Toyota | Echo | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2005 | Toyota | Prius | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2004 | Scion | xA | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2004 | Scion | xB | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2004 | Toyota | Echo | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2004 | Toyota | Prius | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2003 | Toyota | Echo | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2003 | Toyota | Prius | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2002 | Toyota | Echo | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2002 | Toyota | Echo | — | 1.5L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2002 | Toyota | Prius | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2001 | Nissan | Sentra | — | 1.8L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2001 | Nissan | Sentra | — | 2.0L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2001 | Toyota | Echo | — | 1.5L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2001 | Toyota | Echo | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2001 | Toyota | Prius | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2000 | Nissan | Sentra | — | 2.0L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2000 | Nissan | Sentra | — | 1.8L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2000 | Toyota | Echo | — | 1.5L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 2000 | Toyota | Echo | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1999 | INFINITI | G20 | — | — | — | N/A | Eaton 1715,1716 Axles; Schaeffler Seal Global Number 413 3459 100 |
| 1997 | Saab | 900 | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1996 | INFINITI | G20 | — | — | — | N/A | Eaton 1715,1716 Axles; Schaeffler Seal Global Number 413 3459 100 |
| 1996 | Saab | 900 | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1995 | INFINITI | G20 | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1995 | Nissan | Sentra | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1995 | Saab | 900 | — | — | — | N/A | From 02/01/1994; Schaeffler Seal Global Number 413 3459 100 |
| 1994 | INFINITI | G20 | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1994 | Saab | 900 | — | — | — | N/A | From 02/01/1994; Schaeffler Seal Global Number 413 3459 100 |
| 1993 | INFINITI | G20 | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1993 | Pontiac | LeMans | — | 1.6L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1993 | Pontiac | LeMans | — | 1.6L | L4 | N/A | SOHC; Schaeffler Seal Global Number 413 3459 100 |
| 1992 | INFINITI | G20 | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1992 | Pontiac | LeMans | — | 1.6L | L4 | N/A | SOHC; Schaeffler Seal Global Number 413 3459 100 |
| 1992 | Pontiac | LeMans | — | 1.6L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1991 | INFINITI | G20 | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1991 | Pontiac | LeMans | — | 1.6L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1991 | Pontiac | LeMans | — | 1.6L | L4 | N/A | SOHC; Schaeffler Seal Global Number 413 3459 100 |
| 1990 | Nissan | Pulsar NX | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1990 | Nissan | Sentra | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1990 | Pontiac | LeMans | — | 1.6L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1990 | Pontiac | LeMans | — | 1.6L | L4 | N/A | SOHC; Schaeffler Seal Global Number 413 3459 100 |
| 1989 | Nissan | Pulsar NX | — | 1.6L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1989 | Nissan | Sentra | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1989 | Pontiac | LeMans | — | 1.6L | L4 | N/A | SOHC; Schaeffler Seal Global Number 413 3459 100 |
| 1989 | Pontiac | LeMans | — | 1.6L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1988 | Nissan | Pulsar NX | — | 1.6L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1988 | Nissan | Sentra | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1988 | Pontiac | LeMans | — | 1.6L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1988 | Pontiac | LeMans | — | 1.6L | L4 | N/A | SOHC; Schaeffler Seal Global Number 413 3459 100 |
| 1987 | Nissan | Pulsar NX | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1987 | Nissan | Sentra | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1986 | Nissan | Pulsar NX | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1986 | Nissan | Sentra | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1986 | Volkswagen | Quantum | Automatic | — | — | Front | Schaeffler Seal Global Number 413 3459 100 |
| 1985 | Nissan | Sentra | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1985 | Volkswagen | Quantum | Automatic | — | — | Front | Schaeffler Seal Global Number 413 3459 100 |
| 1984 | Nissan | Pulsar NX | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1984 | Nissan | Sentra | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1984 | Volkswagen | Quantum | Automatic | — | — | Front | Schaeffler Seal Global Number 413 3459 100 |
| 1983 | Nissan | Pulsar | — | 1.6L | L4 | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1983 | Nissan | Pulsar NX | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1983 | Nissan | Sentra | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1983 | Volkswagen | Quantum | Automatic | — | — | Front | Schaeffler Seal Global Number 413 3459 100 |
| 1982 | Nissan | 310 | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1982 | Nissan | Sentra | — | — | — | N/A | Schaeffler Seal Global Number 413 3459 100 |
| 1982 | Volkswagen | Quantum | Automatic | — | — | Front | Schaeffler Seal Global Number 413 3459 100 |
