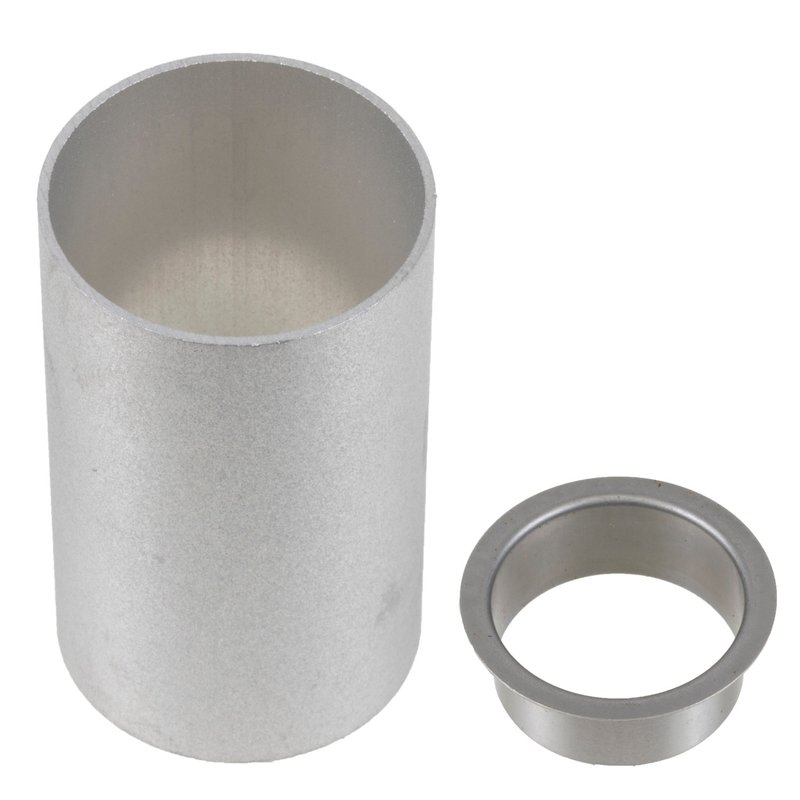

FAG SR3461 Engine Camshaft Repair Sleeve

Engine Camshaft Repair Sleeve for Shaft Sealing

The FAG SR3461 repair sleeve is a precision engine hardware solution for restoring sealing surfaces on damaged shafts. Made from heat-treated stainless steel, it helps extend shaft service life and reduce premature wear without requiring shaft removal or machining.

• Precision repair sleeve for damaged shaft sealing surfaces
• Heat-treated stainless steel construction
• Width on shaft: 0.375 in. (9.525 mm)
• Installation depth: 1.843 in. (46.812 mm)
• Overall width: 0.5 in. (12.7 mm)
• Shaft diameter: 1.102 in. (27.991 mm)
• Flange diameter: 1.375 in. (34.925 mm)
• FAG SR3461 part number for application matching

Detailed Application Overview

Use the FAG SR3461 when a shaft sealing surface is worn, grooved, or damaged and a direct repair is preferred over replacement or machining. This repair sleeve creates a renewed sealing surface that supports reliable oil or fluid control on engine-related shafts and other rotating components. It is a practical option for service work on vehicles such as Honda Accord, Honda CR-V, Acura TL, Volvo S60, and Ford Escape applications listed in the fitment data. This part cross-references Timken KWK99111 and OSC 99111 for the same application.

Common Problems It Can Address

• Oil seepage from a worn shaft sealing surface
• Grooves or scoring on the shaft where the seal rides
• Premature seal wear caused by surface damage
• Need for a repair without shaft removal or machining
• Costly component replacement when the shaft itself is still serviceable

Installation Notes and Tips

Measure the shaft diameter and installation depth before installation to confirm the sleeve matches the repair location. Clean the shaft thoroughly, inspect for burrs or heavy scoring, and follow the service procedure for the specific vehicle and position. Fitment coverage includes applications such as 2003-2005 Honda Accord, 2002-2008 Honda CR-V, 2004-2006 Acura TL, 2003-2009 Volvo S60, and 2005-2009 Ford Escape, with positions varying by vehicle and configuration. For best results, verify the exact side, axle, or rear/front location shown in the fitment list before service. The FAG SR3461 is also listed for vehicles including Honda Ridgeline, Volvo C70, and Nissan Altima applications in the catalog fitment data.

Quality Assurance

FAG is known for precision-engineered drivetrain and sealing components, and this repair sleeve is manufactured as a heat-treated stainless steel service part for dimensional stability and wear resistance. The SR3461 is built to restore sealing performance on damaged shafts while supporting a professional repair standard.
