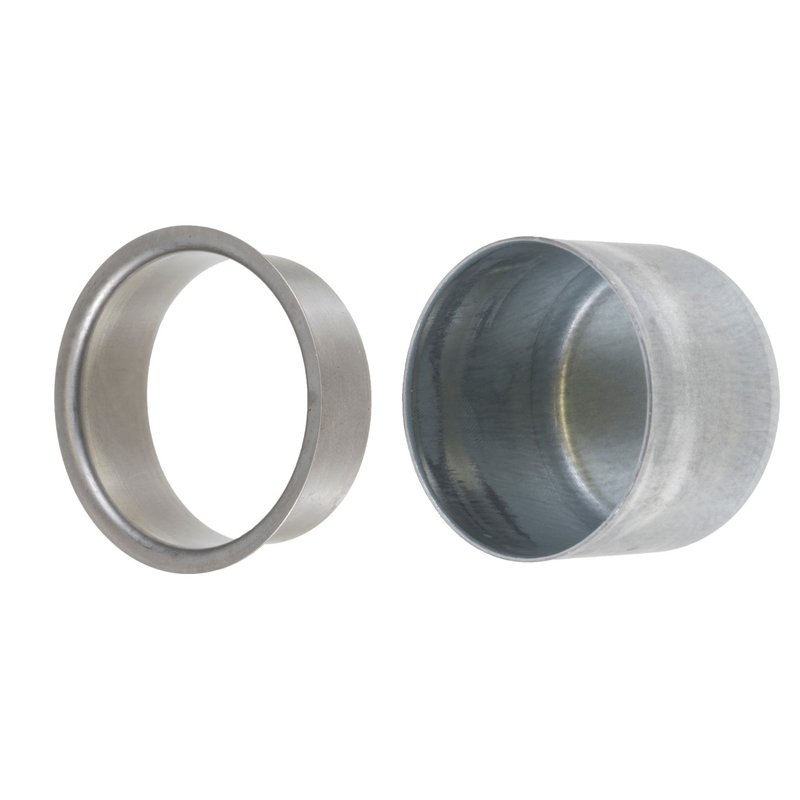

FAG SR3483 Engine Timing Cover Repair Sleeve

Reliable Engine Timing Cover Repair Sleeve for Multiple Vehicles

The FAG SR3483 Engine Timing Cover Repair Sleeve is designed to restore the integrity of your engine’s timing cover shaft. Engineered for precision, this repair sleeve fits a wide range of makes and models including Acura, BMW, Ford, Honda, Toyota, and Volkswagen, ensuring compatibility with many popular vehicles.

• Width on shaft: 0.512 inches (13.005 mm) and 0.63 inches (16.002 mm)
• Installation depth: 1.023 inches (25.984 mm)
• Shaft diameter: 1.578 inches (40.081 mm)
• Flange diameter: 1.85 inches (46.99 mm)
• Part number: SR3483 by FAG

Precision Engine Timing Cover Repair Sleeve Specifications

The SR3483 repair sleeve is manufactured with exacting tolerances to ensure a secure fit on the engine timing cover shaft. With a shaft diameter of 1.578 inches (40.081 mm) and flange diameter of 1.85 inches (46.99 mm), this sleeve provides a reliable seal and structural support. The installation depth of just over one inch (25.984 mm) allows for proper engagement without interfering with surrounding components. The dual width measurements on the shaft (0.512 inches and 0.63 inches) accommodate specific shaft profiles, making it suitable for a variety of engine designs.

Compatible Vehicles and Applications

This FAG SR3483 Engine Timing Cover Repair Sleeve is compatible with numerous vehicle makes and models, including but not limited to Acura, Audi, BMW, Chevrolet, Chrysler, Dodge, Ford, Honda, Lexus, Mercedes-Benz, Nissan, Toyota, Volkswagen, and Volvo. It fits models such as the BMW 318i, 325i, 328i, Ford F-150, Honda Accord, Toyota Camry, Volkswagen Passat, and many others. This part is ideal for restoring timing cover shafts on engines where wear or damage has compromised the seal or fitment.

• Restores worn or damaged timing cover shafts
• Prevents oil leaks around the timing cover
• Eliminates shaft wobble and vibration
• Supports proper timing cover alignment
• Extends engine component lifespan

Installation Notes and Tips

When installing the FAG SR3483 repair sleeve, ensure the shaft and timing cover surfaces are clean and free of debris. Proper measurement of the shaft diameter and flange diameter is critical to confirm compatibility. The installation depth of approximately 1.023 inches (25.984 mm) should be observed to avoid interference with adjacent engine parts. Use appropriate tools to press the sleeve evenly onto the shaft to prevent damage during installation.

Quality Assurance and Warranty

FAG manufactures the SR3483 Engine Timing Cover Repair Sleeve to meet stringent quality standards, ensuring durability and reliable performance. While specific warranty details are not provided, FAG products are known for their engineering precision and material quality, supporting long-term engine maintenance and repair needs.
