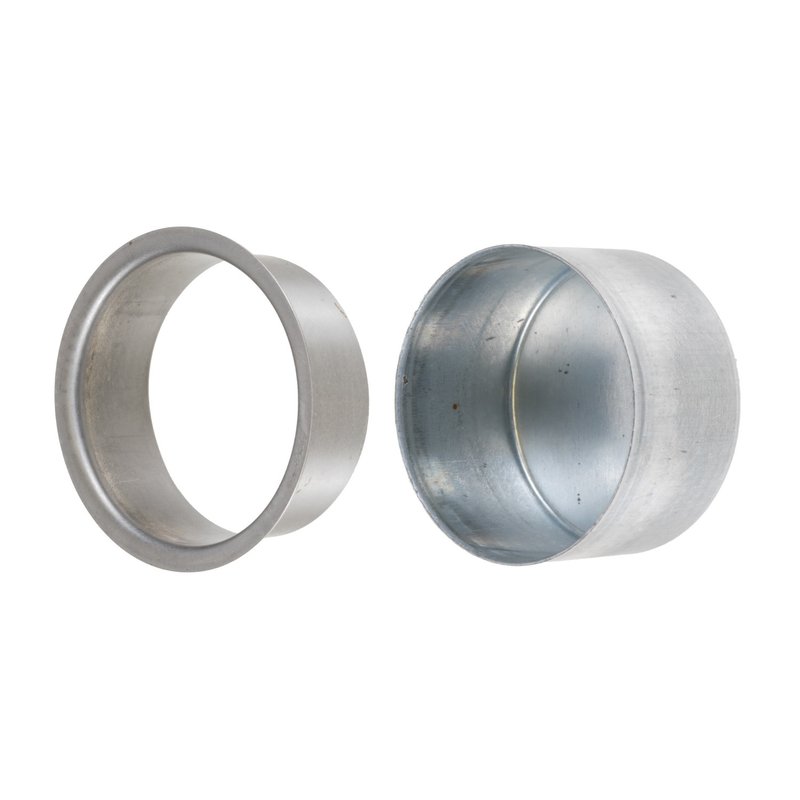

FAG SR3496 Automatic Transmission Pump Repair Sleeve - Front, Left or Rear

Overview of FAG SR3496 Automatic Transmission Pump Repair Sleeve

The FAG SR3496 Automatic Transmission Pump Repair Sleeve is engineered for precise fitment and reliable performance in a variety of automatic transmissions. Designed to meet OEM specifications, this repair sleeve is compatible with multiple vehicle makes and models, including Chevrolet, Ford, GMC, and Jeep.

• Width on shaft: 0.563 inches (14.3 mm)
• Installation depth: 0.813 inches (20.65 mm)
• Width: 0.688 inches (17.475 mm)
• Shaft diameter: 1.75 inches (44.45 mm)
• Flange diameter: 2.063 inches (52.4 mm)

Detailed Product Description

The SR3496 repair sleeve from FAG is designed to restore the integrity of the automatic transmission pump shaft. Its precise dimensions, including a shaft diameter of 1.75 inches and flange diameter of 2.063 inches, ensure a secure and accurate fit. The sleeve’s installation depth of 0.813 inches allows for proper seating within the transmission assembly, while the width on shaft measurements provide stability during operation. This part is suitable for use in a wide range of vehicles such as the Chevrolet Silverado 1500, Ford F-150, GMC Sierra, and Jeep Cherokee, among others.

Compatible Vehicles and Applications

This automatic transmission pump repair sleeve is compatible with numerous makes and models, including but not limited to:

• Buick LeSabre and Century
• Cadillac DeVille and Escalade
• Chevrolet Avalanche and Camaro
• Dodge Challenger and Ramcharger
• Ford Bronco and F-250
• GMC Sierra and Yukon
• Jeep Cherokee and Wrangler

Common Issues Addressed by SR3496 Repair Sleeve

• Wear and damage to the transmission pump shaft
• Leaks caused by worn or damaged pump sleeves
• Reduced transmission fluid pressure due to shaft misalignment
• Noise and vibration from loose or worn pump components
• Preventing further transmission damage by restoring proper pump function

Installation Notes and Tips

Ensure the transmission pump shaft is clean and free of debris before installing the SR3496 repair sleeve. Proper alignment during installation is critical to avoid premature wear. Use appropriate tools to press the sleeve onto the shaft without causing damage. Verify the installation depth and width measurements to confirm a secure fit. Consult the vehicle’s service manual for specific torque and assembly procedures.

Quality Assurance and Warranty

FAG manufactures the SR3496 repair sleeve to meet stringent quality standards, ensuring durability and reliable performance in demanding transmission applications. While specific warranty details are not provided, FAG products typically adhere to industry standards for material and workmanship quality.
