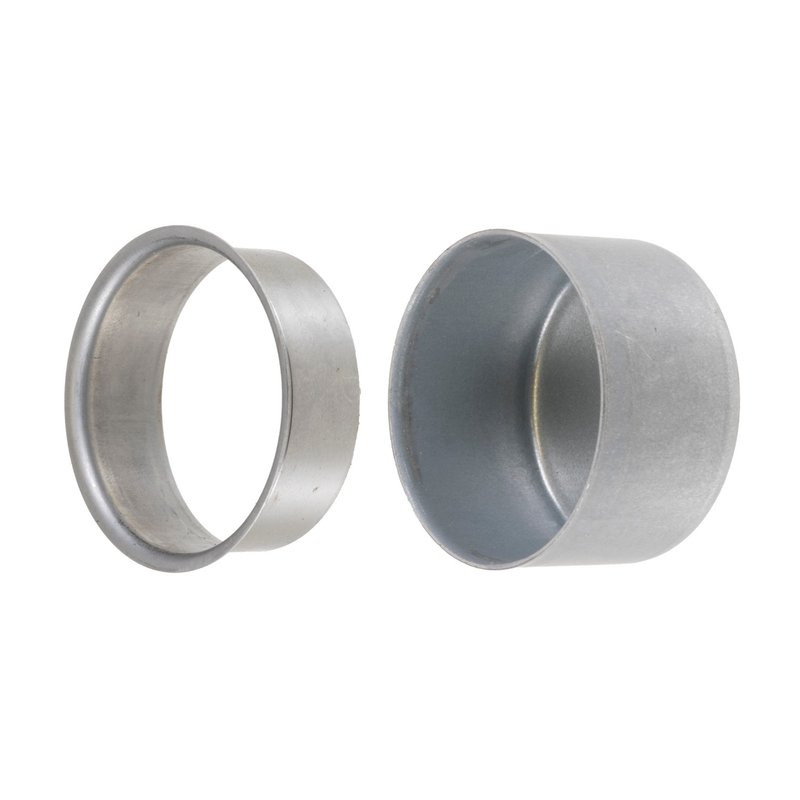

FAG SR3502 Engine Timing Cover Repair Sleeve - Front or Rear

Overview of FAG Engine Timing Cover Repair Sleeve SR3502

The FAG SR3502 Engine Timing Cover Repair Sleeve is designed to restore the integrity of engine timing covers on a variety of vehicles. Engineered for precision, this repair sleeve ensures a secure fit and reliable performance for models including Toyota 4Runner, Honda Accord, Jeep Grand Cherokee, and more.

• Width on shaft: 0.5 inches (12.7 mm) and 0.625 inches (15.875 mm)
• Installation depth: 0.844 inches (21.438 mm)
• Shaft diameter: 1.693 inches (43.002 mm)
• Flange diameter: 1.906 inches (48.412 mm)
• Compatible with multiple makes and models including Acura, Chrysler, Dodge, Honda, Hyundai, Jeep, Lexus, Mitsubishi, Porsche, Toyota, and others

Detailed Product Description

The FAG SR3502 repair sleeve is manufactured to precise dimensions to fit engine timing covers requiring a shaft diameter of approximately 1.693 inches and flange diameter near 1.906 inches. With installation depth of 0.844 inches, this sleeve provides a tight seal and helps prevent leaks or wear-related damage. The dual width measurements on the shaft (0.5 and 0.625 inches) accommodate specific engine configurations, ensuring compatibility with a wide range of vehicles such as the Dodge Charger, Honda Civic, Toyota Supra, and Jeep Wrangler.

Applications and Common Repair Uses

• Restores worn or damaged engine timing cover shafts
• Prevents oil leaks caused by shaft wear
• Maintains proper alignment of timing cover components
• Extends service life of engine timing cover assemblies
• Addresses shaft diameter wear issues in models like the Toyota 4Runner and Honda Accord

Installation Notes and Tips

Ensure the engine timing cover and shaft surfaces are clean and free of debris before installation. The SR3502 sleeve should be pressed into place with appropriate tools to avoid damage. Verify the installation depth of 0.844 inches to maintain proper fit and function. This part is compatible with a variety of vehicles including the Jeep Grand Cherokee and Lexus GX470, so confirm fitment with your specific model and year before installation.

Quality Assurance and Warranty

FAG manufactures the SR3502 Engine Timing Cover Repair Sleeve to meet strict quality standards, ensuring durability and reliable performance. While specific warranty details are not provided, FAG products are known for consistent engineering and material quality suitable for professional automotive repair applications.
