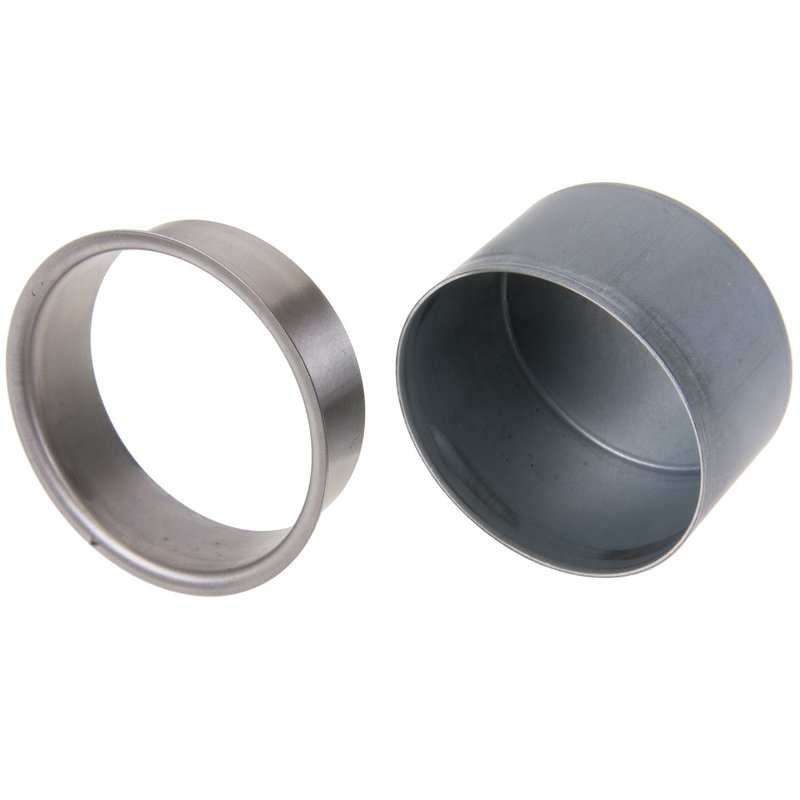

FAG SR3510 Engine Timing Cover Repair Sleeve

Overview of FAG Engine Timing Cover Repair Sleeve SR3510

The FAG SR3510 Engine Timing Cover Repair Sleeve is engineered for precise fitment and durability. Designed to restore the integrity of engine timing covers on a wide range of vehicles, this repair sleeve ensures reliable sealing and shaft protection.

• Width on shaft: 0.551 inches (13.995 mm) and 0.668 inches (16.967 mm)
• Installation depth: 0.984 inches (24.994 mm)
• Shaft diameter compatibility: 1.969 inches (50.013 mm)
• Flange diameter: 2.244 inches (56.998 mm)
• Compatible with multiple makes and models including BMW 540i, Chevrolet Camaro, Ford F-150, Toyota Camry, and Volkswagen Jetta

Detailed Product Description

The FAG SR3510 repair sleeve is designed to fit precisely over the engine timing cover shaft, providing a secure and durable seal. With a shaft diameter of approximately 1.969 inches (50.013 mm) and flange diameter of 2.244 inches (56.998 mm), this sleeve accommodates a variety of engine configurations. The installation depth of 0.984 inches (24.994 mm) ensures proper engagement for effective sealing and wear resistance. The dual width measurements on the shaft (0.551 inches and 0.668 inches) allow for a snug fit, reducing the risk of leaks and mechanical wear.

Applications and Common Repair Uses

• Repairing worn or damaged engine timing cover shafts
• Preventing oil leaks around the timing cover area
• Restoring proper sealing on engines with shaft diameter near 1.969 inches
• Addressing shaft wear in vehicles such as the BMW 540i, Ford F-150, and Toyota Camry
• Maintaining engine timing cover integrity in Chevrolet Camaro and Volkswagen Jetta models

Installation Notes and Tips

Ensure the engine timing cover and shaft are clean and free of debris before installation. Verify shaft diameter and flange dimensions to confirm compatibility with the SR3510 repair sleeve. Use appropriate tools to press the sleeve evenly onto the shaft to avoid damage. Proper installation depth of approximately 0.984 inches is critical for optimal performance and sealing.

Quality Assurance and Warranty

Manufactured by FAG, a reputable brand in automotive components, the SR3510 repair sleeve meets industry standards for durability and precision. While specific warranty details are not provided, FAG products typically undergo rigorous quality control to ensure reliable performance in engine repair applications.
