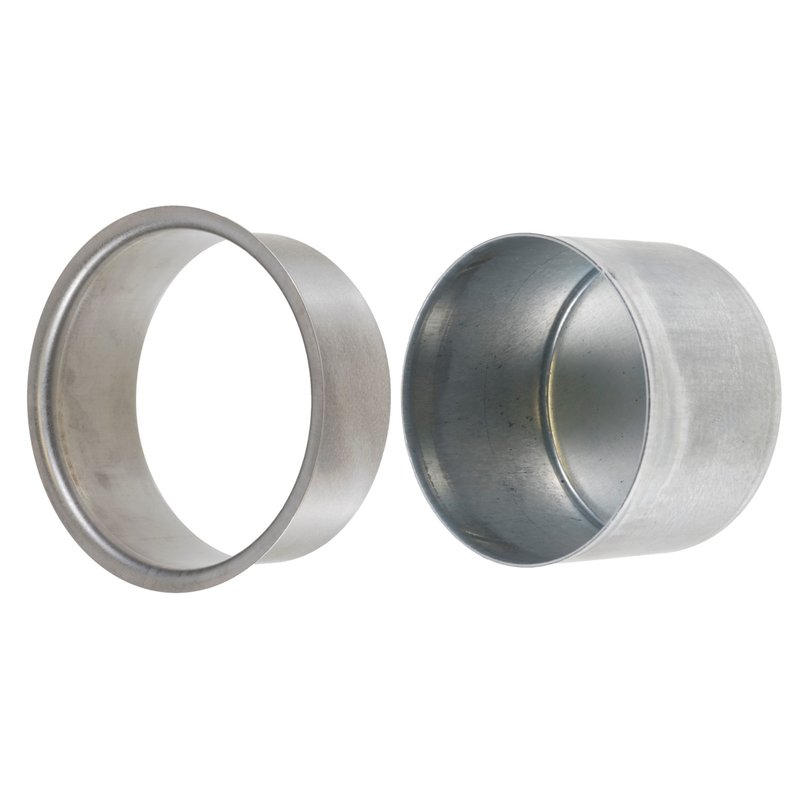

FAG SR3515 Engine Timing Cover Repair Sleeve

Overview of FAG Engine Timing Cover Repair Sleeve SR3515

The FAG SR3515 Engine Timing Cover Repair Sleeve is designed for precise fitment and reliable performance in various Chrysler, Dodge, Jeep, and Plymouth vehicles. Engineered to restore the integrity of the timing cover shaft, this repair sleeve ensures proper sealing and alignment for optimal engine operation.

• Width on shaft: 0.781 inches (19.837 mm) and 0.938 inches (23.825 mm)
• Installation depth: 1.313 inches (33.35 mm)
• Shaft diameter compatibility: 2.188 inches (55.575 mm)
• Flange diameter: 2.5 inches (63.5 mm)
• Part number: SR3515

Detailed Product Description

The FAG SR3515 repair sleeve is manufactured to exacting standards to fit the engine timing cover shafts of multiple vehicle models including Chrysler 300, Dodge Ram 1500, Jeep Grand Cherokee, and Plymouth Voyager among others. The sleeve’s dual width measurements on the shaft (0.781 and 0.938 inches) accommodate precise shaft dimensions, while the installation depth of 1.313 inches ensures a secure and stable fit. The shaft diameter of 2.188 inches and flange diameter of 2.5 inches provide compatibility with a range of engine timing cover assemblies, maintaining proper alignment and sealing to prevent oil leaks and wear.

Compatible Vehicles and Applications

This repair sleeve is compatible with a broad range of Chrysler, Dodge, Jeep, and Plymouth models, including but not limited to:

• Chrysler 300, Town & Country, LeBaron
• Dodge Ram 1500, Ram 2500, Ram 3500, Dakota, Durango, Charger, Challenger
• Jeep Grand Cherokee, Sprinter 2500, Sprinter 3500
• Plymouth B150, B250, B350, and others

Common Issues Addressed by the SR3515 Repair Sleeve

• Repairing worn or damaged engine timing cover shafts
• Preventing oil leaks caused by shaft wear
• Restoring proper shaft alignment within the timing cover
• Extending the service life of engine timing components
• Reducing engine noise related to timing cover shaft play

Installation Notes and Tips

Ensure the engine timing cover and shaft are clean and free of debris before installation. The SR3515 sleeve should be pressed onto the shaft to the specified installation depth of 1.313 inches for optimal fit. Verify flange diameter compatibility (2.5 inches) with the timing cover assembly to ensure proper sealing. Use appropriate tools to avoid damaging the sleeve or shaft during installation.

Quality Assurance and Warranty

FAG manufactures the SR3515 Engine Timing Cover Repair Sleeve to meet stringent quality standards, ensuring durability and reliable performance. While specific warranty details are not provided, FAG products are generally backed by manufacturer quality controls and are designed for long-term service in automotive engine applications.
