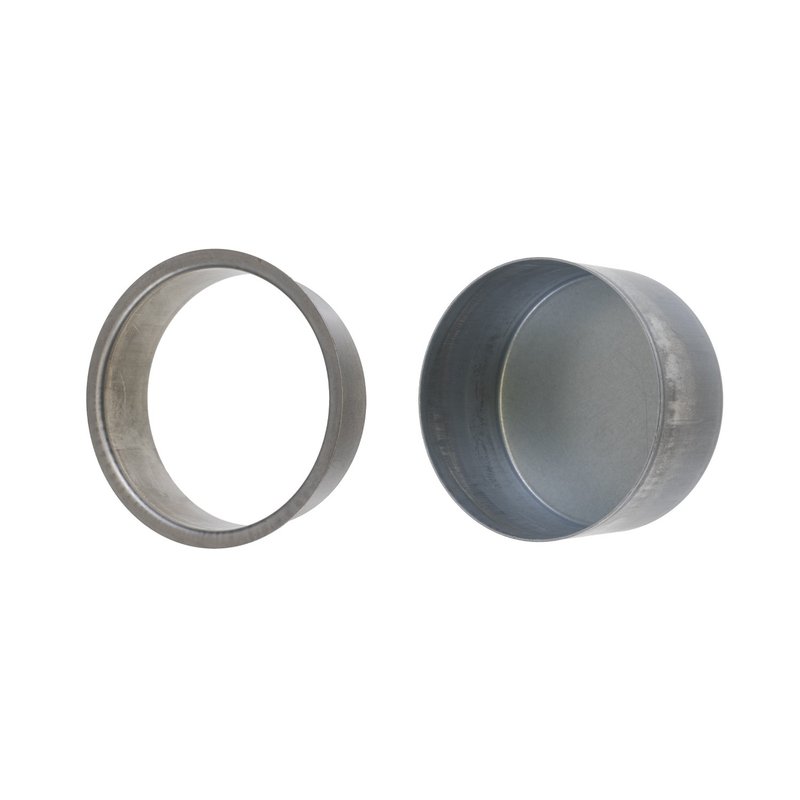

FAG SR3536 Manual Transmission Repair Sleeve - Front, Rear or Rear Inner
OE Quality 60-Day Returns
FAG

FAG SR3536 Manual Transmission Repair Sleeve - Front, Rear or Rear Inner

Brand FAG SR3536
Position Rear, Rear Inner, and Front
Width On Shaft 0.781
Width On Shaft 19.837
Installation Depth 1.25
Installation Depth 31.75
Width 0.938
Width 23.825
Shaft Diameter 2.75
Shaft Diameter 69.85
Flange Diameter 3.125
Flange Diameter 79.375
Fits Volkswagen · 19 vehicles

Precision repair sleeve. Adds sealing for damaged shafts without removal or machining.

Heat-treated stainless steel. Helps protect worn surfaces and resist premature wear.

A cost-effective transmission repair solution for damaged shafts.

Cross-references National 99274, Timken KWK99274 and 4133536100 for the same application. See all 3.

$48.43Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $48.43
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Manual Transmission Repair Sleeve options

FAG SR3536 Manual Transmission Repair Sleeve

The FAG SR3536 repair sleeve is a precision stainless steel solution for restoring sealing surfaces on damaged shafts. It adds a new wear surface without shaft removal or machining, helping extend shaft life in manual transmission service.

  • Precision repair sleeve for damaged shaft sealing surfaces
  • Heat-treated stainless steel construction
  • Helps reduce premature wear on the shaft
  • Installed without shaft removal or machining
  • Fits shafts with a 2.75 in. diameter and 3.125 in. flange diameter
  • Width on shaft: 0.781 in.; installation depth: 1.25 in.; overall width: 0.938 in.

Detailed Application Overview

Built for transmission hardware repair, the FAG SR3536 is used where a worn or grooved shaft surface can compromise sealing performance. Its stainless steel construction and precise dimensions make it a practical repair option for manual transmission service, including Volkswagen Beetle rear applications listed for 1961-1979. The SR3536 is also cross-referenced to National 99274 and Timken KWK99274 for the same application.

What It Helps Fix

  • Oil leakage caused by a worn shaft sealing surface
  • Premature seal wear from grooves or scoring
  • Reduced sealing performance on damaged shafts
  • Costly shaft replacement when the shaft can be repaired in place
  • Downtime from machining or full shaft removal

Installation Notes

Measure the shaft before installation to confirm the 2.75 in. shaft diameter and 3.125 in. flange diameter match the repair area. The sleeve is installed over the damaged sealing surface and does not require machining of the shaft. For Volkswagen Beetle rear fitment, verify the shaft condition and seal contact area before assembly.

Quality Assurance

FAG manufactures precision drivetrain service components with a focus on dimensional accuracy and durable materials. The SR3536 uses heat-treated stainless steel to support long-term sealing performance in repair applications.

This part fits 19 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1979VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1978VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1977VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1976VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1975VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1974VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1973VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1972VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1971VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1970VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1969VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1968VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1967VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1966VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1965VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1964VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1963VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1962VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
1961VolkswagenBeetleRearSchaeffler Seal Global Number 413 3536 100; 3.756" O.D.
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
National — 99274Timken — KWK992744133536100
