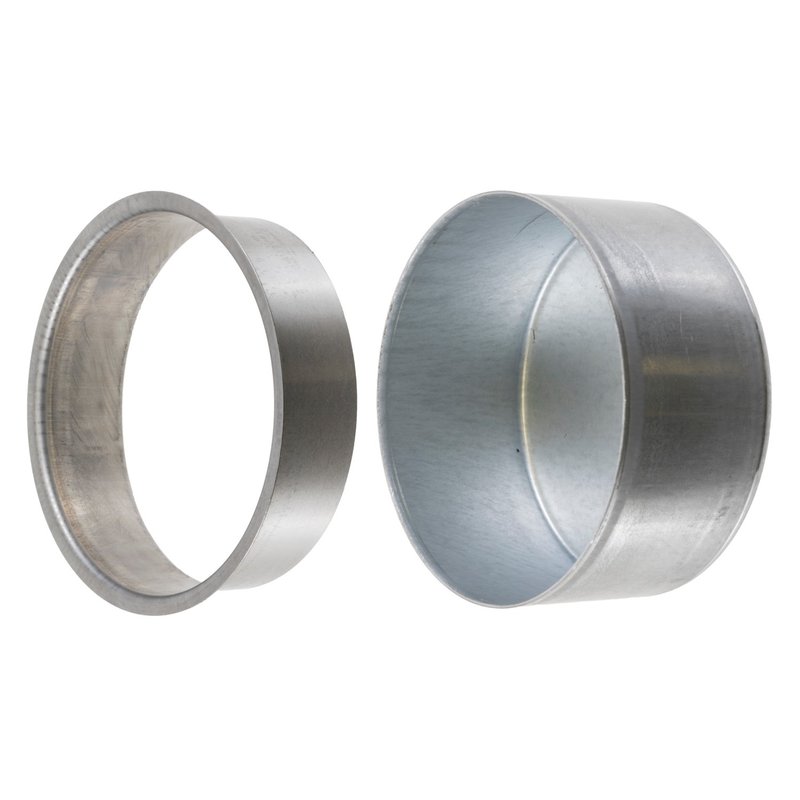

FAG SR3556 Engine Crankshaft Repair Sleeve - Rear

Overview of FAG Engine Crankshaft Repair Sleeve SR3556

The FAG SR3556 engine crankshaft repair sleeve is designed for precise restoration of crankshaft surfaces on select Audi, Dodge, Pontiac, Porsche, Ram, Toyota, and Volvo models. Engineered to exact specifications, this repair sleeve ensures reliable fitment and durability for professional engine repairs.

• Width on shaft: 0.827 inches (21.006 mm) and 0.984 inches (24.994 mm)
• Installation depth: 1.378 inches (35.001 mm)
• Shaft diameter compatibility: 3.342 inches (84.887 mm)
• Flange diameter: 3.7 inches (93.98 mm)
• Compatible with multiple vehicle makes and models including Audi A8 Quattro, Porsche Cayenne, Toyota Camry, and Volvo 740

Technical Details and Specifications

The SR3556 crankshaft repair sleeve from FAG is manufactured to restore worn or damaged crankshaft journals by providing a precise, durable surface for bearing contact. The sleeve features a width on shaft of approximately 0.827 to 0.984 inches, accommodating specific journal widths. Installation depth measures 1.378 inches, ensuring proper seating and alignment during repair. The shaft diameter compatibility of 3.342 inches allows for a secure fit on crankshafts with diameters near 84.887 mm. The flange diameter of 3.7 inches supports stable positioning within the engine assembly.

Compatible Vehicles and Applications

This repair sleeve is compatible with a range of vehicles, including:

• Audi models such as the A8 Quattro and 740 series
• Dodge Dart and Ram ProMaster City
• Pontiac Vibe
• Porsche Boxster and Cayenne
• Toyota Camry, Celica, Corolla, Matrix, MR2, Pickup, RAV4, and Solara
• Volvo 740, 745, and 760

Common Engine Issues Addressed

• Repair of worn or scored crankshaft journals
• Restoration of crankshaft surface for improved bearing fit
• Correction of minor crankshaft diameter inconsistencies
• Prevention of further engine damage due to crankshaft wear
• Extension of engine service life through precise repair

Installation Notes and Tips

Proper installation of the FAG SR3556 repair sleeve requires careful measurement of the crankshaft journal and cleaning of the surface before fitting. Ensure the installation depth of 1.378 inches is maintained for optimal seating. Use appropriate tools to press the sleeve evenly onto the shaft diameter of 3.342 inches to avoid damage. Follow manufacturer torque specifications and alignment procedures for the flange diameter of 3.7 inches to secure the sleeve correctly.

Quality Assurance and Warranty

FAG manufactures the SR3556 crankshaft repair sleeve to meet stringent quality standards, ensuring durability and precision fitment. While specific warranty details are not provided, FAG products are generally backed by industry-standard quality controls and testing to support reliable engine repairs.
