FAG SR3565 Engine Crankshaft Repair Sleeve - Rear

Engine Crankshaft Repair Sleeve for Toyota and Lexus

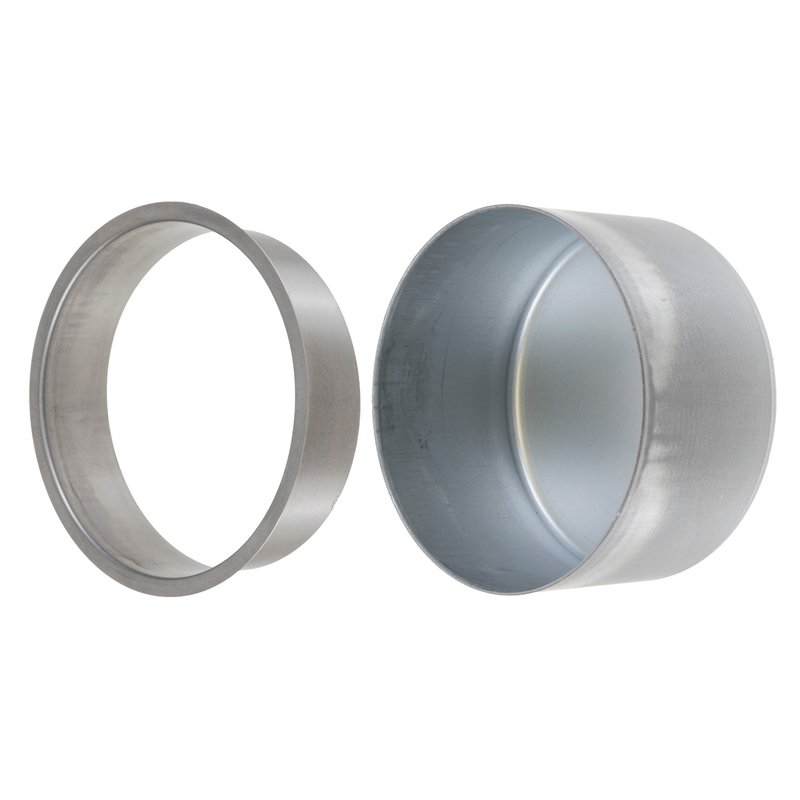

The FAG SR3565 repair sleeve restores sealing performance on worn or damaged shaft surfaces without removing the shaft for machining. Built from heat-treated stainless steel, it provides a precise sealing surface that helps extend shaft service life in demanding engine applications.

Fits a wide range of Toyota, Lexus, and Volvo applications, including rear-position and N/A-position listings across model years from 1983 through 2015. The SR3565 is a practical repair solution when crankshaft or shaft wear has affected seal performance.

Key Features

• Precision engine crankshaft repair sleeve for damaged shaft sealing surfaces
• Heat-treated stainless steel construction for durability
• Helps restore sealing without shaft removal or machining
• Width on shaft: 0.813 in. / 20.65 mm
• Installation depth: 1.75 in. / 44.45 mm
• Width: 1 in. / 25.4 mm
• Shaft diameter: 3.621 in. / 91.973 mm
• Flange diameter: 4.031 in. / 102.387 mm

Detailed Description

The FAG SR3565 is an engine crankshaft repair sleeve engineered to provide additional sealing on worn shaft surfaces. By creating a new sealing area over damaged metal, it helps reduce leakage and wear while avoiding the cost and downtime of shaft removal and machining. This makes it a direct repair option for vehicles such as the Toyota Camry, Toyota Avalon, Toyota Sienna, Lexus ES350, and Lexus RX350 where rear or N/A-position applications are listed.

This part cross-references Dorman - HELP 99360 and Timken KWK99360 for the same application. The SR3565 part number is also commonly referenced in repair catalogs as a Schaeffler seal application under global number 413 3565 100.

What It Helps Fix

• Oil leakage caused by a worn crankshaft sealing surface
• Premature seal wear from shaft grooving or scoring
• Repair costs associated with shaft replacement or machining
• Loss of sealing integrity on high-mileage engine shafts
• Repeat seal failure after prior repairs on the same shaft area

Installation Notes and Tips

Verify shaft diameter and installation depth before installation. The sleeve is sized for a 3.621-inch shaft diameter and a 1.75-inch installation depth, so proper measurement is important for a secure fit. Clean the shaft surface thoroughly before installing the sleeve, and confirm the seal rides on the new sleeve surface rather than the damaged area.

Compatible With: Fits 2007-2015 Lexus ES350, Rear; Fits 2013-2015 Lexus GS450h, Rear; Fits 2007-2011 Lexus GS450h, Rear; Fits 2007-2015 Lexus IS250, Rear; Fits 2006-2015 Lexus IS350, Rear; Fits 2006-2015 Toyota Camry, Rear; Fits 1996 Toyota Camry, Rear; Fits 2014-2015 Toyota Highlander, Rear; Fits 2004-2007 Toyota Highlander, Rear; Fits 2009-2015 Toyota Venza, Rear; Fits 1995-2014 Toyota Avalon, Rear; Fits 2007-2014 Toyota Sienna, Rear; Fits 1999-2003 Toyota Sienna, Rear; Fits 2007-2010 Lexus RX350, N/A; Fits 2004-2010 Toyota Highlander, N/A; Fits 2006-2010 Toyota RAV4, Rear; Fits 2006-2008 Lexus RX400h, N/A; Fits 2004-2008 Toyota Solara, Rear; Fits 2004-2006 Lexus ES330, N/A; Fits 2004-2006 Lexus RX330, N/A; Fits 1998-2006 Toyota Sienna, N/A; Fits 1993-2005 Lexus GS300, N/A; Fits 2000-2005 Toyota Tundra, N/A; Fits 1995-2004 Toyota Tacoma, Rear; Fits 2000-2004 Toyota Tundra, Rear; Fits 1992-2003 Lexus ES300, N/A; Fits 1999-2003 Lexus RX300, N/A; Fits 1988-2002 Toyota 4Runner, Rear; Fits 2000-2002 Toyota 4Runner, N/A; Fits 1996-2002 Toyota 4Runner, Rear; Fits 1996-1999 Toyota Tacoma, N/A; Fits 1995-1998 Toyota T100, Rear; Fits 1993-1998 Toyota T100, Rear; Fits 1988-1995 Toyota 4Runner, Rear; Fits 1988-1995 Toyota Pickup, Rear; Fits 1989-1995 Toyota Pickup, Rear; Fits 1993-1994 Toyota T100, Rear; Fits 1991-1993 Volvo 940, N/A; Fits 1985-1992 Volvo 740, N/A; Fits 1990-1991 Lexus ES250, Rear; Fits 1990-1991 Volvo 240, N/A; Fits 1987-1991 Volvo 780, N/A; Fits 1983-1990 Volvo 760, N/A; Fits 1984 Volvo DL, N/A; Fits 1984 Volvo GLE, N/A.

Quality Assurance

FAG is a recognized name in precision engine and sealing components, and this repair sleeve is manufactured as a heat-treated stainless steel service part for consistent fit and sealing performance.
