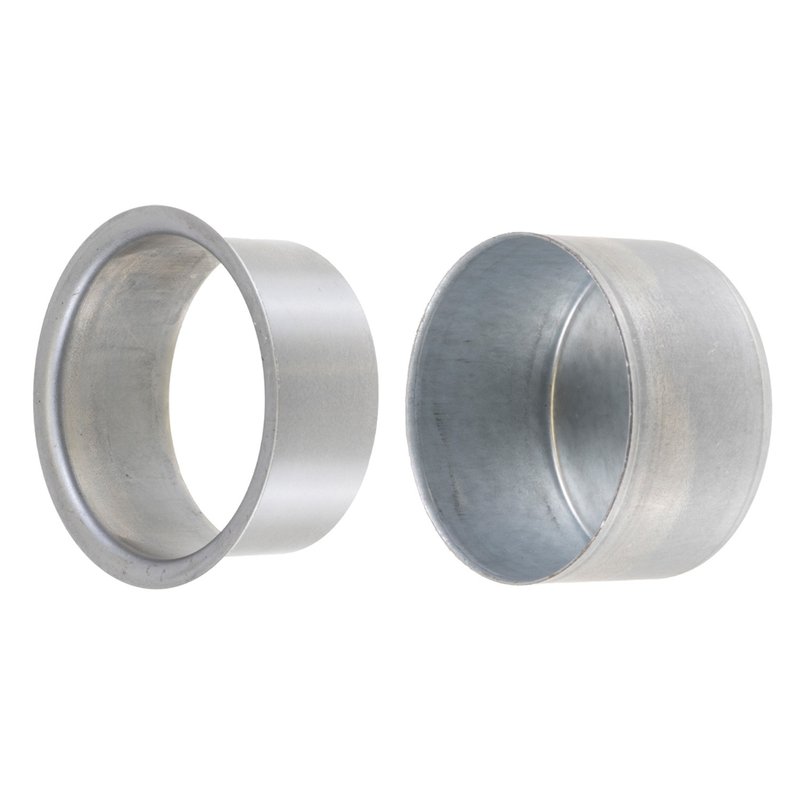

FAG SR4135 Engine Crankshaft Repair Sleeve - Rear

Overview of FAG SR4135 Engine Crankshaft Repair Sleeve

The FAG SR4135 Engine Crankshaft Repair Sleeve is engineered for precise restoration of crankshaft surfaces in various automotive engines. Designed to meet exacting specifications, this repair sleeve supports reliable engine performance in vehicles such as Audi A4, Volkswagen Golf, and Jeep Cherokee.

• Width on shaft dimensions: 0.399 inches (10.135 mm) and 0.499 inches (12.675 mm)
• Installation depth options: 1.431 inches (36.347 mm)
• Shaft diameter compatibility: 3.347 inches (85.014 mm)
• Flange diameter measurements: 3.58 inches (90.932 mm)
• Part number SR4135 for accurate identification and fitment

Technical Details and Specifications

The SR4135 crankshaft repair sleeve from FAG is manufactured to restore worn or damaged crankshaft journals by providing a durable, precision-fit surface. The sleeve features dual width measurements on the shaft, allowing for a secure fit and optimal sealing. Installation depth of approximately 1.431 inches ensures proper engagement with the crankshaft, while the shaft diameter of 3.347 inches matches OEM specifications for compatible engines. The flange diameter of 3.58 inches provides additional stability during operation. This part is designed for use in a range of vehicles including Audi 80 Quattro, Volkswagen Passat, and Jeep Renegade models.

Compatible Vehicles and Applications

This engine crankshaft repair sleeve is compatible with multiple makes and models, including but not limited to:

• Audi 80, 80 Quattro, 90, 90 Quattro, A4, A6, A8 Quattro
• Volkswagen Golf, Passat, Jetta, Corrado, Rabbit Pickup
• Jeep Cherokee, Renegade, Patriot
• Chrysler Sebring, Dodge Caliber, Avenger
• Hyundai Sonata, Santa Fe, Tucson

Use the FAG SR4135 to address crankshaft journal wear and restore engine integrity in these vehicles.

Common Issues Addressed by the SR4135 Repair Sleeve

• Crankshaft journal surface wear or scoring
• Oil leakage due to damaged crankshaft seals
• Reduced engine compression from worn crankshaft surfaces
• Vibration and noise caused by crankshaft misalignment
• Engine performance loss related to crankshaft damage

Installation Notes and Tips

Proper installation of the SR4135 repair sleeve requires careful measurement of the crankshaft journal and cleaning of the surface before fitting. Ensure the sleeve is pressed evenly to the specified installation depth of 1.431 inches to avoid misalignment. Use appropriate tools to avoid damage to the sleeve or crankshaft during installation. Verify fitment with the vehicle’s service manual for the specific make and model.

Quality Assurance and Warranty

FAG manufactures the SR4135 repair sleeve to meet stringent quality standards, ensuring durability and precision fit. While specific warranty details are not provided, FAG products typically adhere to industry standards for material and workmanship. This part is identified by GTIN 00670774332609 for traceability and authenticity.
