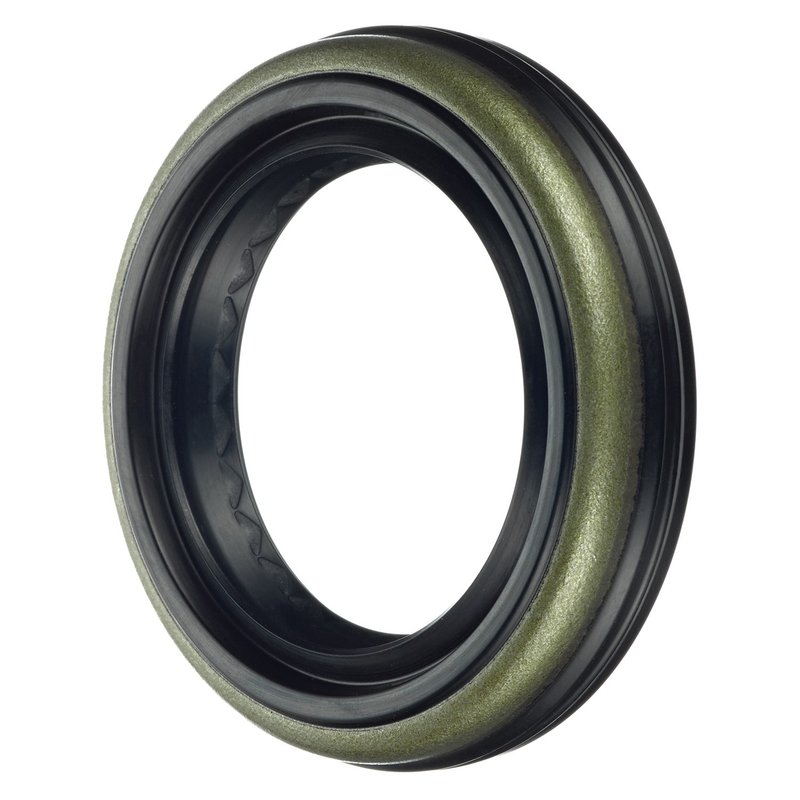

FAG SS2024 Wheel Seal - Front Outer, Rear or Rear Outer

Wheel Seal for Driveline Protection

FAG SS2024 is a wheel seal built for rear, front outer, rear outer, and front right applications across a wide range of vehicles. It uses nitrile sealing material with a rubber, spring, and auxiliary lip design to help keep wheel-end grease in place while blocking dirt, dust, and moisture.

With precise dimensions and OE-focused engineering, this wheel seal is a direct-fit service part for select Jeep Grand Cherokee, Jeep Cherokee, Jeep Wrangler, Ford Bronco, Pontiac GTO, and other listed applications. FAG SS2024 is specified for demanding wheel-end environments where sealing accuracy matters.

Key Features

• Part number: SS2024
• Wheel seal for driveline and axle service
• Nitrile sealing material for durable sealing performance
• Rubber, spring, and auxiliary lip seal type
• Bore diameter: 2.551 in. / 64.795 mm
• Seal outside diameter: 2.556 in. / 64.922 mm
• Seal width: 1.688 in. / 42.875 mm
• Bearing inside diameter: 2.75 in. / 69.85 mm

Detailed Description

FAG designs wheel seals to meet vehicle manufacturer specifications using materials selected for wheel-end service. This seal is engineered to protect bearings and related components from contamination while helping retain grease over the life of the bearing. The SS2024 dimensions make it important to verify axle and hub measurements before installation, especially on vehicles with Spicer 35, AMC 35, and 10-bolt cover configurations.

This part cross-references Bosch 16747 and National 2146 for the same application. It is a strong match for fitment searches such as Jeep Grand Cherokee rear wheel seal, Jeep Cherokee rear outer seal, and Ford Bronco front right wheel seal.

What It Helps Address

• Grease loss at the wheel end
• Dirt and dust intrusion into the bearing area
• Moisture contamination around axle and hub components
• Seal wear from age, heat, and road exposure
• Noise or roughness caused by compromised wheel-end sealing

Installation Notes and Tips

• Confirm bore diameter, seal outside diameter, and seal width before installation.
• Match the seal to the exact position listed for the vehicle: rear, front outer, rear outer, or front right.
• Inspect the bearing, hub, and axle surface for scoring or corrosion before fitting the new seal.
• Use clean installation practices to avoid damaging the sealing lip during assembly.
• Verify axle type and notes such as Spicer 35, AMC 35, or 10-bolt cover requirements where listed.

Quality Assurance

FAG wheel seals are engineered with supplier coordination to meet FAG quality standards and vehicle-specific requirements. The SS2024 is built for demanding wheel-end sealing applications where dimensional accuracy and material selection are critical.

• Fits 2005-2006 Jeep Grand Cherokee, Rear
• Fits 1999-2004 Jeep Grand Cherokee, Rear, w/Spicer 35 and 44 Axles; Schaeffler Seal Global Number 413 2024 100
• Fits 2002 Jeep Liberty, Rear, Spicer 35 axle; Schaeffler Seal Global Number 413 2024 100
• Fits 2000 Kia Sephia, Front Outer, To 06/01/2000; Schaeffler Seal Global Number 413 2024 100
• Fits 1994-1999 Kia Sephia, Front Outer, Schaeffler Seal Global Number 413 2024 100
• Fits 1987-1990 Ford Aerostar, Rear
• Fits 1988-1990 Jeep Cherokee, Rear Outer, Spicer 35 axle; Schaeffler Seal Global Number 413 2024 100
• Fits 1988-1990 Jeep Comanche, Rear Outer, Spicer 35 axle; Schaeffler Seal Global Number 413 2024 100
• Fits 1988-1990 Jeep Wagoneer, Rear Outer, Spicer 35 axle; Schaeffler Seal Global Number 413 2024 100
• Fits 1987-1989 Jeep Wrangler, Rear Outer, Spicer 35 axle; Schaeffler Seal Global Number 413 2024 100
• Fits 1985-1987 Hyundai Stellar, Rear
• Fits 1984-1987 Jeep Cherokee, Rear Outer, 35 and Spicer 35 Axles; Schaeffler Seal Global Number 413 2024 100
• Fits 1984-1987 Jeep Cherokee, Rear Outer, AMC 35,Spicer 35 Axles; Schaeffler Seal Global Number 413 2024 100
• Fits 1984-1987 Jeep Cherokee, Rear Outer, Schaeffler Seal Global Number 413 2024 100
• Fits 1986-1987 Jeep Comanche, Rear Outer, 35 and Spicer 35 Axles; Schaeffler Seal Global Number 413 2024 100
• Fits 1986-1987 Jeep Comanche, Rear Outer, Schaeffler Seal Global Number 413 2024 100
• Fits 1986-1987 Jeep Comanche, Rear Outer, AMC 35,Spicer 35 Axles; Schaeffler Seal Global Number 413 2024 100
• Fits 1984-1987 Jeep Grand Wagoneer, Rear Outer
• Fits 1984-1987 Jeep Wagoneer, Rear Outer, 35 and Spicer 35 Axles; Schaeffler Seal Global Number 413 2024 100
• Fits 1984-1987 Jeep Wagoneer, Rear Outer, Schaeffler Seal Global Number 413 2024 100
• Fits 1984-1987 Jeep Wagoneer, Rear Outer, AMC 35,Spicer 35 Axles; Schaeffler Seal Global Number 413 2024 100
• Fits 1980-1982 Ford Bronco, Front Right
• Fits 1980-1982 Ford F-250, Front Right
• Fits 1980-1982 Ford F-350, Front Right, Spicer
• Fits 1970-1972 Pontiac Firebird, Rear, 10 Bolt Cover; Schaeffler Seal Global Number 413 2024 100
• Fits 1970-1972 Pontiac Grand Prix, Rear, 10 Bolt Cover; Schaeffler Seal Global Number 413 2024 100
• Fits 1970-1972 Pontiac GTO, Rear, 10 Bolt Cover; Schaeffler Seal Global Number 413 2024 100
• Fits 1970-1972 Pontiac LeMans, Rear, 10 Bolt Cover; Schaeffler Seal Global Number 413 2024 100
• Fits 1970 Chevrolet Monte Carlo, Rear, w/Cut Out Cvr.; Schaeffler Seal Global Number 413 2024 100
• Fits 1970 Pontiac Tempest, Rear, 10 Bolt Cover; Schaeffler Seal Global Number 413 2024 100
• Fits 1969 Buick Skylark, Rear, w/o 12 Bolt Cvr.; Schaeffler Seal Global Number 413 2024 100
