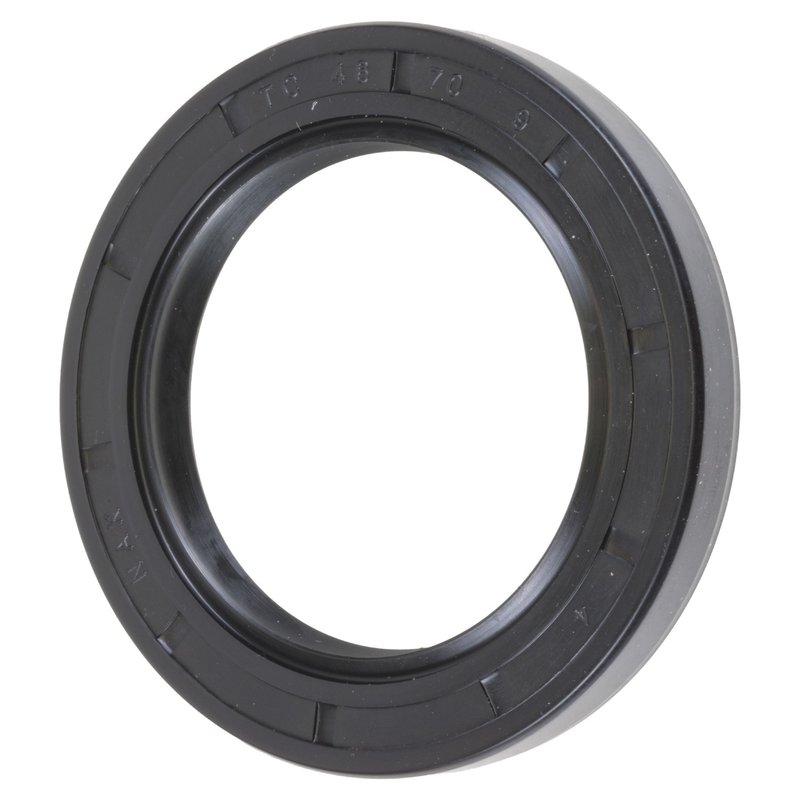

FAG SS2035 Wheel Seal - Front, Rear or Rear Outer

OE Quality 60-Day Returns

FAG SS2035 Wheel Seal - Front, Rear or Rear Outer

Brand	FAG SS2035
Position	Rear Outer, Rear, and Front
4053	1.89
4053	48.006
Bearing Inside Diameter	2.5
Bearing Inside Diameter	63.5
Seal Type	Rubber; spring; auxilary lip
Sealing Material	Polyacrylate
Bore Diameter	2.756
Bore Diameter	70.002
Seal Outside Diameter	2.762
Seal Outside Diameter	70.155
Seal Width	1.89
Seal Width	11.989
Fits	Chevrolet, Ford, Isuzu, and Mazda · 91 vehicles

OE-spec sealing. Built to meet vehicle manufacturer specifications for wheel end service.

Rubber seal design. Includes a spring and auxiliary lip for added sealing support.

Polyacrylate material. Selected for demanding wheel seal applications and grease retention.

Cross-references Gates 18873, National 1994 and 4132035100 for the same application. See all 3.

$20.13Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Wheel Seal options

Wheel Seal Overview

The FAG SS2035 wheel seal is built for wheel end sealing applications that require protection from contamination and grease loss. It is a fitment-based replacement for select Chevrolet, Mazda, Ford, and Isuzu applications, including Chevrolet LUV, Mazda B2000, and Ford Courier models.

Wheel seal for wheel end contamination control and grease retention.
Rubber seal design with spring and auxiliary lip for sealing support.
Polyacrylate sealing material for demanding wheel end service.
Dimensions listed for application matching: 2.5 in bearing inside diameter, 2.756 in bore diameter, 2.762 in seal outside diameter, and 1.89 in seal width.
Fits rear, rear outer, and front positions depending on the vehicle application.

Detailed Fitment and Design

FAG SS2035 is engineered to meet vehicle manufacturer specifications using high-quality materials selected for wheel seal service. The seal helps protect bearing and hub components from dirt, dust, and moisture while helping retain grease over the life of the bearing. This part number, SS2035, cross-references Gates 18873 and National 1994 for the same application.

Compatible applications include Fits 2001-2005 Chevrolet LUV, rear; Fits 1997-2000 Chevrolet LUV, rear; Fits 1987-1993 Mazda B2200, rear outer; Fits 1982-1984 Mazda B2200, rear outer; Fits 1987-1993 Mazda B2600, rear outer; Fits 1981-1987 Isuzu Pickup, rear outer; Fits 1986-1987 Mazda B2000, rear outer; Fits 1979-1984 Mazda B2000, rear outer; Fits 1972-1982 Ford Courier, rear outer; Fits 1981-1982 Ford Courier, rear; Fits 1972-1979 Ford Courier, rear; Fits 1979 Mazda B2000, rear; Fits 1977-1978 Mazda B1800, rear outer; Fits 1977-1978 Mazda B1800, rear; Fits 1972-1977 Mazda 808, rear; Fits 1974-1977 Mazda Rotary Pickup, rear outer; Fits 1972-1976 Mazda B1600, rear; Fits 1972-1976 Mazda B1600, rear outer; Fits 1973 Mazda 618, front; Fits 1972 Mazda 616, front; Fits 1972 Mazda 618, rear; Fits 1971 Mazda 616, rear.

Common Uses

Replacing a worn wheel seal that allows grease to escape.
Addressing contamination from dirt, dust, or moisture at the wheel end.
Restoring sealing performance on serviceable hub and bearing assemblies.
Matching a specific rear, rear outer, or front seal application by dimensions and fitment.

Installation Notes

Verify the bearing inside diameter, bore diameter, seal outside diameter, and seal width before installation. Confirm the exact vehicle position and application notes, since the required seal varies by vehicle class and mounting location. Use the fitment data for the specific Chevrolet LUV, Mazda B2000, Mazda B2200, Mazda B2600, Ford Courier, Isuzu Pickup, Mazda B1800, Mazda 808, Mazda Rotary Pickup, Mazda B1600, Mazda 618, and Mazda 616 applications listed above.

Quality Assurance

FAG designs wheel seals to meet manufacturer specifications and quality standards established with its suppliers. The SS2035 is built for demanding wheel end sealing requirements and application-specific service.

This part fits 91 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Position	Notes
2005	Chevrolet	LUV	—	—	Rear	Schaeffler Seal Global Number 413 2035 100
2004	Chevrolet	LUV	—	—	Rear	Schaeffler Seal Global Number 413 2035 100
2003	Chevrolet	LUV	—	—	Rear	Schaeffler Seal Global Number 413 2035 100
2002	Chevrolet	LUV	—	—	Rear	Schaeffler Seal Global Number 413 2035 100
2001	Chevrolet	LUV	—	—	Rear	Schaeffler Seal Global Number 413 2035 100
2000	Chevrolet	LUV	—	—	Rear	—
1999	Chevrolet	LUV	—	—	Rear	—
1998	Chevrolet	LUV	—	—	Rear	—
1997	Chevrolet	LUV	—	—	Rear	—
1993	Mazda	B2200	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1993	Mazda	B2600	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1992	Mazda	B2200	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1992	Mazda	B2600	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1991	Mazda	B2200	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1991	Mazda	B2600	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1990	Mazda	B2200	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1990	Mazda	B2600	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1989	Mazda	B2200	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1989	Mazda	B2600	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1988	Mazda	B2200	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1988	Mazda	B2600	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1987	Isuzu	Pickup	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1987	Mazda	B2000	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1987	Mazda	B2200	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1987	Mazda	B2600	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1986	Isuzu	Pickup	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1986	Mazda	B2000	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1985	Isuzu	Pickup	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1984	Isuzu	Pickup	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1984	Mazda	B2000	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1984	Mazda	B2200	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1983	Isuzu	Pickup	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1983	Mazda	B2000	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1983	Mazda	B2200	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1982	Ford	Courier	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1982	Ford	Courier	2.0L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1982	Isuzu	Pickup	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1982	Mazda	B2000	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1982	Mazda	B2200	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1981	Ford	Courier	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1981	Ford	Courier	2.0L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1981	Isuzu	Pickup	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1981	Mazda	B2000	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1980	Ford	Courier	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1980	Mazda	B2000	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1979	Ford	Courier	2.0L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1979	Ford	Courier	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1979	Mazda	B2000	2.0L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1979	Mazda	B2000	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1978	Ford	Courier	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1978	Ford	Courier	1.8L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1978	Mazda	B1800	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1978	Mazda	B1800	1.8L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1977	Ford	Courier	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1977	Ford	Courier	1.8L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1977	Mazda	808	1.6L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1977	Mazda	B1800	1.8L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1977	Mazda	B1800	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1977	Mazda	Rotary Pickup	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1976	Ford	Courier	1.8L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1976	Ford	Courier	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1976	Mazda	808	1.6L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1976	Mazda	B1600	1.6L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1976	Mazda	B1600	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1976	Mazda	Rotary Pickup	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1975	Ford	Courier	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1975	Ford	Courier	1.8L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1975	Mazda	808	1.6L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1975	Mazda	B1600	1.6L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1975	Mazda	B1600	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1975	Mazda	Rotary Pickup	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1974	Ford	Courier	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1974	Ford	Courier	1.8L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1974	Mazda	808	1.6L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1974	Mazda	B1600	1.6L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1974	Mazda	B1600	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1974	Mazda	Rotary Pickup	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1973	Ford	Courier	1.8L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1973	Ford	Courier	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1973	Mazda	618	1.8L	L4	Front	—
1973	Mazda	808	1.6L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1973	Mazda	B1600	1.6L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1973	Mazda	B1600	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1972	Ford	Courier	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1972	Ford	Courier	1.8L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1972	Mazda	616	1.6L	L4	Front	—
1972	Mazda	618	1.8L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1972	Mazda	808	1.6L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1972	Mazda	B1600	—	—	Rear Outer	Schaeffler Seal Global Number 413 2035 100
1972	Mazda	B1600	1.6L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
1971	Mazda	616	1.6L	L4	Rear	Schaeffler Seal Global Number 413 2035 100
No rows match your filter.

Directly replaces or cross-references 3 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Gates — 18873National — 19944132035100
