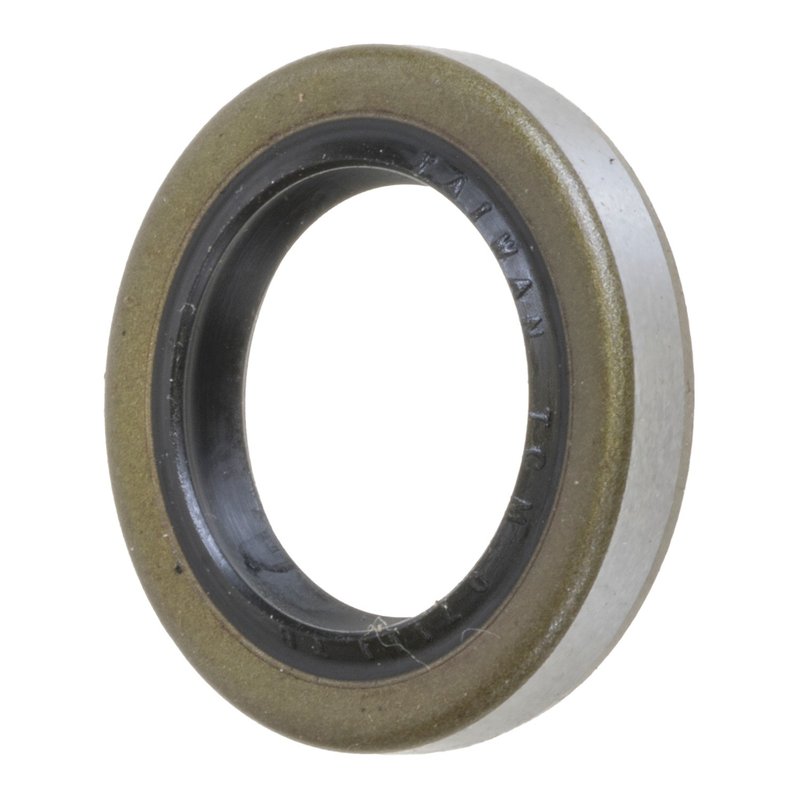

FAG SS2153 Transfer Case Shift Shaft Seal

Overview of FAG Transfer Case Shift Shaft Seal SS2153

The FAG SS2153 Transfer Case Shift Shaft Seal is engineered to provide reliable sealing performance for transfer cases in various vehicle makes and models. Designed with durable nitrile sealing material and a metal spring auxiliary lip, this seal ensures effective protection against leaks and contamination.

• Seal Type: Metal with spring and auxiliary lip for enhanced sealing
• Sealing Material: High-quality nitrile for resistance to oil and wear
• Bore Diameter: 1.124 inches (28.55 mm)
• Seal Outside Diameter: 1.129 inches (28.677 mm)
• Seal Width: 0.75 inches (4.75 mm)

Technical Details and Specifications

The SS2153 transfer case shift shaft seal features a precise bore diameter of 1.124 inches (28.55 mm) and an outside diameter of 1.129 inches (28.677 mm), ensuring a tight fit within the transfer case assembly. The seal width of 0.75 inches (4.75 mm) provides adequate surface area for effective sealing. Constructed with a metal casing and spring auxiliary lip, this seal maintains consistent pressure against the shaft, preventing fluid leaks and ingress of dirt or debris. The nitrile sealing material offers excellent resistance to automotive fluids and temperature variations, making it suitable for demanding transfer case environments.

Applications and Problem Solving

This transfer case shift shaft seal is compatible with a range of vehicle makes and models requiring a 1.124-inch bore diameter seal. It is commonly used in transfer cases to address issues such as:

• Preventing transfer case fluid leaks around the shift shaft
• Reducing contamination from dirt and moisture entering the transfer case
• Maintaining proper lubrication within the transfer case assembly
• Minimizing wear on the shift shaft and surrounding components
• Ensuring smooth transfer case operation and shifting performance

Installation Notes and Tips

When installing the FAG SS2153 transfer case shift shaft seal, ensure the transfer case housing and shaft are clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip or metal casing. Verify the seal orientation matches the original part to maintain proper sealing function. It is recommended to inspect the shift shaft for wear or damage before installation and replace if necessary to prevent premature seal failure.

Quality Assurance and Warranty

FAG manufactures the SS2153 transfer case shift shaft seal to meet stringent automotive standards, ensuring durability and reliable performance. The use of nitrile sealing material and metal spring auxiliary lip contributes to long service life under typical operating conditions. While specific warranty details may vary, FAG products generally come with manufacturer-backed quality assurance to support professional automotive repairs.
