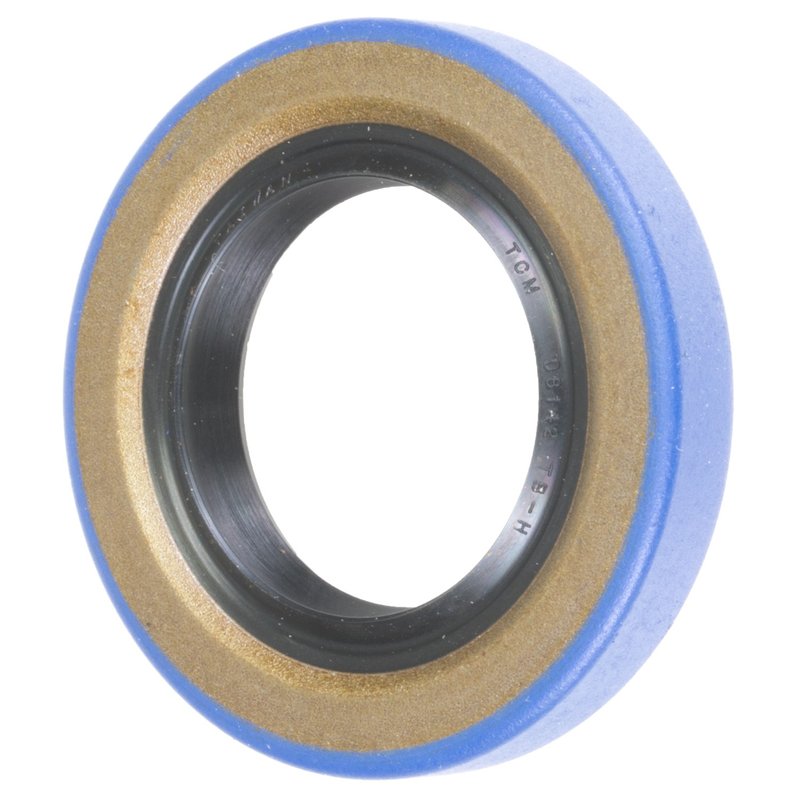

FAG SS2190 Manual Transmission Shift Shaft Seal

Reliable Manual Transmission Shift Shaft Seal for Accurate Sealing

The FAG SS2190 manual transmission shift shaft seal is engineered to provide precise sealing performance for various vehicle makes and models. Designed with durable nitrile sealing material and a metal spring construction, this seal ensures long-lasting protection against leaks and contamination.

• Seal Type: Metal with spring for secure fit and durability
• Sealing Material: Nitrile for resistance to oil and wear
• Bore Diameter: 1.499 inches (38.075 mm)
• Seal Outside Diameter: 1.503 inches (38.176 mm)
• Seal Width: 0.875 inches (7.95 mm)

Technical Details and Material Specifications

The SS2190 shift shaft seal features a metal spring design that maintains consistent pressure on the sealing lip, preventing fluid leaks in manual transmission systems. The nitrile sealing material offers excellent resistance to transmission fluids, heat, and mechanical wear, making it suitable for demanding automotive environments. With precise bore and outside diameters, this seal fits tightly around the shift shaft to maintain transmission integrity.

Applications and Common Issues Addressed

• Prevents manual transmission fluid leaks around the shift shaft
• Reduces contamination ingress that can cause premature transmission wear
• Maintains proper sealing pressure to avoid shifting issues
• Replaces worn or damaged seals in manual transmission assemblies
• Helps restore transmission performance and reliability

Installation Notes and Tips

When installing the FAG SS2190 seal, ensure the transmission shift shaft and bore are clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip or spring. Verify correct orientation of the seal to maintain optimal sealing performance. Consult vehicle-specific service manuals for torque specifications and installation procedures.

Quality Assurance and Warranty Information

FAG manufactures the SS2190 manual transmission shift shaft seal to meet strict quality standards, ensuring consistent performance and durability. The seal is produced with high-grade nitrile material and precision metal components. While specific warranty details are not provided, FAG products typically adhere to industry quality controls and reliability benchmarks.
