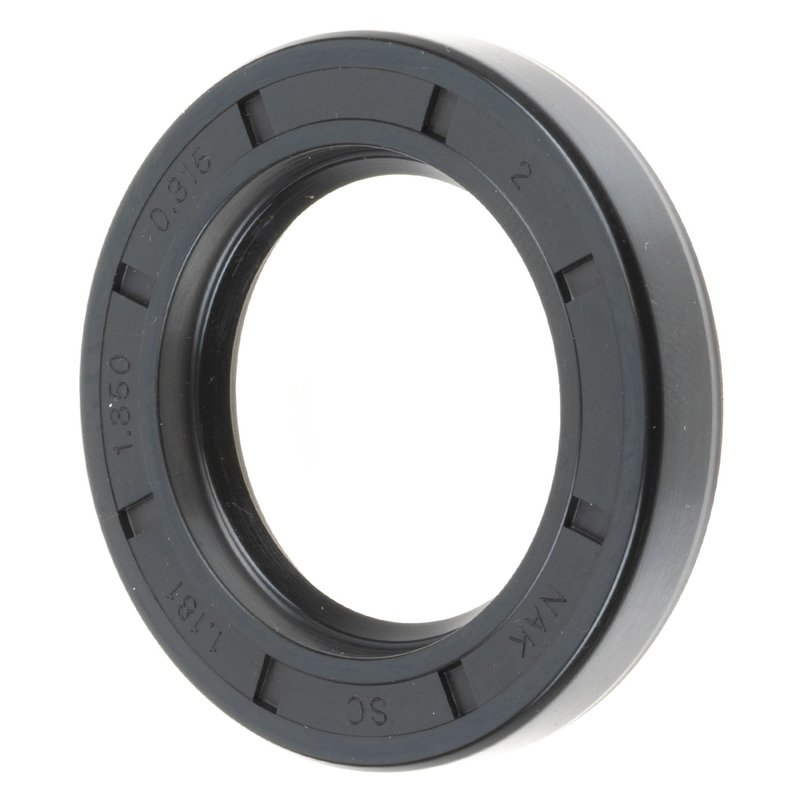

FAG SS2283 Manual Transmission Seal - Front or Rear

Overview of FAG SS2283 Manual Transmission Seal

The FAG SS2283 manual transmission seal is engineered for reliable sealing performance in select BMW, Mazda, Mercedes-Benz, and Volvo models. Designed with nitrile sealing material and a rubber spring seal type, this part ensures effective protection against leaks in manual transmission systems.

• Seal Type: Rubber with spring for consistent tension
• Sealing Material: Durable nitrile compound
• Bore Diameter: 1.85 inches (46.99 mm)
• Seal Outside Diameter: 1.859 inches (47.219 mm)
• Seal Width: 1.181 inches (7.01 mm)

Technical Details and Specifications

The SS2283 manual transmission seal from FAG features a precise bore diameter of 1.85 inches (46.99 mm) and an outside diameter of 1.859 inches (47.219 mm), providing a tight fit for the transmission housing. The seal width measures 1.181 inches (7.01 mm), ensuring adequate surface contact to prevent fluid leakage. Constructed from nitrile, the sealing material offers resistance to oils and transmission fluids, while the rubber spring design maintains consistent pressure around the shaft for long-lasting sealing integrity.

Compatible Vehicles and Applications

This manual transmission seal is compatible with various models including BMW 318i, 300D, and 300SEL, Mazda B3000, B4000, and Navajo, Mercedes-Benz 850, and Volvo 940 and 960. The part number SS2283 is specifically designed to meet the sealing requirements of these vehicles' manual transmissions, helping maintain optimal performance and prevent transmission fluid leaks.

• Prevents manual transmission fluid leaks
• Maintains proper sealing pressure under operating conditions
• Protects transmission components from contamination
• Reduces wear caused by fluid loss or ingress of dirt

Installation Notes and Tips

When installing the FAG SS2283 manual transmission seal, ensure the transmission housing and shaft surfaces are clean and free of debris. Use appropriate tools to avoid damaging the seal during installation. Verify the seal orientation matches the original part to maintain proper sealing function. Lubricate the seal lip with transmission fluid before installation to reduce initial wear and facilitate a smooth fit.

Quality Assurance and Warranty

FAG manufactures the SS2283 manual transmission seal to meet strict quality standards, ensuring durability and reliable sealing performance. The use of nitrile material and rubber spring design reflects FAG's commitment to producing components that withstand typical transmission operating conditions. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
