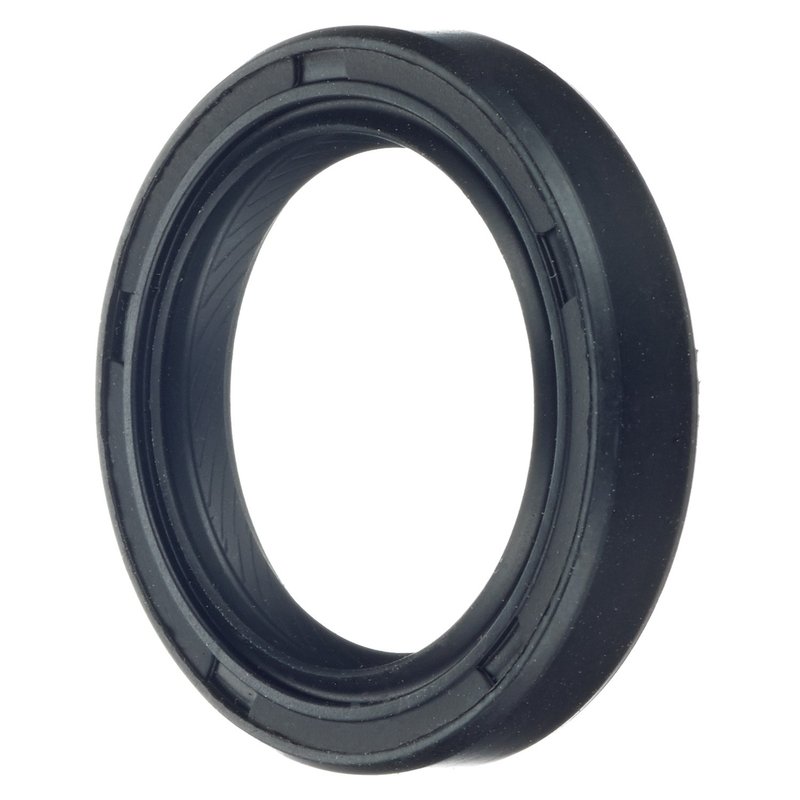

FAG SS2292 Manual Transmission Seal - Front

Reliable Manual Transmission Seal for BMW, Chevrolet, Dodge, and More

The FAG SS2292 manual transmission seal is engineered to provide durable sealing performance for a range of vehicles including BMW 318i, 320i, 528i, 530i, Chevrolet 3000GT, and Ford Explorer. Designed with nitrile sealing material and a rubber spring seal type, this part ensures effective protection against leaks and contamination.

• Seal Type: Rubber with spring for secure fit
• Sealing Material: Durable nitrile for resistance to oils and heat
• Bore Diameter: 1.654 inches (42.012 mm)
• Seal Outside Diameter: 1.661 inches (42.189 mm)
• Seal Width: 1.181 inches (7.01 mm)

Technical Details and Specifications

The FAG SS2292 manual transmission seal features precise dimensions critical for maintaining transmission integrity. The bore diameter measures 1.654 inches (42.012 mm), while the outside diameter is 1.661 inches (42.189 mm), ensuring a tight and reliable fit. The seal width of 1.181 inches (7.01 mm) provides adequate surface area for effective sealing. Constructed from nitrile, the sealing material offers excellent resistance to petroleum-based fluids and high temperatures commonly found in manual transmissions. The rubber spring design maintains consistent pressure against the shaft, preventing leaks and extending the service life of the transmission components.

Compatible Vehicles and Applications

This manual transmission seal is compatible with a variety of makes and models, including:

• BMW 318i, 320i, 528i, 530i
• Chevrolet 3000GT
• Dodge Stealth
• Ford Aerostar, Bronco II, Explorer, Ranger
• Isuzu Hombre, LUV
• Mitsubishi Diamante, 3000GT, Stealth

It is designed to replace worn or damaged seals in manual transmissions, helping to prevent fluid leaks and maintain optimal transmission performance.

Common Issues Addressed by the SS2292 Seal

• Prevents manual transmission fluid leaks
• Reduces contamination ingress into transmission components
• Maintains proper lubrication within the transmission
• Minimizes wear on transmission shafts and bearings
• Helps avoid costly transmission repairs due to seal failure

Installation Notes and Tips

When installing the FAG SS2292 manual transmission seal, ensure the transmission housing and shaft are clean and free of debris. Use appropriate tools to avoid damaging the seal during installation. Verify the seal orientation matches the original part to maintain proper sealing function. It is recommended to inspect related transmission components for wear or damage during replacement.

Quality Assurance and Warranty

FAG is a recognized brand in automotive sealing solutions, known for precision manufacturing and material quality. The SS2292 manual transmission seal is produced to meet OEM specifications for fit and function. While specific warranty details are not provided, FAG products typically adhere to industry standards for durability and reliability.
