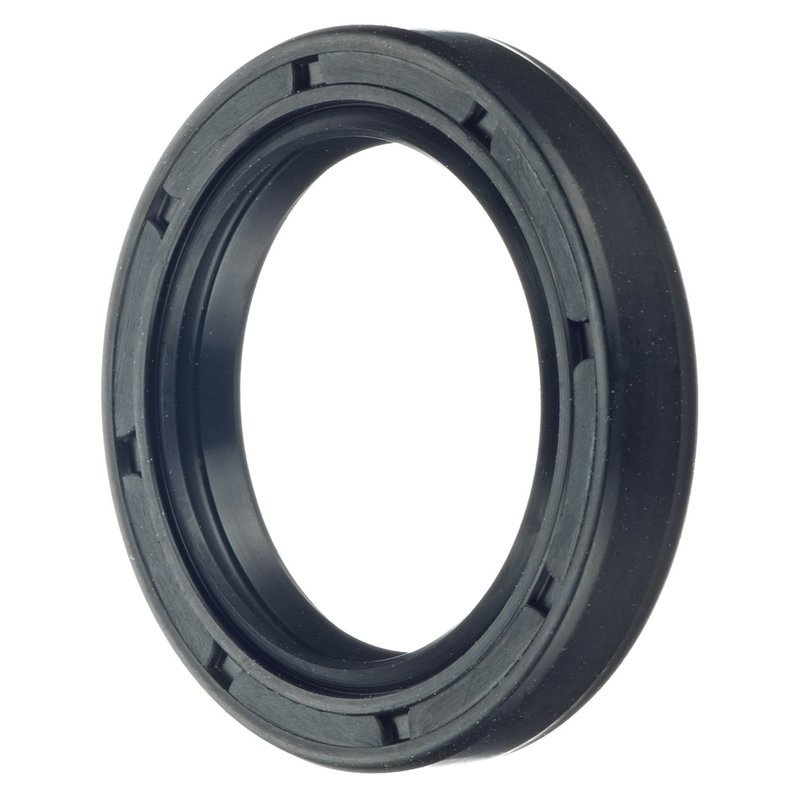

FAG SS2295 Manual Transmission Seal - Front or Rear

Overview of FAG SS2295 Manual Transmission Seal

The FAG SS2295 manual transmission seal is engineered to provide reliable sealing performance for select Chevrolet, Hyundai, Kia, Pontiac, and Suzuki models. Designed with nitrile sealing material and a rubber spring auxiliary lip, this seal ensures effective protection against leaks and contamination in manual transmissions.

• Seal Type: Rubber with spring and auxiliary lip for enhanced sealing
• Sealing Material: Durable nitrile compound resistant to oil and heat
• Bore Diameter: 42.012 mm (1.654 inches)
• Seal Outside Diameter: 42.139 mm (1.659 inches)
• Seal Width: 8.001 mm (1.181 inches)

Technical Details and Specifications

The SS2295 manual transmission seal features a precise bore diameter of 42.012 mm and an outside diameter of 42.139 mm, ensuring a tight fit within the transmission housing. Its 8.001 mm width provides a robust sealing surface to prevent fluid leakage. The rubber seal incorporates a spring and auxiliary lip design, which maintains consistent pressure against the shaft, improving durability and sealing efficiency. The nitrile sealing material offers resistance to common transmission fluids and temperature variations, making it suitable for use in various manual transmission systems.

Compatible Vehicles and Applications

This manual transmission seal is compatible with a range of vehicles, including Chevrolet Aveo and Aveo5, Hyundai G3, Magentis, Santa Fe, Sonata, and Tucson, Kia Sportage, and Pontiac Wave and Wave5, as well as Suzuki Swift+. The part number SS2295 is specifically designed to meet the sealing requirements of these models, ensuring proper fitment and function.

• Prevents manual transmission fluid leaks
• Protects transmission internals from dirt and contaminants
• Maintains optimal transmission performance and longevity
• Reduces risk of premature wear on transmission components

Installation Notes and Tips

When installing the FAG SS2295 manual transmission seal, ensure the transmission housing and shaft surfaces are clean and free of debris. Use appropriate tools to avoid damaging the seal during installation. Verify the seal orientation, with the auxiliary lip facing the fluid side, to maintain proper sealing. Lubricate the seal with transmission fluid before installation to reduce friction and facilitate a smooth fit.

Quality Assurance and Warranty

FAG manufactures the SS2295 manual transmission seal to meet stringent quality standards, using high-grade nitrile material and precision molding techniques. This part is designed for durability and consistent performance under typical operating conditions. While specific warranty details are not provided, FAG products generally adhere to industry standards for reliability and material quality.
