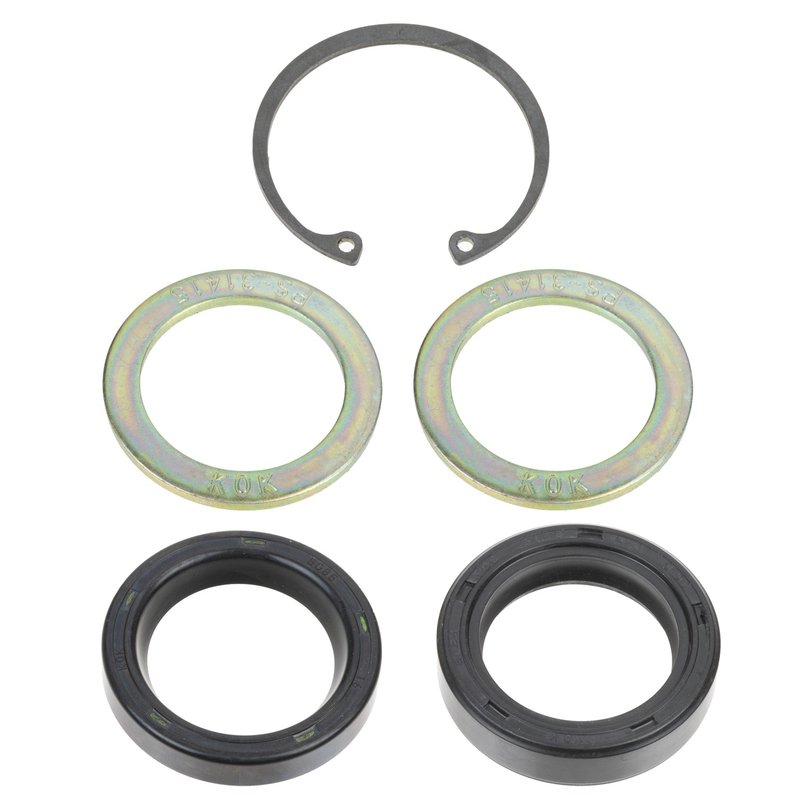

FAG SS2314 Steering Gear Pitman Shaft Seal Kit

Steering Gear Pitman Shaft Seal Kit

The FAG SS2314 steering gear pitman shaft seal kit is built for steering gear service where sealing accuracy matters. It uses a metal seal type with nitrile sealing material to help maintain a tight seal at the pitman shaft and protect steering components from contamination.

With precise dimensions and OE-focused engineering, this seal kit is a direct-fit solution for many classic GM, Ford, Dodge, and Jeep steering gear applications, including Chevrolet P30, GMC P3500, and Jeep CJ7 platforms.

Key Features

• Part number SS2314 for steering gear pitman shaft service
• Metal seal type with nitrile sealing material
• Bore diameter: 1.752 in. / 44.501 mm
• Seal outside diameter: 1.759 in. / 44.679 mm
• Seal width: 1.25 in. / 24.587 mm
• Engineered to help keep dirt, dust, and moisture out of steering gear components
• Helps retain grease and support long-term bearing and seal performance

Detailed Description

FAG SS2314 is a steering gear pitman shaft seal kit designed around demanding sealing requirements for steering systems. The nitrile sealing material is selected for dependable sealing performance, while the metal seal construction supports a secure fit in the steering gear housing. This part cross-references Four Seasons 12392 and Timken PSK1 for the same application.

Compatible With applications such as 1975-1999 Chevrolet P30, 1992-1999 GMC P3500, 1985-1997 Chevrolet Astro, 1985-1997 GMC Safari, and 1974-1986 Jeep Cherokee. It also serves many other Chevrolet, GMC, Cadillac, Buick, Oldsmobile, Pontiac, Dodge, Ford, and Jeep steering gear setups listed in the fitment data. For buyers searching for a steering gear pitman shaft seal kit for classic truck and van steering service, SS2314 is a relevant OE-style replacement.

What It Helps Address

• Steering gear fluid leakage at the pitman shaft
• Contamination from road dirt, dust, and moisture
• Grease loss inside steering gear components
• Seal wear in high-mileage steering boxes
• Service needs on older GM, Ford, Dodge, and Jeep steering systems

Installation Notes and Tips

Verify steering gear type, housing dimensions, and application notes before installation. Match the bore diameter, outside diameter, and seal width to the original seal specification. Clean the steering gear bore and shaft surface thoroughly before assembly, and inspect the pitman shaft for wear, scoring, or corrosion that could affect sealing performance. Confirm the vehicle-specific notes for gear type and suspension configuration where listed.

Quality Assurance

FAG designs seals using high-quality materials and application-specific specifications to meet vehicle manufacturer requirements. The SS2314 is built to FAG quality standards for steering gear sealing service and is engineered for the demanding conditions found in wheel-end and steering applications.
