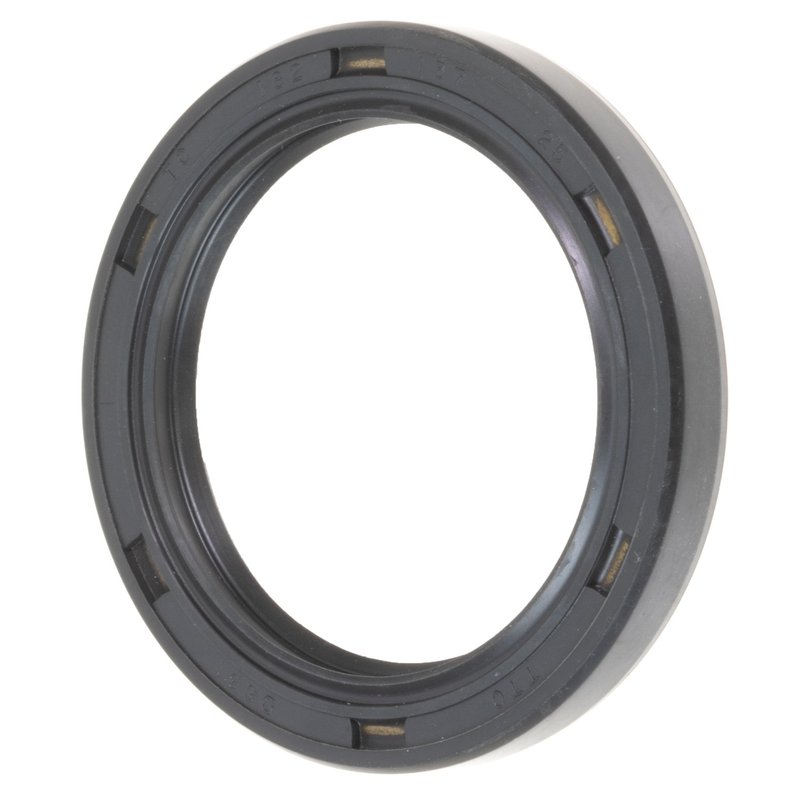

FAG SS2390 Steering Gear Pitman Shaft Seal - Inner

Overview of FAG Steering Gear Pitman Shaft Seal SS2390

The FAG SS2390 Steering Gear Pitman Shaft Seal is engineered for reliable sealing performance in steering systems. Designed specifically for Chrysler and Ford vehicles, including models like the F-100, F-250, F-350, Imperial, Newport, New Yorker, and Town & Country, this seal ensures effective protection against leaks and contaminants.

• Seal Type: Rubber with spring and auxiliary lip for enhanced sealing
• Sealing Material: Durable nitrile compound
• Bore Diameter: 1.828 inches (46.431 mm)
• Seal Outside Diameter: 1.832 inches (46.533 mm)
• Seal Width: 1.375 inches (7.95 mm)

Technical Details and Specifications

The SS2390 steering gear pitman shaft seal features a nitrile sealing material known for its resistance to oils and wear, making it suitable for the demanding environment of steering gear assemblies. The rubber seal incorporates a spring and auxiliary lip design to maintain consistent pressure and prevent fluid leakage. With precise bore and outside diameters of approximately 1.828 inches and 1.832 inches respectively, and a seal width of 1.375 inches, this part fits tightly within the steering gear housing to provide a secure seal.

Compatible Vehicles and Applications

This steering gear pitman shaft seal is compatible with a range of Chrysler and Ford vehicles, including:

• Ford F-100, F-250, and F-350 trucks
• Chrysler Imperial, Newport, New Yorker, and Town & Country models

It is designed to replace worn or damaged seals in these models, helping maintain steering system integrity and performance.

Common Issues Addressed by the SS2390 Seal

• Prevents steering fluid leaks that can cause steering difficulty
• Protects steering gear components from dirt and debris contamination
• Reduces premature wear of steering gear shafts
• Maintains hydraulic pressure within the steering system
• Helps avoid costly steering system repairs due to seal failure

Installation Notes and Tips

• Ensure the steering gear housing and shaft are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Verify correct orientation of the seal with the spring and auxiliary lip facing the fluid side
• Check for proper fitment by confirming bore and outside diameters match the steering gear specifications
• Consult vehicle service manual for torque specifications and installation procedures

Quality Assurance and Warranty

FAG manufactures the SS2390 steering gear pitman shaft seal to meet strict quality standards, using nitrile material for durability and resistance to automotive fluids. While specific warranty details are not provided, FAG products typically adhere to industry standards for reliability and performance. Proper installation and maintenance will help ensure long service life of this seal in compatible Chrysler and Ford vehicles.
